Name: Active Anti-Roll Bar System (Rear, ARC Pipes) (5.0 Petrol AJ133 DOHC CDA, With ACE Suspension, 4.4L DOHC DITC V8 Diesel, 5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) TOJA999999)
Rating: 4.5 (1 reviews)

Active Anti-Roll Bar System (Rear, ARC Pipes) (5.0 Petrol AJ133 DOHC CDA, With ACE Suspension, 4.4L DOHC DITC V8 Diesel, 5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) TOJA999999) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Active Anti-Roll Bar System (Rear, ARC Pipes) (5.0 Petrol AJ133 DOHC CDA, With ACE Suspension, 4.4L...

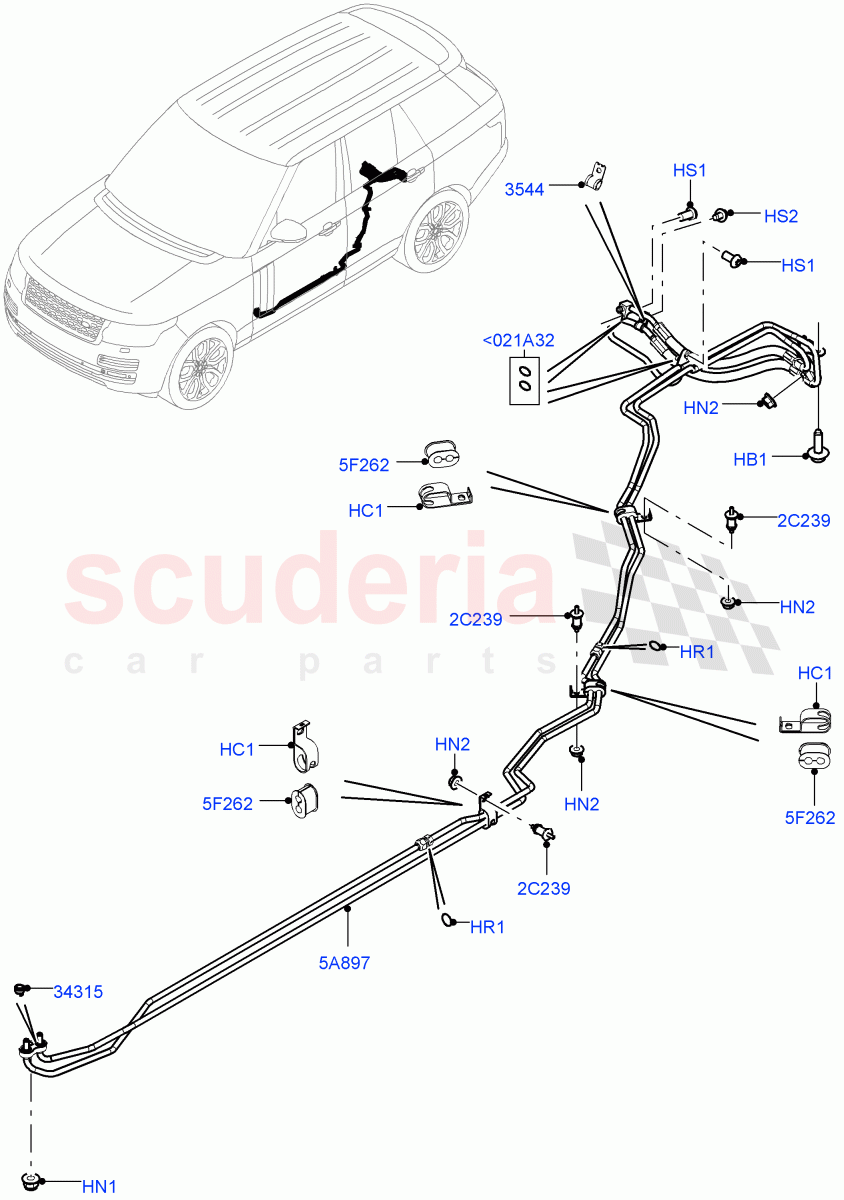

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR025399	BOLT	$1.92	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR6702	CLIP	$48.57	To Order

Photo	Part No	Description	Price (each)	Stock
	FY108046	NUT M8 FLANGED HEX HEAD	$1.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR052806	O-RING	$20.37	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500060	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	FA106126	SCREW	$0.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR052695	CLAMP - TUBE	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038632	INSULATOR - ARB PIPE	$26.18	To Order

Photo	Part No	Description	Price (each)	Stock
	RQR500010	COLLET - ARB PIPE	$11.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR035473	TUBE - ACTIVE ROLL BAR SYSTEM	$417.65	To Order
	LR085489	TUBE - ACTIVE ROLL BAR SYSTEM	$603.44	IN STOCK
	LR085489	TUBE - ACTIVE ROLL BAR SYSTEM	$603.44	IN STOCK

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ANR6704	MOUNTING - RUBBER	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085487	KIT - SEAL	$10.04	IN STOCK
	LR085487	KIT - SEAL	$10.04	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<021A32	LR085487	KIT - SEAL IN STOCK	LR085487 KIT - SEAL Includes Backup Ring / To: GA270941 IN STOCK	$10.04	2
<021A32	LR085487	KIT - SEAL IN STOCK	LR085487 KIT - SEAL Includes Backup Ring / From: GA270942 IN STOCK	$10.04	2
HB1	LR025399	BOLT	LR025399 BOLT HEX Flange, M8 X 25MM	$1.92	1
HC1	ANR6702	CLIP	ANR6702 CLIP Double	$48.57	3
HN1	FY108046	NUT M8 FLANGED HEX HEAD IN STOCK	FY108046 NUT M8 FLANGED HEX HEAD HEX Flange, M8 IN STOCK	$1.13	1
HN2	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.45	4
HR1	LR052806	O-RING	LR052806 O-RING ARC Pipes	$20.37	2
HS1	RYP500060	SCREW	RYP500060 SCREW M8 X 16MM, Torx	$0.76	2
HS2	FA106126	SCREW IN STOCK	FA106126 SCREW HEX Flange, Hexagonal Head, M6 x 12MM IN STOCK	$0.45	1
2C239	LR038632	INSULATOR - ARB PIPE	LR038632 INSULATOR - ARB PIPE	$26.18	3
5A897	LR035473	TUBE - ACTIVE ROLL BAR SYSTEM	LR035473 TUBE - ACTIVE ROLL BAR SYSTEM ARC Pipes / To: DA124289	$417.65	1
5A897	LR085489	TUBE - ACTIVE ROLL BAR SYSTEM IN STOCK	LR085489 TUBE - ACTIVE ROLL BAR SYSTEM ARC Pipes / From: DA124290 / To: EA131721 IN STOCK	$603.44	1
5A897	LR085489	TUBE - ACTIVE ROLL BAR SYSTEM IN STOCK	LR085489 TUBE - ACTIVE ROLL BAR SYSTEM ARC Pipes / From: EA131722 / To: EA154254 IN STOCK	$603.44	1
5A897	LR085488	TUBE - ACTIVE ROLL BAR SYSTEM IN STOCK	LR085488 TUBE - ACTIVE ROLL BAR SYSTEM Long Wheelbase / ARC Pipes / From: EA154255 / To: GA271462 IN STOCK	$581.22	1
5A897	LR085489	TUBE - ACTIVE ROLL BAR SYSTEM IN STOCK	LR085489 TUBE - ACTIVE ROLL BAR SYSTEM Standard Wheelbase / ARC Pipes / From: EA154255 / To: GA271462 IN STOCK	$603.44	1
5A897	LR085489	TUBE - ACTIVE ROLL BAR SYSTEM IN STOCK	LR085489 TUBE - ACTIVE ROLL BAR SYSTEM Standard Wheelbase / ARC Pipes / From: GA271463 IN STOCK	$603.44	1
5A897	LR085488	TUBE - ACTIVE ROLL BAR SYSTEM IN STOCK	LR085488 TUBE - ACTIVE ROLL BAR SYSTEM Long Wheelbase / ARC Pipes / From: GA271463 IN STOCK	$581.22	1
5F262	ANR6704	MOUNTING - RUBBER	ANR6704 MOUNTING - RUBBER Double	$2.85	3
3544	LR052695	CLAMP - TUBE	LR052695 CLAMP - TUBE Includes Bush	$2.27	1
34315	RQR500010	COLLET - ARB PIPE IN STOCK	RQR500010 COLLET - ARB PIPE IN STOCK	$11.13	2
