Starter Motor (5.0 Petrol Aj133 Dohc Cda, Starter - Stop/Start System, 5.0L P Aj133 Dohc Cda S/C...

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Starter Motor (5.0 Petrol AJ133 DOHC CDA, Starter - Stop/Start System, 5.0L P AJ133 DOHC CDA S/C...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS110356 SCREW $0.74 To Order
Photo Part No Description Price (each) Stock
RYG500230 BOLT - HEX.HEAD $1.36 IN STOCK
Photo Part No Description Price (each) Stock
BYG500170 SCREW $1.89 To Order
Photo Part No Description Price (each) Stock
FS105082 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
LR054367 CAP - BREATHER TUBE $9.56 To Order
Photo Part No Description Price (each) Stock
LR079918 STARTER MOTOR $804.00 To Order
Photo Part No Description Price (each) Stock
LR042272 SHIELD - STARTER MOTOR HEAT $16.48 To Order
Photo Part No Description Price (each) Stock
LR044972 BRACKET - STARTER MOTOR $11.97 To Order
Photo Part No Description Price (each) Stock
LR111543 TUBE - BREATHER $49.84 To Order
View All

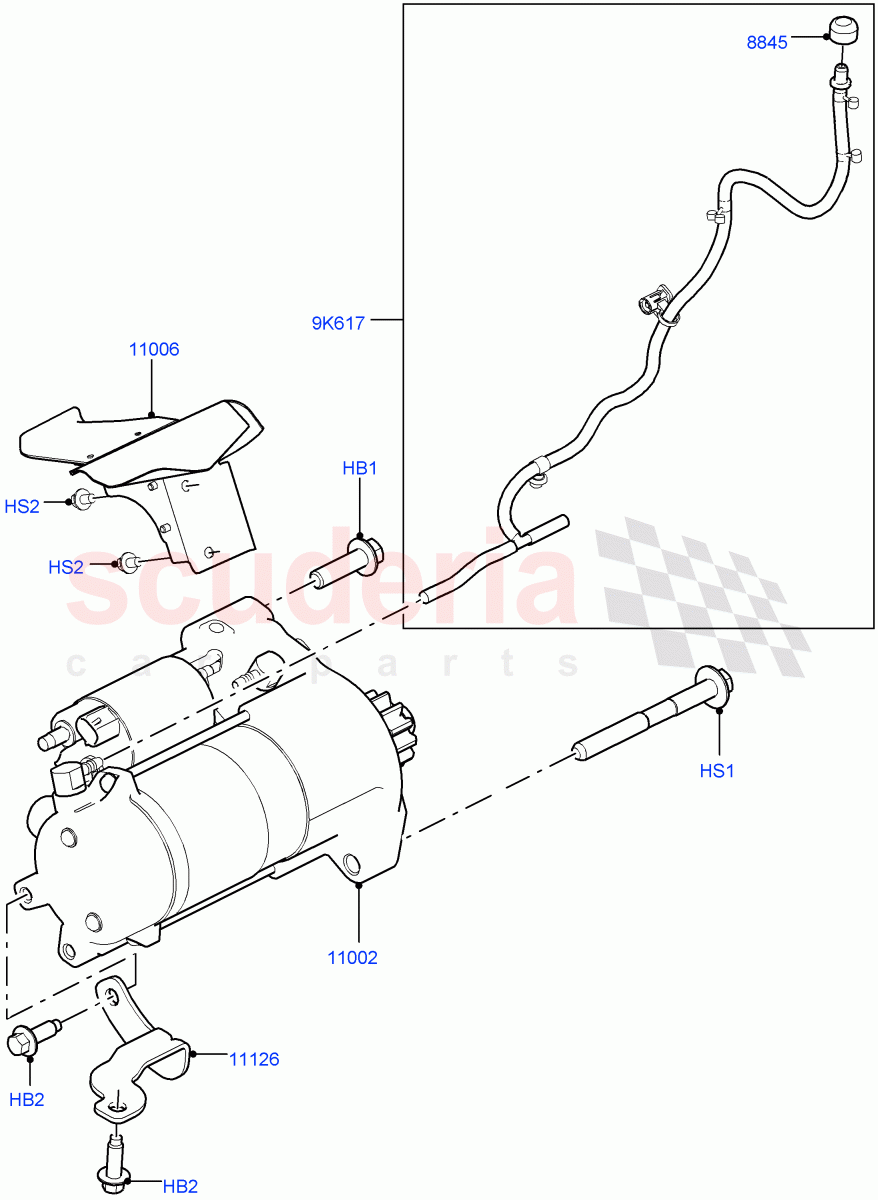

Starter Motor (5.0 Petrol AJ133 DOHC CDA, Starter - Stop/Start System, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS110356
SCREW
Hexagonal Head, M10 x 35MM, Starter / From: JA000001 		$0.74 1
HB2 RYG500230
BOLT - HEX.HEAD
Bracket, Hexagonal Head, M8 X 20MM / From: JA000001
IN STOCK 		$1.36 3
HS1 BYG500170
SCREW
M10 X 80MM / From: JA000001 		$1.89 1
HS2 FS105082
SCREW
Heat Shield, M5 x 8MM / From: JA000001 		$0.50 2
9K617 LR111543
TUBE - BREATHER
Complete / From: JA000001 		$49.84 1
8845 LR054367
CAP - BREATHER TUBE
Breather Pipe / From: JA000001 		$9.56 1
11002 LR079918
STARTER MOTOR
From: JA000001 		$804.00 1
11006 LR042272
SHIELD - STARTER MOTOR HEAT
From: JA000001 		$16.48 1
11126 LR044972
BRACKET - STARTER MOTOR
Starter / From: JA000001 		$11.97 1
