Starter Motor (5.0L Ohc Sgdi Sc V8 Petrol - Aj133, Starter - Stop/Start System) ((V) Toha999999)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Starter Motor (5.0L OHC SGDI SC V8 Petrol - AJ133, Starter - Stop/Start System) ((V) TOHA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS110356 SCREW $0.74 To Order
Photo Part No Description Price (each) Stock
RYG500230 BOLT - HEX.HEAD $1.36 IN STOCK
Photo Part No Description Price (each) Stock
LR050974 BOLT $4.15 To Order
Photo Part No Description Price (each) Stock
RYH500390 NUT AND WASHER - HEX. $1.63 To Order
Photo Part No Description Price (each) Stock
FS105082 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
LR041976 STARTER MOTOR $684.66 To Order
LR080307 STARTER MOTOR $684.66 To Order
LR079918 STARTER MOTOR $804.00 To Order
Photo Part No Description Price (each) Stock
LR042272 SHIELD - STARTER MOTOR HEAT $16.48 To Order
Photo Part No Description Price (each) Stock
LR044972 BRACKET - STARTER MOTOR $11.97 To Order
Photo Part No Description Price (each) Stock
LR052682 Tube - Breather $51.99 To Order
LR056502 TUBE - BREATHER $65.75 To Order
LR077370 TUBE - BREATHER $54.38 To Order
View All

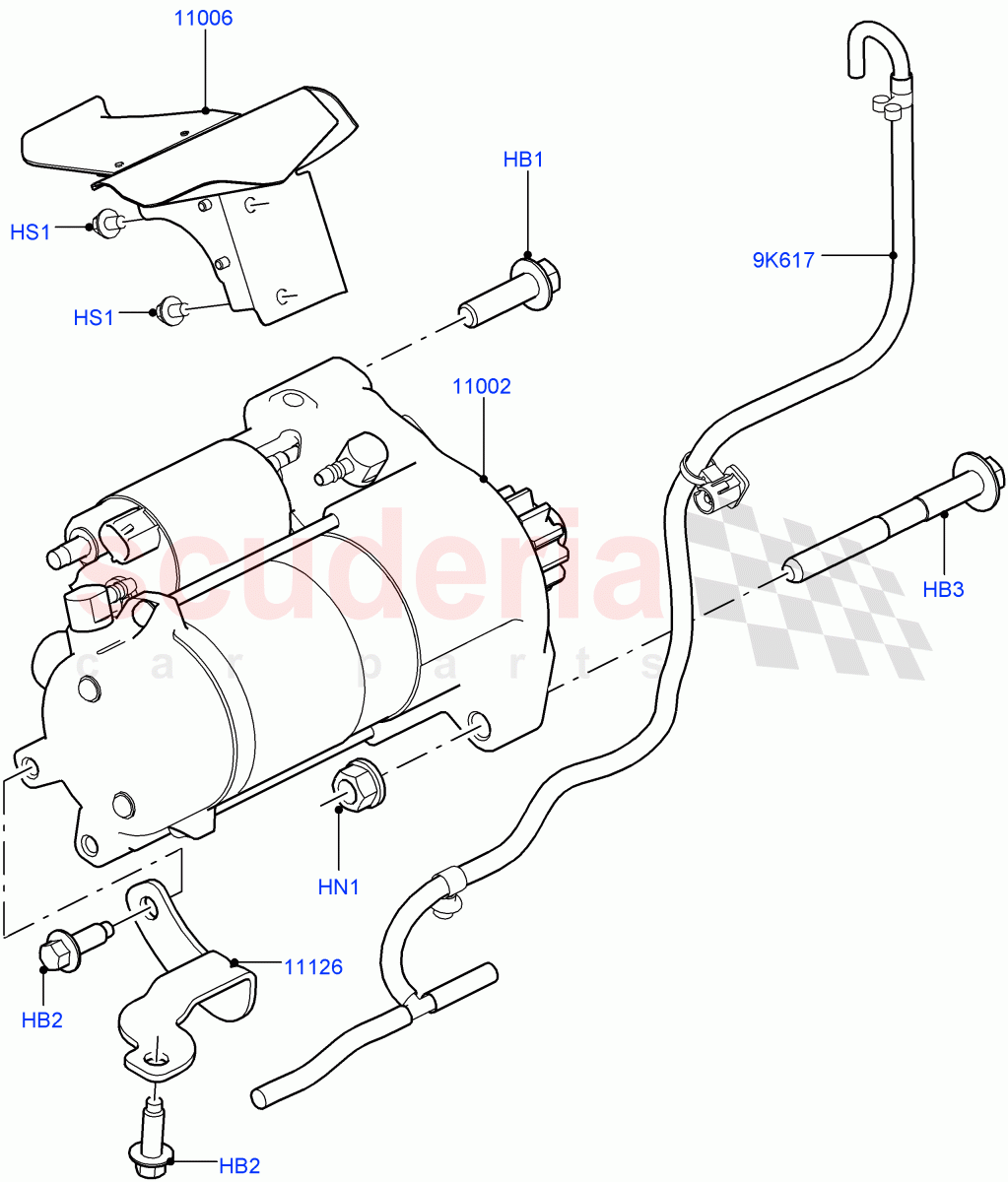

Starter Motor (5.0L OHC SGDI SC V8 Petrol - AJ133, Starter - Stop/Start System) ((V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS110356
SCREW
Hexagonal Head, M10 x 35MM, Starter / From: EA000001 		$0.74 1
HB2 RYG500230
BOLT - HEX.HEAD
Bracket, Hexagonal Head, M8 X 20MM / From: EA000001
IN STOCK 		$1.36 3
HB3 LR050974
BOLT
M10 x 98MM / From: EA000001 		$4.15 1
HN1 RYH500390
NUT AND WASHER - HEX.
M10, Nut And Washer / From: EA000001 		$1.63 1
HS1 FS105082
SCREW
Heat Shield, M5 x 8MM / From: EA000001 		$0.50 2
9K617 LR052682
Tube - Breather
Complete / From: EA000001 / To: EA137729 		$51.99 1
9K617 LR056502
TUBE - BREATHER
Complete / From: EA137730 / To: FA222998 		$65.75 1
9K617 LR077370
TUBE - BREATHER
Complete / From: FA222999 		$54.38 1
11002 LR041976
STARTER MOTOR
From: EA000001 / To: EA178045 		$684.66 1
11002 LR080307
STARTER MOTOR
From: EA178046 / To: FA999999 		$684.66 1
11002 LR079918
STARTER MOTOR
From: GA000001 		$804.00 1
11006 LR042272
SHIELD - STARTER MOTOR HEAT
From: EA000001 		$16.48 1
11126 LR044972
BRACKET - STARTER MOTOR
Starter / From: EA000001 		$11.97 1
