Vacuum Control And Air Injection (5.0 Petrol Aj133 Dohc Cda, Lhd, 5.0L P Aj133 Dohc Cda S/C...

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Vacuum Control And Air Injection (5.0 Petrol AJ133 DOHC CDA, LHD, 5.0L P AJ133 DOHC CDA S/C...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR049402 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
LR000395 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
LR049401 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
LR087667 CLIP - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR060479 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR082226 PUMP - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR012685 SEAL - VACUUM PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR081631 SENSOR - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR048194 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR048193 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR081608 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR105292 HOSE - VACUUM Enquire To Order
View All

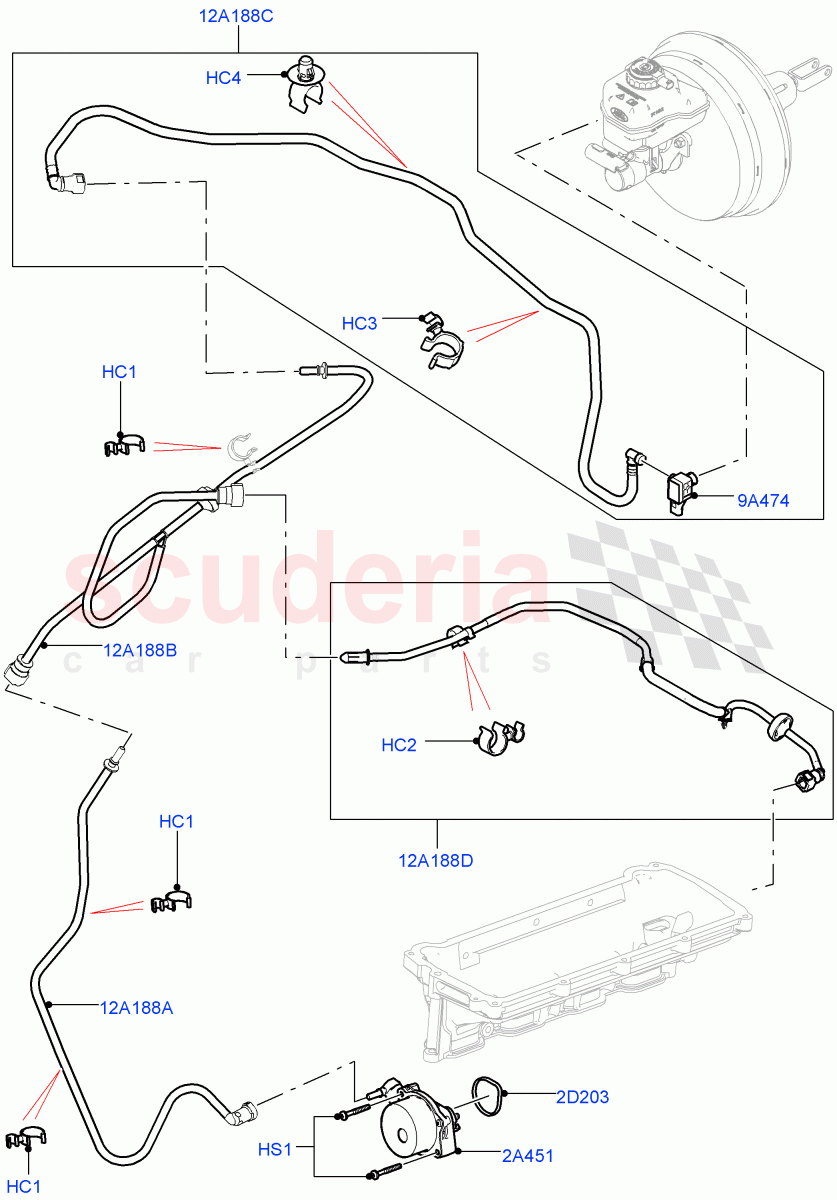

Vacuum Control And Air Injection (5.0 Petrol AJ133 DOHC CDA, LHD, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR049402
CLIP - DOUBLE
Double, To Vacuum Hose / From: JA000001 		- 3 Enquire
HC2 LR000395
CLIP - DOUBLE
To Vacuum Hose / From: JA000001 		- 1 Enquire
HC3 LR049401
CLIP - DOUBLE
Double, To Vacuum Hose / From: JA000001 		- 1 Enquire
HC4 LR087667
CLIP - SPECIAL
To Vacuum Hose / From: JA000001 		- 1 Enquire
HS1 LR060479
SCREW
M6 X 65MM, Pump - Vacuum / From: JA000001 		- 2 Enquire
2A451 LR082226
PUMP - VACUUM
From: JA000001 		- 1 Enquire
2D203 LR012685
SEAL - VACUUM PUMP
From: JA000001 		- 1 Enquire
9A474 LR081631
SENSOR - VACUUM
From: JA000001 		- 1 Enquire
12A188A LR048194
HOSE - VACUUM
Pump - Vacuum / From: JA000001 		- 1 Enquire
12A188B LR048193
HOSE - VACUUM
Centre / From: JA000001 		- 1 Enquire
12A188C LR081608
HOSE - VACUUM
To Brake Booster / From: JA000001 		- 1 Enquire
12A188D LR105292
HOSE - VACUUM
From: JA000001 		- 1 Enquire
