Name: Vacuum Control And Air Injection (5.0L OHC SGDI SC V8 Petrol - AJ133, LHD) ((V) TOGA999999)
Rating: 4.6 (1 reviews)

Vacuum Control And Air Injection (5.0L OHC SGDI SC V8 Petrol - AJ133, LHD) ((V) TOGA999999) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Vacuum Control And Air Injection (5.0L OHC SGDI SC V8 Petrol - AJ133, LHD) ((V) TOGA999999)

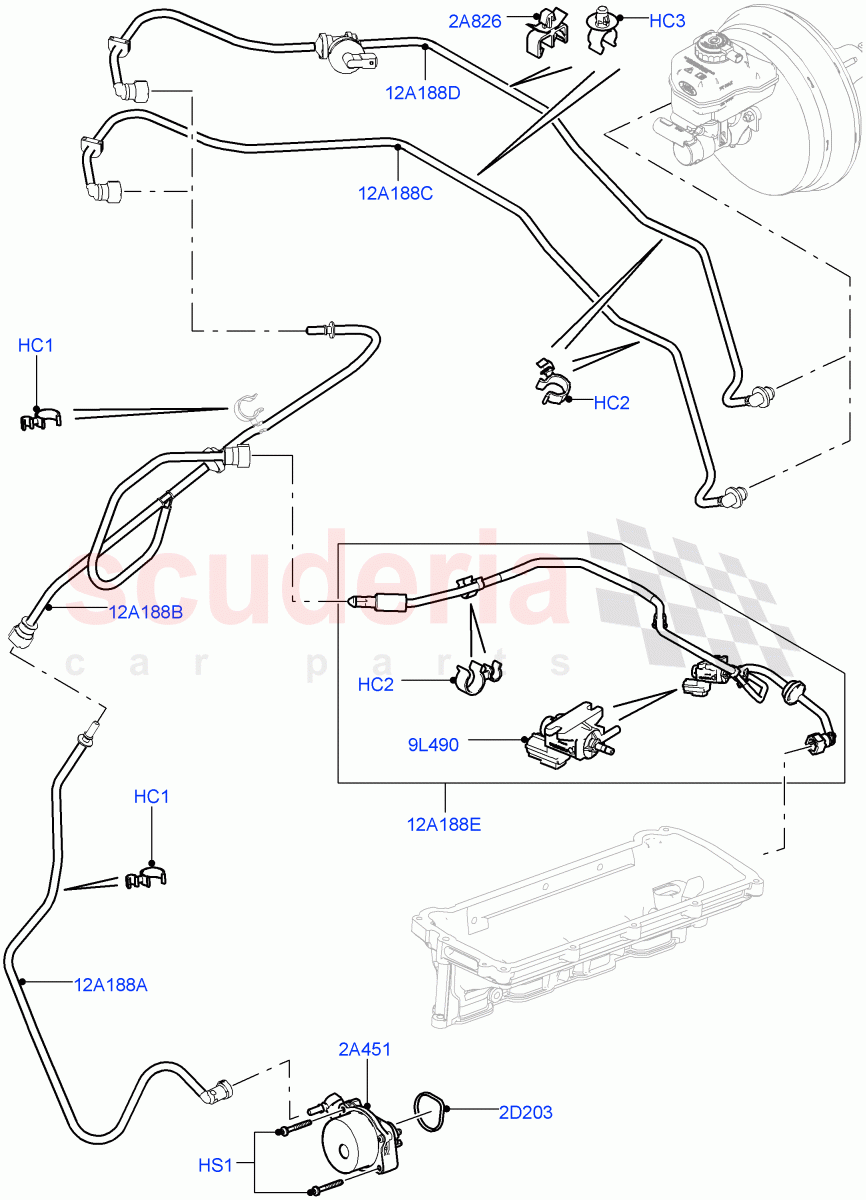

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR009660	CLIP	$1.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR000395	CLIP - DOUBLE	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049404	CLIP - SPECIAL	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011273	SCREW	$3.39	IN STOCK
	LR060479	SCREW	$4.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010690	PUMP - VACUUM	$587.85	To Order
	LR048796	PUMP - VACUUM	$446.75	To Order
	LR082226	PUMP - VACUUM	$448.18	To Order

Photo	Part No	Description	Price (each)	Stock
	SPV500100	CLIP - PARKING BRAKE CABLE	$2.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012685	SEAL - VACUUM PUMP	$19.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011982	VALVE - VACUUM CONTROL	$157.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033660	HOSE - VACUUM	$36.06	To Order
	LR045396	HOSE - VACUUM	$56.43	To Order
	LR048194	HOSE - VACUUM	$54.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033659	HOSE - VACUUM	$102.68	To Order
	LR045397	HOSE - VACUUM	$104.76	To Order
	LR048193	HOSE - VACUUM	$77.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033664	HOSE - VACUUM	$57.89	To Order
	LR045399	HOSE - VACUUM	$53.09	To Order
	LR048198	HOSE - VACUUM	$82.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048199	HOSE - VACUUM	$156.69	To Order
	LR067250	HOSE - VACUUM	$87.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088580	HOSE - VACUUM	$108.11	To Order
	LR088580	HOSE - VACUUM	$108.11	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR009660	CLIP IN STOCK	LR009660 CLIP Double, To Vacuum Hose IN STOCK	$1.70	3
HC2	LR000395	CLIP - DOUBLE	LR000395 CLIP - DOUBLE To Vacuum Hose	$1.05	2
HC3	LR049404	CLIP - SPECIAL	LR049404 CLIP - SPECIAL To Vacuum Hose	$1.00	1
HS1	LR011273	SCREW IN STOCK	LR011273 SCREW M6 X 45MM, Pump - Vacuum / To: EA999999 IN STOCK	$3.39	2
HS1	LR060479	SCREW	LR060479 SCREW M6 X 65MM, Pump - Vacuum / From: FA000001	$4.15	2
2A451	LR010690	PUMP - VACUUM	LR010690 PUMP - VACUUM To: DA999999	$587.85	1
2A451	LR048796	PUMP - VACUUM	LR048796 PUMP - VACUUM From: EA000001 / To: EA999999	$446.75	1
2A451	LR082226	PUMP - VACUUM	LR082226 PUMP - VACUUM From: FA000001	$448.18	1
2A826	SPV500100	CLIP - PARKING BRAKE CABLE	SPV500100 CLIP - PARKING BRAKE CABLE To Vacuum Hose	$2.44	1
2D203	LR012685	SEAL - VACUUM PUMP	LR012685 SEAL - VACUUM PUMP	$19.94	1
9L490	LR011982	VALVE - VACUUM CONTROL	LR011982 VALVE - VACUUM CONTROL Symposer (Resonator)	$157.85	1
12A188A	LR033660	HOSE - VACUUM	LR033660 HOSE - VACUUM Pump - Vacuum / To: DA100649	$36.06	1
12A188A	LR045396	HOSE - VACUUM	LR045396 HOSE - VACUUM Pump - Vacuum / From: DA100650 / To: DA999999	$56.43	1
12A188A	LR048194	HOSE - VACUUM IN STOCK	LR048194 HOSE - VACUUM Pump - Vacuum / From: EA000001 IN STOCK	$54.39	1
12A188B	LR033659	HOSE - VACUUM	LR033659 HOSE - VACUUM Centre / To: DA100649	$102.68	1
12A188B	LR045397	HOSE - VACUUM	LR045397 HOSE - VACUUM Centre / From: DA100650 / To: DA999999	$104.76	1
12A188B	LR048193	HOSE - VACUUM	LR048193 HOSE - VACUUM Centre / From: EA000001	$77.74	1
12A188C	LR033664	HOSE - VACUUM	LR033664 HOSE - VACUUM To Brake Booster / To: DA100649	$57.89	1
12A188C	LR045399	HOSE - VACUUM	LR045399 HOSE - VACUUM To Brake Booster / From: DA100650 / To: DA999999	$53.09	1
12A188C	LR048198	HOSE - VACUUM	LR048198 HOSE - VACUUM Standard Electric Starter Motor / To Brake Booster / From: EA000001	$82.77	1
12A188D	LR048199	HOSE - VACUUM	LR048199 HOSE - VACUUM Starter - Stop/Start System / Includes Vacuum Sensor, To Brake Booster / From: EA000001 / To: EA184497	$156.69	1
12A188D	LR067250	HOSE - VACUUM	LR067250 HOSE - VACUUM Starter - Stop/Start System / Includes Vacuum Sensor, To Brake Booster / From: EA184498	$87.23	1
12A188E	LR088580	HOSE - VACUUM	LR088580 HOSE - VACUUM To Symposer / To: DA124953	$108.11	1
12A188E	LR088580	HOSE - VACUUM	LR088580 HOSE - VACUUM To Symposer / From: DA124954	$108.11	1

Vacuum Control And Air Injection (5.0L Ohc Sgdi Sc V8 Petrol - Aj133, Lhd) ((V) Toga999999)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Vacuum Control And Air Injection (5.0L OHC SGDI SC V8 Petrol - AJ133, LHD) ((V) TOGA999999)
