Name: Pulleys And Drive Belts (Secondary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Pulleys And Drive Belts (Secondary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133 DOHC CDA, 5.0L P AJ133 DOHC CDA S/C Enhanced) ((V) FROMAA000001) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Pulleys And Drive Belts (Secondary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133, 5.0 Petrol AJ133...

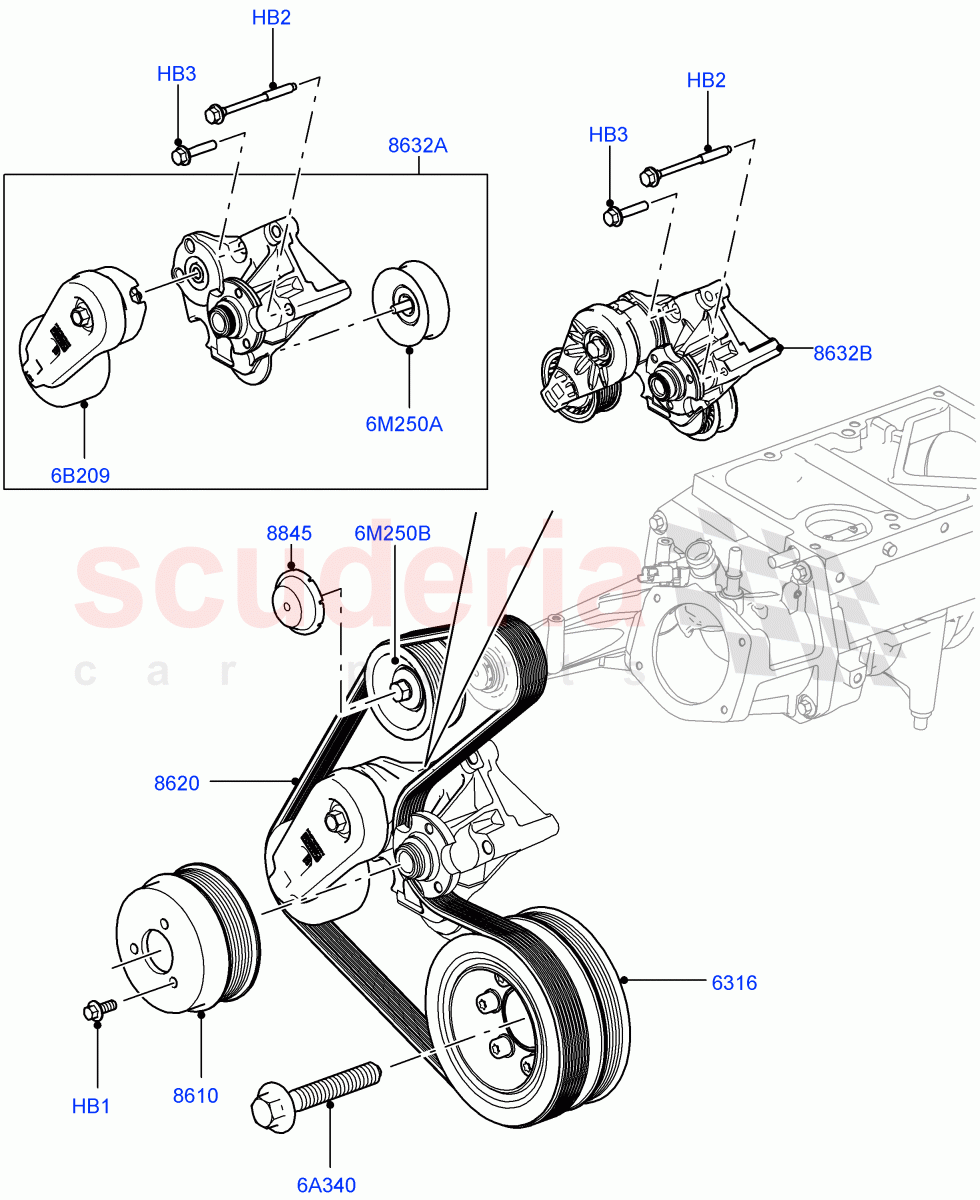

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005074	BOLT	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016837	BOLT	$1.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011972	PULLEY - CRANKSHAFT	$539.80	To Order
	LR076013	PULLEY - CRANKSHAFT	$406.13	To Order
	LR107656	PULLEY - CRANKSHAFT	$385.55	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR011325	PULLEY - FAN	$97.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011327	BELT - ACCESSORY DRIVE	$73.27	To Order
	LR184650	BELT - ACCESSORY DRIVE	$47.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022816	CAP - IDLER PULLEY	$3.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011952	BOLT M18 X110	$22.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR039517	TENSIONER - DRIVE BELT	$155.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035556	BRACKET WITH IDLER AND BEARING FAN	$398.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079294	BRACKET WITH IDLER AND BEARING FAN	$331.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039516	PULLEY - IDLER	$55.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035545	PULLEY - IDLER	$53.76	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM, Pulley IN STOCK	$2.23	3
HB2	LR005074	BOLT	LR005074 BOLT Bracket, Hexagonal Head, M8 X 96.5	$1.11	1
HB3	LR016837	BOLT IN STOCK	LR016837 BOLT Bracket, M8 x 40MM IN STOCK	$1.00	3
6A340	LR011952	BOLT M18 X110 IN STOCK	LR011952 BOLT M18 X110 M16 X 118MM, Pulley - Crankshaft IN STOCK	$22.60	1
6B209	LR039517	TENSIONER - DRIVE BELT	LR039517 TENSIONER - DRIVE BELT Includes Bolt, Requires 1444mm Belt, Secondary / To: GA275600	$155.06	1
6M250A	LR039516	PULLEY - IDLER	LR039516 PULLEY - IDLER Primary Drive, Requires 1444mm Belt / To: GA275600	$55.78	1
6M250B	LR035545	PULLEY - IDLER	LR035545 PULLEY - IDLER Includes Bolt, Secondary Drive	$53.76	1
6316	LR011972	PULLEY - CRANKSHAFT	LR011972 PULLEY - CRANKSHAFT To: EA999999	$539.80	1
6316	LR076013	PULLEY - CRANKSHAFT	LR076013 PULLEY - CRANKSHAFT From: FA000001 / To: HA360990	$406.13	1
6316	LR107656	PULLEY - CRANKSHAFT	LR107656 PULLEY - CRANKSHAFT 5.0 Petrol AJ133 DOHC CDA / From: JA000001 / To: KA533107	$385.55	1
6316	LR107656	PULLEY - CRANKSHAFT	LR107656 PULLEY - CRANKSHAFT From: HA360991 / To: HA999999	$385.55	1
6316	LR124257	PULLEY - CRANKSHAFT	LR124257 PULLEY - CRANKSHAFT 5.0 Petrol AJ133 DOHC CDA / From: KA533108	$422.52	1
6316	LR104342	PULLEY - CRANKSHAFT	LR104342 PULLEY - CRANKSHAFT 5.0L P AJ133 DOHC CDA S/C Enhanced / From: JA000001 / To: KA533107	$443.47	1
6316	LR124258	PULLEY - CRANKSHAFT	LR124258 PULLEY - CRANKSHAFT 5.0L P AJ133 DOHC CDA S/C Enhanced / From: KA533108	$455.33	1
8610	LR011325	PULLEY - FAN	LR011325 PULLEY - FAN Fan	$97.63	1
8620	LR011327	BELT - ACCESSORY DRIVE	LR011327 BELT - ACCESSORY DRIVE 1444mm Length, Secondary Drive / To: GA275600	$73.27	1
8620	LR184650	BELT - ACCESSORY DRIVE	LR184650 BELT - ACCESSORY DRIVE 1430mm Length, Secondary Drive / From: GA275601	$47.95	1
8632A	LR035556	BRACKET WITH IDLER AND BEARING FAN	LR035556 BRACKET WITH IDLER AND BEARING FAN Requires 1444mm Belt, With Idler, With Tensioner Assy / To: GA275600	$398.31	1
8632B	LR079294	BRACKET WITH IDLER AND BEARING FAN	LR079294 BRACKET WITH IDLER AND BEARING FAN Requires 1430mm Belt, With Idler, With Tensioner Assy / From: GA275601	$331.98	1
8845	LR022816	CAP - IDLER PULLEY	LR022816 CAP - IDLER PULLEY idler	$3.12	1
