Name: Pulleys And Drive Belts (Primary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOHA999999)
Rating: 4.5 (1 reviews)

Pulleys And Drive Belts (Primary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Pulleys And Drive Belts (Primary Drive) (5.0L OHC SGDI SC V8 Petrol - AJ133) ((V) TOHA999999)

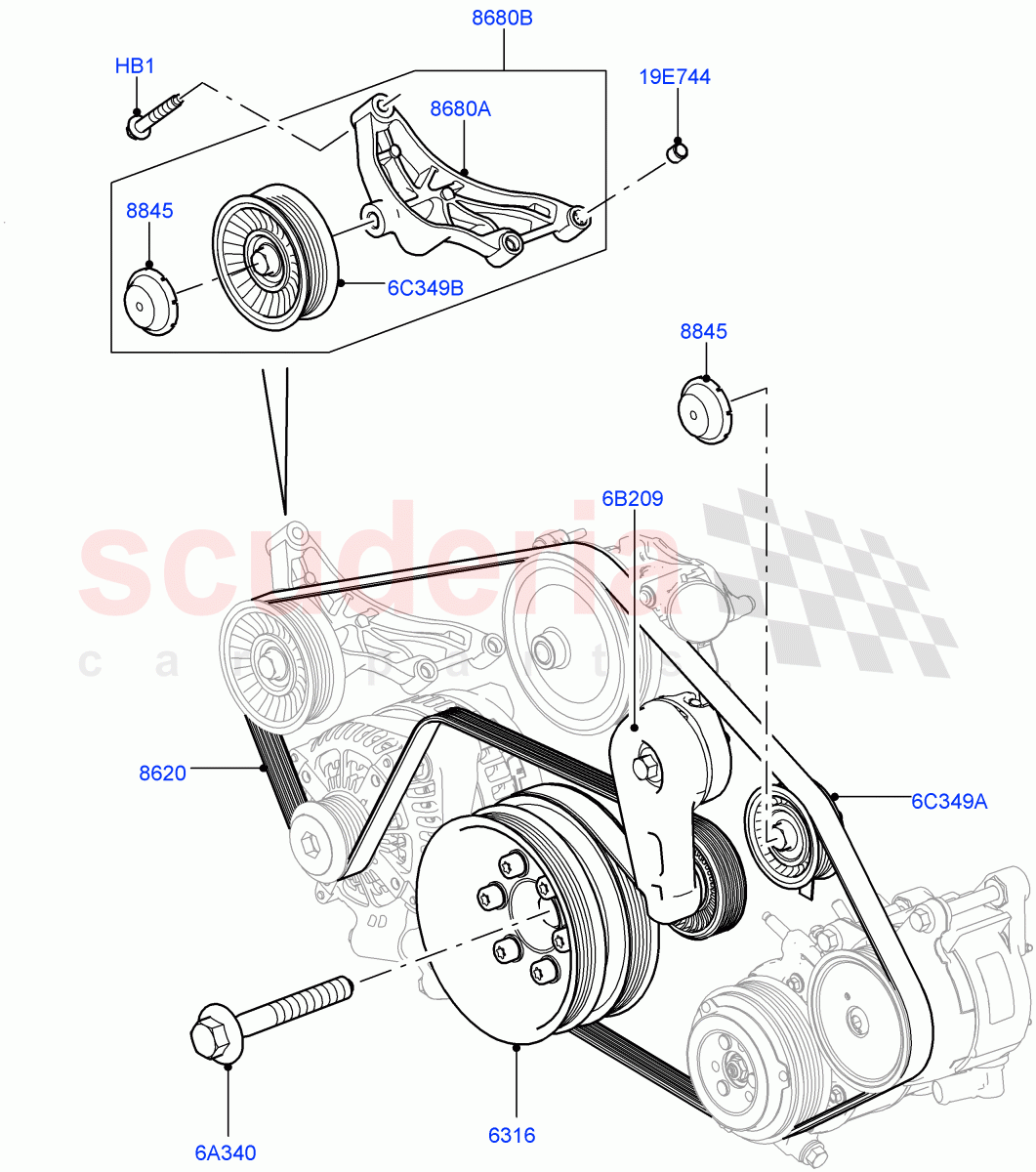

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4567977	BOLT	$3.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011972	PULLEY - CRANKSHAFT	$539.80	To Order
	LR076013	PULLEY - CRANKSHAFT	$406.13	To Order
	LR107656	PULLEY - CRANKSHAFT	$385.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035542	BELT - ACCESSORY DRIVE	$84.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022816	CAP - IDLER PULLEY	$3.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011952	BOLT M18 X110	$22.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071035	TENSIONER - DRIVE BELT	$150.69	To Order
	LR071035	TENSIONER - DRIVE BELT	$150.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029159	BRACKET - IDLER PULLEY	$26.93	To Order
	LR077670	BRACKET - IDLER PULLEY	$48.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099573	BRACKET - IDLER PULLEY	$111.59	To Order
	LR099573	BRACKET - IDLER PULLEY	$111.59	To Order

Photo	Part No	Description	Price (each)	Stock
	PYU500020	PIN - LOCATING	$3.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036304	IDLER - DRIVE BELT	$61.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR106769	IDLER	$49.25	IN STOCK
	LR086058	IDLER - DRIVE BELT	$65.09	To Order
	LR106769	IDLER	$49.25	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4567977	BOLT	4567977 BOLT Bracket, M8 X 50	$3.74	3
6A340	LR011952	BOLT M18 X110 IN STOCK	LR011952 BOLT M18 X110 M16 X 118MM, Pulley - Crankshaft IN STOCK	$22.60	1
6B209	LR071035	TENSIONER - DRIVE BELT	LR071035 TENSIONER - DRIVE BELT Includes Bolt, Primary Drive / To: FA999999	$150.69	1
6B209	LR071035	TENSIONER - DRIVE BELT	LR071035 TENSIONER - DRIVE BELT Drive Belt, Includes Bolt, Primary Drive / From: GA000001	$150.69	1
6C349A	LR036304	IDLER - DRIVE BELT IN STOCK	LR036304 IDLER - DRIVE BELT Drive Belt, IN STOCK	$61.87	1
6C349B	LR106769	IDLER IN STOCK	LR106769 IDLER 90MM, Drive Belt / To: GA286392 IN STOCK	$49.25	1
6C349B	LR086058	IDLER - DRIVE BELT	LR086058 IDLER - DRIVE BELT 90MM, Drive Belt / From: GA286393 / To: HA362341	$65.09	1
6C349B	LR106769	IDLER IN STOCK	LR106769 IDLER 90MM, Drive Belt / From: HA362342 IN STOCK	$49.25	1
19E744	PYU500020	PIN - LOCATING	PYU500020 PIN - LOCATING	$3.04	2
6316	LR011972	PULLEY - CRANKSHAFT	LR011972 PULLEY - CRANKSHAFT To: EA999999	$539.80	1
6316	LR076013	PULLEY - CRANKSHAFT	LR076013 PULLEY - CRANKSHAFT From: FA000001 / To: HA360990	$406.13	1
6316	LR107656	PULLEY - CRANKSHAFT	LR107656 PULLEY - CRANKSHAFT From: HA360991 / To: HA999999	$385.55	1
8620	LR035542	BELT - ACCESSORY DRIVE	LR035542 BELT - ACCESSORY DRIVE Accessory, Primary Drive	$84.43	1
8680A	LR029159	BRACKET - IDLER PULLEY	LR029159 BRACKET - IDLER PULLEY To: EA999999	$26.93	1
8680A	LR077670	BRACKET - IDLER PULLEY	LR077670 BRACKET - IDLER PULLEY From: FA000001	$48.68	1
8680B	LR099573	BRACKET - IDLER PULLEY	LR099573 BRACKET - IDLER PULLEY With Idler / To: GA314045	$111.59	1
8680B	LR099573	BRACKET - IDLER PULLEY	LR099573 BRACKET - IDLER PULLEY With Idler / From: GA314046	$111.59	1
8845	LR022816	CAP - IDLER PULLEY	LR022816 CAP - IDLER PULLEY idler, Upper	$3.12	2
