Find Your Part

View All

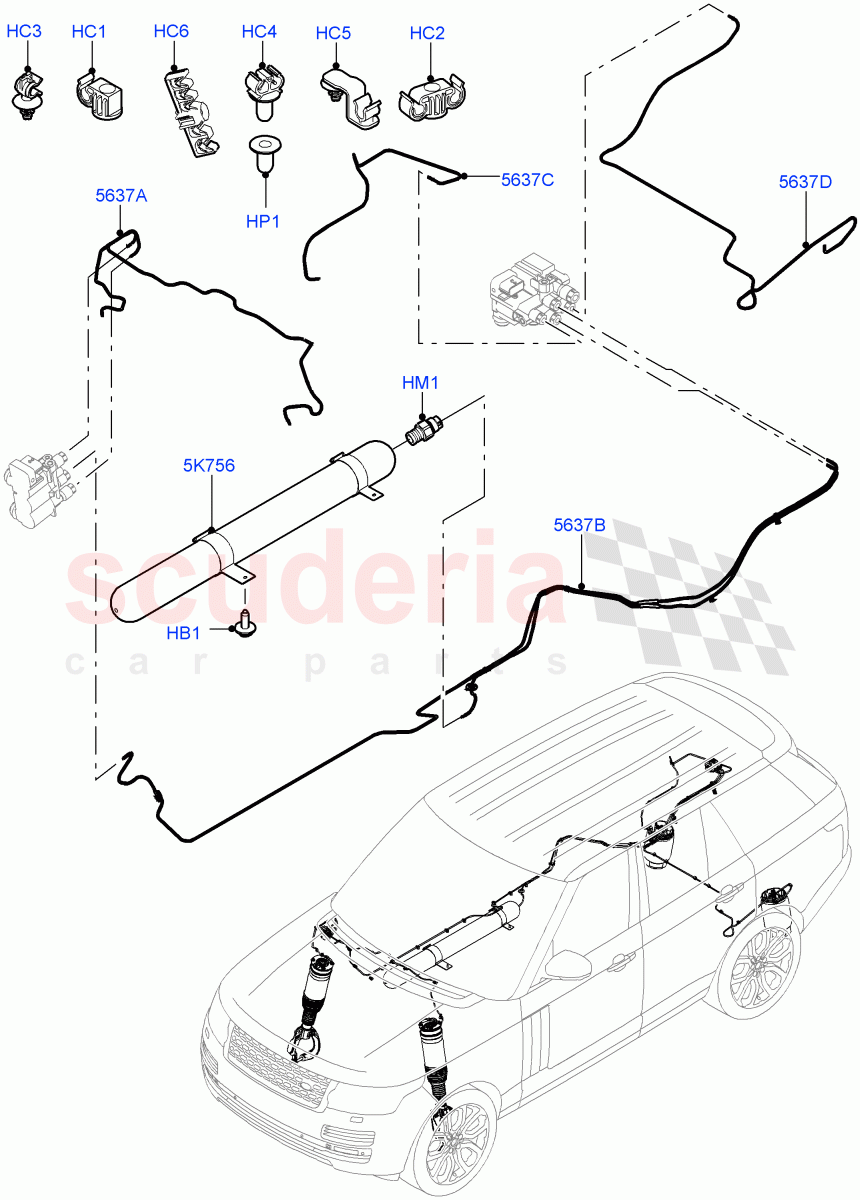

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG501000	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035615	CLIP - PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037083	CLIP - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037084	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037085	CLIP - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039112	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047325	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044836	CONNECTOR - VALVE BLOCK TO PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037086	PLUG - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037074	TUBE - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037073	TUBE - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037078	TUBE - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037079	TUBE - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037080	TANK - AIR SUSPENSION	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG501000	BOLT AND WASHER - HEX.HEAD	RYG501000 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M8 X 21MM	-	4	Enquire
HC1	LR035615	CLIP - PIPE	LR035615 CLIP - PIPE 6MM, Single	-	15	Enquire
HC2	LR037083	CLIP - DOUBLE	LR037083 CLIP - DOUBLE 6MM, Double	-	4	Enquire
HC3	LR037084	CLIP - HOSE	LR037084 CLIP - HOSE 6MM, Single	-	16	Enquire
HC4	LR037085	CLIP - DOUBLE	LR037085 CLIP - DOUBLE 6MM, Double	-	2	Enquire
HC5	LR039112	CLIP	LR039112 CLIP Single	-	1	Enquire
HC6	LR047325	CLIP - SPECIAL	LR047325 CLIP - SPECIAL 5 Way	-	2	Enquire
HM1	LR044836	CONNECTOR - VALVE BLOCK TO PIPE	LR044836 CONNECTOR - VALVE BLOCK TO PIPE 6MM, Air Tube Connector	-	1	Enquire
HP1	LR037086	PLUG - SPECIAL	LR037086 PLUG - SPECIAL 8.5MM	-	2	Enquire
5K756	LR037080	TANK - AIR SUSPENSION	LR037080 TANK - AIR SUSPENSION Air Suspension, Includes Air Tube Connector, With Bracket	-	1	Enquire
5637A	LR037074	TUBE - AIR SUSPENSION	LR037074 TUBE - AIR SUSPENSION Axle Valve To Front LH Spring, Axle Valve To Front RH Spring, Set Of 2 Pieces	-	1	Enquire
5637B	LR037073	TUBE - AIR SUSPENSION	LR037073 TUBE - AIR SUSPENSION Axle Valve To Reservoir Tank, Rear Axle Valve To Front Axle Valve, Set Of 2 Pieces	-	1	Enquire
5637C	LR037078	TUBE - AIR SUSPENSION	LR037078 TUBE - AIR SUSPENSION Axle Valve To Rear RH Spring	-	1	Enquire
5637D	LR037079	TUBE - AIR SUSPENSION	LR037079 TUBE - AIR SUSPENSION Axle Valve To Rear LH Spring	-	1	Enquire
