Active Anti-Roll Bar System (Cooler, Reservoir) (4.4L Dohc Ditc V8 Diesel)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Active Anti-Roll Bar System (Cooler, Reservoir) (4.4L DOHC DITC V8 Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500250 BOLT $1.19 IN STOCK
Photo Part No Description Price (each) Stock
LR048178 CLIP - SINGLE $4.69 To Order
Photo Part No Description Price (each) Stock
LR038578 CLAMP - HOSE $1.86 To Order
LR023103 CLAMP - HOSE $5.42 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
LR052714 O-RING $2.98 To Order
Photo Part No Description Price (each) Stock
RYG500310 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
LR035444 HOSE - RESERVOIR TO PUMP $50.64 To Order
LR048082 HOSE - RESERVOIR TO PUMP $53.68 To Order
LR135879 HOSE - RESERVOIR TO PUMP $235.25 To Order
Photo Part No Description Price (each) Stock
LR052695 CLAMP - TUBE $2.27 To Order
Photo Part No Description Price (each) Stock
LR038588 BRACKET - ACTIVE ROLL BAR HOSE $6.67 To Order
LR135876 BRACKET - ACTIVE ROLL BAR HOSE $82.67 To Order
Photo Part No Description Price (each) Stock
LR035488 BUSH - RESERVOIR $7.15 To Order
Photo Part No Description Price (each) Stock
LR035487 GROMMET - RESERVOIR $8.25 To Order
Photo Part No Description Price (each) Stock
LR035485 RESERVOIR - EXPANSION $148.59 To Order
LR048454 RESERVOIR - EXPANSION $131.34 To Order
LR072550 RESERVOIR - EXPANSION $132.06 To Order
Photo Part No Description Price (each) Stock
LR035470 TUBE - ACTIVE ROLL BAR SYSTEM $227.14 To Order
Photo Part No Description Price (each) Stock
LR035478 COOLER - ACTIVE ROLL BAR $230.28 To Order
LR061669 COOLER - ACTIVE ROLL BAR $310.94 To Order
LR086451 COOLER - ACTIVE ROLL BAR $310.11 To Order
Photo Part No Description Price (each) Stock
RQF500010 CAP - RESERVOIR $6.79 IN STOCK
View All

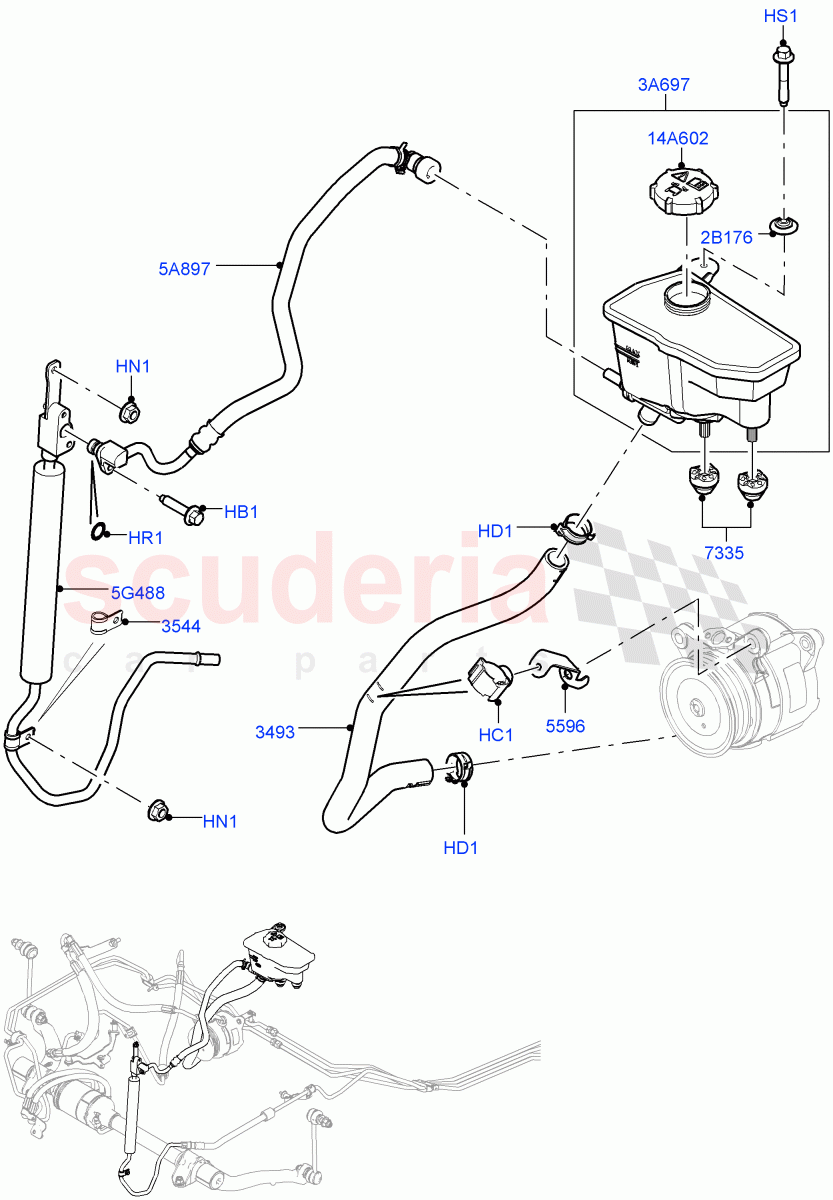

Active Anti-Roll Bar System (Cooler, Reservoir) (4.4L DOHC DITC V8 Diesel) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500250
BOLT
HEX Flange, M6 x 25MM
IN STOCK 		$1.19 1
HC1 LR048178
CLIP - SINGLE
Hose, Reservoir To Pump 		$4.69 1
HD1 LR038578
CLAMP - HOSE
Hose, Reservoir To Pump / To: LA574418 		$1.86 2
HD1 LR023103
CLAMP - HOSE
Hose, Reservoir To Pump / From: LA574419 		$5.42 2
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.45 2
HR1 LR052714
O-RING
ARC Pipes 		$2.98 1
HS1 RYG500310
SCREW
HEX Flange, M6 x 35MM
IN STOCK 		$0.58 1
2B176 LR035487
GROMMET - RESERVOIR
Reservoir, Upper 		$8.25 1
3A697 LR035485
RESERVOIR - EXPANSION
To: DA115281 		$148.59 1
3A697 LR048454
RESERVOIR - EXPANSION
From: DA115282 / To: FA212065 		$131.34 1
3A697 LR072550
RESERVOIR - EXPANSION
From: FA212066 		$132.06 1
5A897 LR035470
TUBE - ACTIVE ROLL BAR SYSTEM
Cooler To Reservoir 		$227.14 1
5G488 LR035478
COOLER - ACTIVE ROLL BAR
To: EA154409 		$230.28 1
5G488 LR061669
COOLER - ACTIVE ROLL BAR
From: EA154410 / To: GA999999 		$310.94 1
5G488 LR086451
COOLER - ACTIVE ROLL BAR
From: HA000001 		$310.11 1
14A602 RQF500010
CAP - RESERVOIR
Reservoir
IN STOCK 		$6.79 1
3493 LR035444
HOSE - RESERVOIR TO PUMP
Reservoir To Pump / To: EA126321 		$50.64 1
3493 LR048082
HOSE - RESERVOIR TO PUMP
Reservoir To Pump / From: EA126322 / To: LA574418 		$53.68 1
3493 LR135879
HOSE - RESERVOIR TO PUMP
Reservoir To Pump / From: LA574419 		$235.25 1
3544 LR052695
CLAMP - TUBE
Includes Bush 		$2.27 1
5596 LR038588
BRACKET - ACTIVE ROLL BAR HOSE
Hose, Reservoir To Pump / To: LA574418 		$6.67 1
5596 LR135876
BRACKET - ACTIVE ROLL BAR HOSE
Hose, Reservoir To Pump / From: LA574419 		$82.67 1
7335 LR035488
BUSH - RESERVOIR
Lower, Reservoir 		$7.15 2
