Name: Exhaust Manifold (5.0L OHC SGDI NA V8 Petrol - AJ133)
Rating: 4.3 (1 reviews)

View All

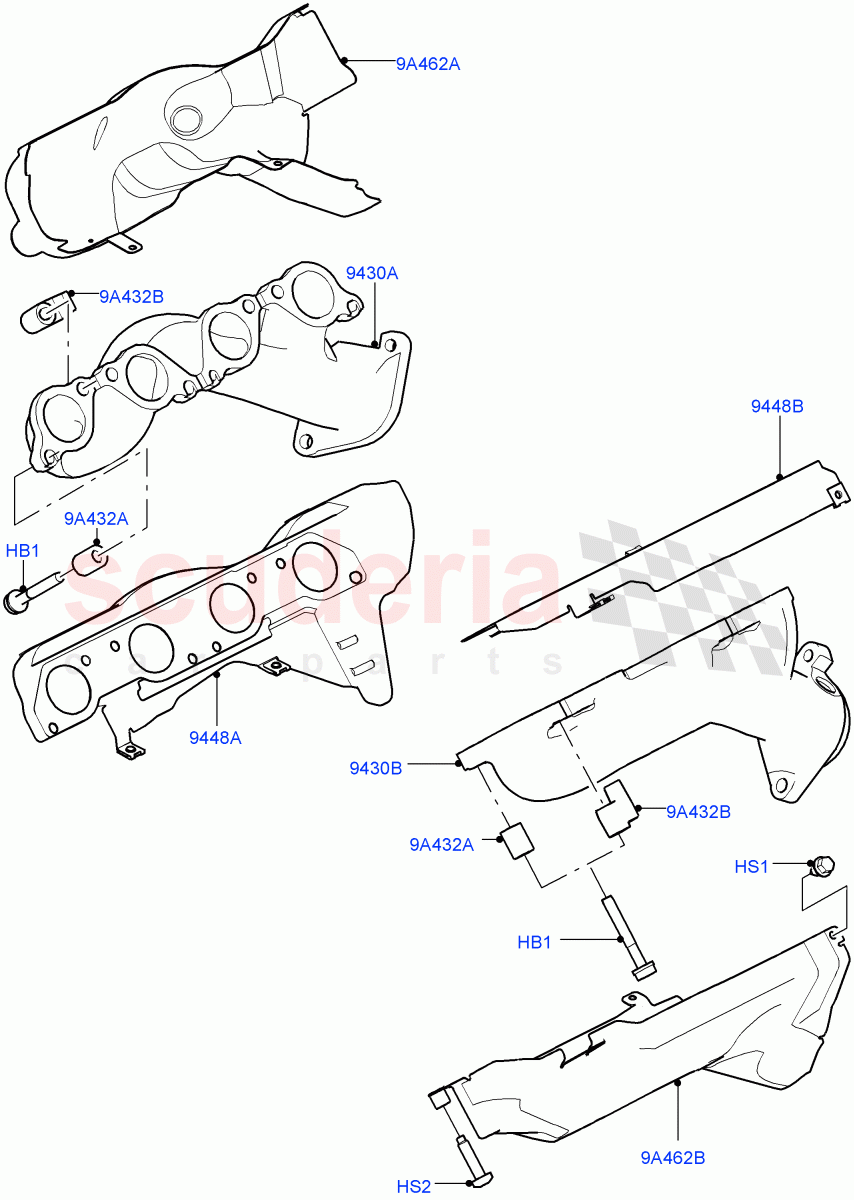

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034008	BOLT	$3.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR006698	SCREW	$3.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010917	SCREW	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035108	MANIFOLD - EXHAUST	$747.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035109	MANIFOLD - EXHAUST	$606.05	To Order

Photo	Part No	Description	Price (each)	Stock
	4642648	SPACER - EXHAUST MANIFOLD FIXING	$1.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010805	EXHAUST MANIFOLD FIXING	$23.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035112	SHIELD - EXHAUST MANIFOLD HEAT	$79.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035113	SHIELD - EXHAUST MANIFOLD HEAT	$88.77	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR034008	BOLT IN STOCK	LR034008 BOLT Exhaust Manifold, M8 x 57MM IN STOCK	$3.19	16
HS1	LR006698	SCREW IN STOCK	LR006698 SCREW Heat Shield, M6.3 X 13MM IN STOCK	$3.65	6
HS2	LR010917	SCREW	LR010917 SCREW Heat Shield, M8 x 30MM	$1.11	2
9A432A	4642648	SPACER - EXHAUST MANIFOLD FIXING	4642648 SPACER - EXHAUST MANIFOLD FIXING Exhaust Manifold Fixing	$1.90	10
9A432B	LR010805	EXHAUST MANIFOLD FIXING	LR010805 EXHAUST MANIFOLD FIXING Exhaust Manifold Fixing	$23.31	6
9A462A	LR035112	SHIELD - EXHAUST MANIFOLD HEAT	LR035112 SHIELD - EXHAUST MANIFOLD HEAT RH, Exhaust Manifold	$79.42	1
9A462B	LR035113	SHIELD - EXHAUST MANIFOLD HEAT	LR035113 SHIELD - EXHAUST MANIFOLD HEAT LH, Exhaust Manifold	$88.77	1
9430A	LR035108	MANIFOLD - EXHAUST	LR035108 MANIFOLD - EXHAUST RH	$747.37	1
9430B	LR035109	MANIFOLD - EXHAUST	LR035109 MANIFOLD - EXHAUST LH	$606.05	1
9448A	LR035111	GASKET - EXHAUST MANIFOLD	LR035111 GASKET - EXHAUST MANIFOLD RH, Exhaust Manifold / To: FA210915	$49.79	1
9448A	LR116108	GASKET - EXHAUST MANIFOLD	LR116108 GASKET - EXHAUST MANIFOLD RH, Exhaust Manifold / From: FA210916	$42.47	1
9448B	LR035110	GASKET - EXHAUST MANIFOLD	LR035110 GASKET - EXHAUST MANIFOLD LH, Exhaust Manifold / To: FA210915	$43.29	1
9448B	LR116109	GASKET - EXHAUST MANIFOLD	LR116109 GASKET - EXHAUST MANIFOLD LH, Exhaust Manifold / From: FA210916	$56.36	1

Exhaust Manifold (5.0L Ohc Sgdi Na V8 Petrol - Aj133)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]
