Cylinder Head (5.0L Ohc Sgdi Na V8 Petrol - Aj133)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] - Cylinder Head (5.0L OHC SGDI NA V8 Petrol - AJ133)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR010903 BOLT $2.98 To Order
Photo Part No Description Price (each) Stock
LR011700 SCREW $1.34 IN STOCK
Photo Part No Description Price (each) Stock
LR010905 SCREW $1.11 IN STOCK
Photo Part No Description Price (each) Stock
LR011271 SCREW $1.19 IN STOCK
Photo Part No Description Price (each) Stock
LR010904 SCREW $1.19 To Order
Photo Part No Description Price (each) Stock
LR038752 CYLINDER HEAD $2,671.24 To Order
LR038753 CYLINDER HEAD $2,724.67 To Order
LR082796 CYLINDER HEAD $2,474.80 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR105294 GASKET-CYLINDER HEAD $104.56 To Order
LR181763 GASKET - CYLINDER HEAD $104.56 To Order
LR084186 GASKET-CYLINDER HEAD $104.56 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026143 BOLT - HEX.HEAD $6.09 To Order
Photo Part No Description Price (each) Stock
LR035551 VALVE - EXHAUST $31.82 To Order
LR055528 VALVE - EXHAUST $28.47 To Order
LR082739 VALVE - EXHAUST $28.58 To Order
Photo Part No Description Price (each) Stock
LR010699 VALVE - INLET $37.35 To Order
Photo Part No Description Price (each) Stock
LR010702 RETAINER - VALVE SPRING $4.32 To Order
Photo Part No Description Price (each) Stock
LR008878 COLLET - VALVE SPRING RETAINER $1.30 IN STOCK
Photo Part No Description Price (each) Stock
LR018270 TAPPET - VALVE $119.52 To Order
Photo Part No Description Price (each) Stock
LR037205 TAPPET - VALVE $11.60 To Order
LR037211 TAPPET - VALVE $10.93 To Order
LR037229 TAPPET - VALVE $10.47 To Order
...and 47 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR038175 SPRING - VALVE $54.38 To Order
Photo Part No Description Price (each) Stock
LR038167 SPRING - VALVE $57.46 To Order
Photo Part No Description Price (each) Stock
LR038164 Seat - Spring Enquire To Order
LR054369 SEAT - SPRING $5.02 To Order
LR078819 SEAT - SPRING $4.98 To Order
Photo Part No Description Price (each) Stock
LR077674 VALVE - CHECK $9.16 To Order
Photo Part No Description Price (each) Stock
LR012112 SWITCH - SOLENOID CONTROL $120.64 To Order
Photo Part No Description Price (each) Stock
LR011688 RESTRICTOR - OIL $2.47 To Order
Photo Part No Description Price (each) Stock
LR011996 TUBE - DRAIN $6.71 To Order
Photo Part No Description Price (each) Stock
LR008877 SENSOR - ENGINE KNOCK $107.73 To Order
View All

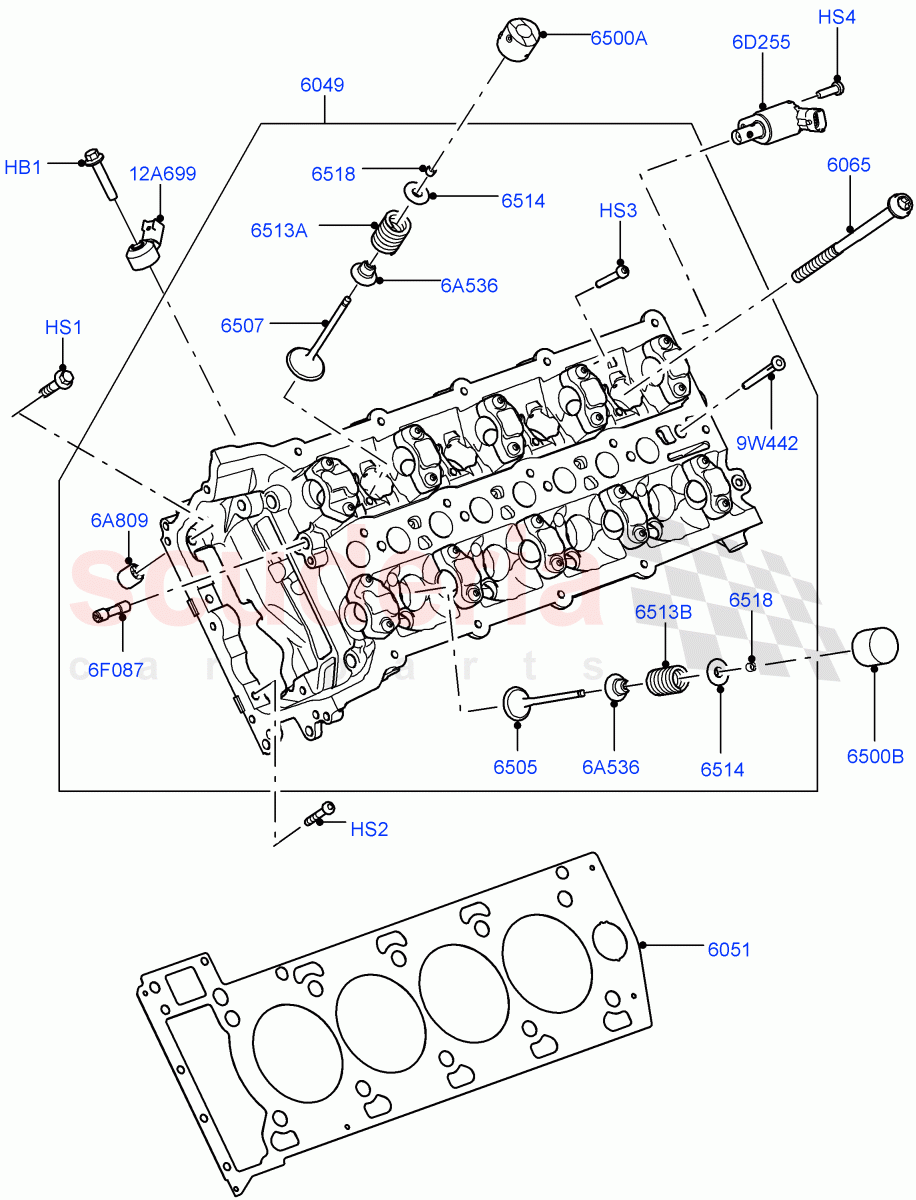

Cylinder Head (5.0L OHC SGDI NA V8 Petrol - AJ133) of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR010903
BOLT
knock sensor, M8 x 40MM 		$2.98 4
HS1 LR011700
SCREW
M8 X 35MM
IN STOCK 		$1.34 2
HS2 LR010905
SCREW
M6 x 35MM
IN STOCK 		$1.11 4
HS3 LR011271
SCREW
M6 x 30MM
IN STOCK 		$1.19 40
HS4 LR010904
SCREW
M6 X 20MM 		$1.19 2
6A536 LR038164
Seat - Spring
To: EA127647 		- 32 Enquire
6A536 LR054369
SEAT - SPRING
From: EA127648 / To: GA251058 		$5.02 32
6A536 LR078819
SEAT - SPRING
From: GA251059 		$4.98 32
6A809 LR077674
VALVE - CHECK 		$9.16 1
6D255 LR012112
SWITCH - SOLENOID CONTROL
Pressure Flow Control Switch 		$120.64 2
6F087 LR011688
RESTRICTOR - OIL
Oil 		$2.47 2
9W442 LR011996
TUBE - DRAIN
Drain 		$6.71 2
12A699 LR008877
SENSOR - ENGINE KNOCK 		$107.73 4
6049 LR038752
CYLINDER HEAD
RH / To: DA124953 		$2,671.24 1
6049 LR038753
CYLINDER HEAD
LH / To: DA124953 		$2,724.67 1
6049 LR082796
CYLINDER HEAD
RH / From: DA124954 		$2,474.80 1
6049 LR082797
CYLINDER HEAD
LH / From: DA124954 		$2,474.80 1
6051 LR105294
GASKET-CYLINDER HEAD
RH / To: DA124851 		$104.56 1
6051 LR181763
GASKET - CYLINDER HEAD
LH / To: DA124851 		$104.56 1
6051 LR084186
GASKET-CYLINDER HEAD
RH / From: DA124852 / To: GA271137 		$104.56 1
6051 LR084185
GASKET-CYLINDER HEAD
LH / From: DA124852 / To: GA271137 		$104.56 1
6051 LR105294
GASKET-CYLINDER HEAD
RH / From: GA271138 		$104.56 1
6051 LR181763
GASKET - CYLINDER HEAD
LH / From: GA271138 		$104.56 1
6065 LR026143
BOLT - HEX.HEAD
M11 X 178 		$6.09 20
6500A LR018270
TAPPET - VALVE
Inlet 		$119.52 16
6500B LR037205
TAPPET - VALVE
2.950mm 		$11.60 -
6500B LR037211
TAPPET - VALVE
2.965MM 		$10.93 -
6500B LR037229
TAPPET - VALVE
2.98MM 		$10.47 -
6500B LR037243
TAPPET - VALVE
2.995MM 		$10.47 -
6500B LR037252
TAPPET - VALVE
3.010MM 		$9.60 -
6500B LR037253
TAPPET - VALVE
3.025MM 		$9.20 -
6500B LR037254
TAPPET - VALVE
3.040MM 		$11.60 -
6500B LR037258
TAPPET - VALVE
3.055MM 		$10.56 -
6500B LR037262
TAPPET - VALVE
3.070MM 		$10.10 -
6500B LR037264
TAPPET - VALVE
3.085MM 		$11.60 -
6500B LR037267
TAPPET - VALVE
3.100MM 		$11.60 -
6500B LR037269
TAPPET - VALVE
3.115MM 		$11.05 -
6500B LR037272
TAPPET - VALVE
3.130MM 		$11.05 -
6500B LR037275
TAPPET - VALVE
3.145MM 		$11.60 -
6500B LR037279
TAPPET - VALVE
3.160MM 		$11.05 -
6500B LR037284
TAPPET - VALVE
3.175MM 		$11.05 -
6500B LR037286
TAPPET - VALVE
3.190MM 		$11.10 -
6500B LR037287
TAPPET - VALVE
3.205MM 		$11.60 -
6500B LR037288
TAPPET - VALVE
3.220MM 		$11.45 -
6500B LR037289
TAPPET - VALVE
3.235MM 		$11.10 -
6500B LR037292
TAPPET - VALVE
3.250MM 		$11.10 -
6500B LR037298
TAPPET - VALVE
3.265MM 		$11.60 -
6500B LR037306
TAPPET - VALVE
3.280MM 		$11.10 -
6500B LR037307
TAPPET - VALVE
3.295MM 		$11.60 -
6500B LR037308
TAPPET - VALVE
3.310MM
IN STOCK 		$11.60 -
6500B LR037309
TAPPET - VALVE
3.325MM 		$11.60 -
6500B LR037310
TAPPET - VALVE
3.340MM
IN STOCK 		$11.60 -
6500B LR037311
TAPPET - VALVE
3.355MM
IN STOCK 		$11.10 -
6500B LR037312
TAPPET - VALVE
3.370MM 		$11.45 -
6500B LR037313
TAPPET - VALVE
3.385MM
IN STOCK 		$11.60 -
6500B LR037314
TAPPET - VALVE
3.400MM 		$11.60 -
6500B LR037315
TAPPET - VALVE
3.415MM 		$11.60 -
6500B LR037316
TAPPET - VALVE
3.430MM 		$11.45 -
6500B LR037317
TAPPET - VALVE
3.445MM 		$11.60 -
6500B LR037318
TAPPET - VALVE
3.460MM
IN STOCK 		$10.56 -
6500B LR037322
TAPPET - VALVE
3.475MM
IN STOCK 		$11.60 -
6500B LR037328
TAPPET - VALVE
3.490MM 		$11.60 -
6500B LR037329
TAPPET - VALVE
3.505MM 		$11.10 -
6500B LR037330
TAPPET - VALVE
3.520MM 		$11.45 -
6500B LR037331
TAPPET - VALVE
3.535MM 		$10.56 -
6500B LR037332
TAPPET - VALVE
3.550MM 		$11.05 -
6500B LR037333
TAPPET - VALVE
3.565MM 		$11.60 -
6500B LR037334
TAPPET - VALVE
3.580MM 		$11.10 -
6500B LR037335
TAPPET - VALVE
3.595MM 		$11.05 -
6500B LR037336
TAPPET - VALVE
3.610MM 		$11.60 -
6500B LR037343
TAPPET - VALVE
3.625MM 		$11.60 -
6500B LR037344
TAPPET - VALVE
3.640MM 		$11.60 -
6500B LR037345
TAPPET - VALVE
3.655MM 		$11.60 -
6500B LR037346
TAPPET - VALVE
3.670MM 		$10.56 -
6500B LR037347
TAPPET - VALVE
3.685MM 		$11.60 -
6505 LR035551
VALVE - EXHAUST
To: EA143193 		$31.82 16
6505 LR055528
VALVE - EXHAUST
From: EA143194 / To: GA259693 		$28.47 16
6505 LR082739
VALVE - EXHAUST
From: GA259694 		$28.58 16
6507 LR010699
VALVE - INLET 		$37.35 16
6513A LR038175
SPRING - VALVE
Inlet 		$54.38 16
6513B LR038167
SPRING - VALVE
Exhaust 		$57.46 16
6514 LR010702
RETAINER - VALVE SPRING 		$4.32 32
6518 LR008878
COLLET - VALVE SPRING RETAINER
IN STOCK 		$1.30 64
