Name: Timing Gear (Solihull Plant Build, Auxiliary Drive) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)
Rating: 4.2 (1 reviews)

Timing Gear (Solihull Plant Build, Auxiliary Drive) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Timing Gear (Solihull Plant Build, Auxiliary Drive) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

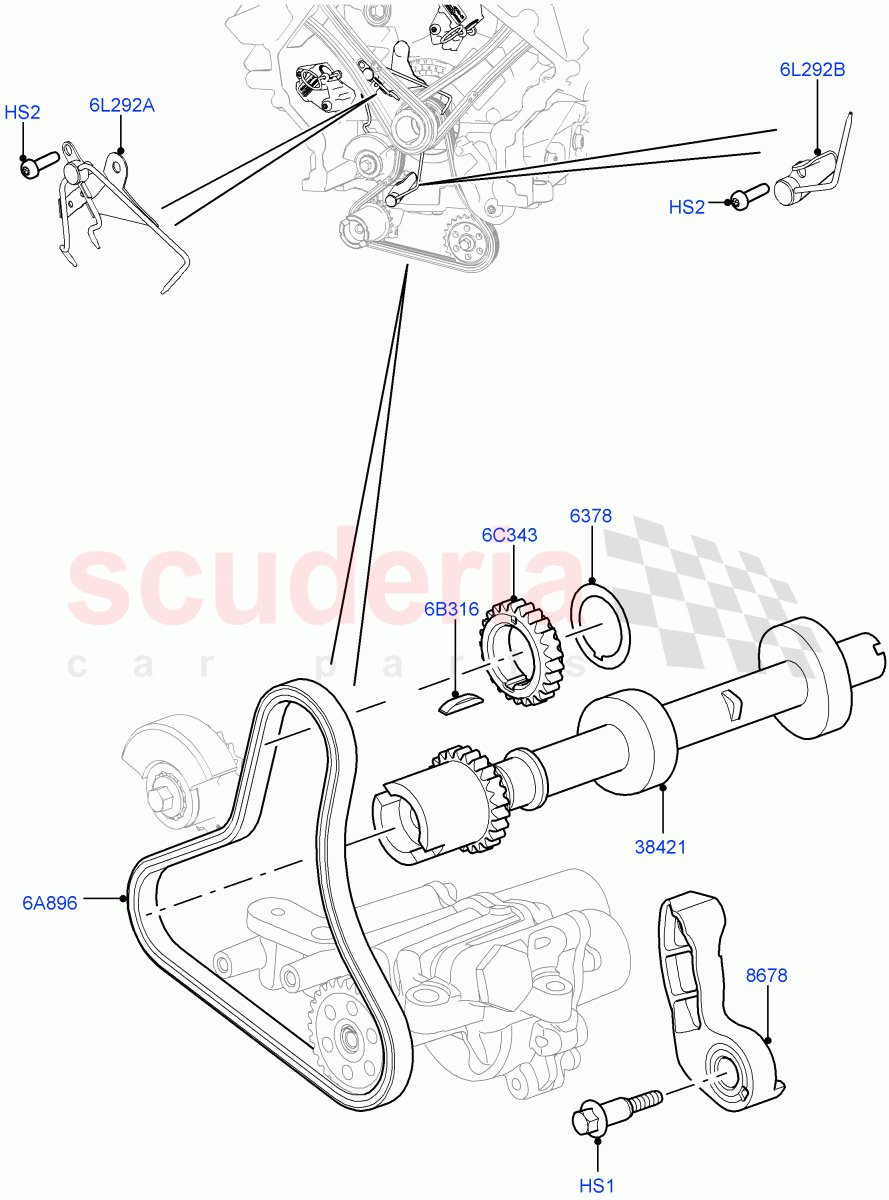

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011522	SCREW	$2.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010696	WASHER - CRANKSHAFT SPROCKET	$26.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041674	TENSIONER - DRIVE CHAIN	$17.49	To Order
	LR052911	TENSIONER - DRIVE CHAIN	$26.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037021	SHAFT - FUEL PUMP DRIVE	$599.06	To Order
	LR067417	SHAFT - FUEL PUMP DRIVE	$274.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032087	CHAIN - AUXILIARY DRIVE	$49.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010691	KEY - WOODRUFF	$2.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072611	SPROCKET - CRANKSHAFT	$53.20	To Order
	LR072611	SPROCKET - CRANKSHAFT	$53.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041774	JET - CHAIN LUBRICATING	$74.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042667	JET - CHAIN LUBRICATING	$25.84	To Order
	LR059161	JET - CHAIN LUBRICATING	$17.96	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR011522	SCREW IN STOCK	LR011522 SCREW Auxiliary Drive, M8 X 45MM, Tensioner / From: EA000001 IN STOCK	$2.77	1
HS2	LR010904	SCREW	LR010904 SCREW M6 X 20MM, Washer Nozzle / From: EA000001	$1.19	2
6A896	LR032087	CHAIN - AUXILIARY DRIVE IN STOCK	LR032087 CHAIN - AUXILIARY DRIVE From: EA000001 IN STOCK	$49.69	1
6B316	LR010691	KEY - WOODRUFF	LR010691 KEY - WOODRUFF From: EA000001	$2.93	1
6C343	LR072611	SPROCKET - CRANKSHAFT	LR072611 SPROCKET - CRANKSHAFT Auxiliary Drive, Crankshaft / From: EA000001 / To: FA999999	$53.20	1
6C343	LR072611	SPROCKET - CRANKSHAFT	LR072611 SPROCKET - CRANKSHAFT Auxiliary Drive, Crankshaft / From: GA000001	$53.20	1
6L292A	LR041774	JET - CHAIN LUBRICATING	LR041774 JET - CHAIN LUBRICATING Chain Lubricating, Upper / From: EA000001	$74.00	1
6L292B	LR042667	JET - CHAIN LUBRICATING	LR042667 JET - CHAIN LUBRICATING Chain Lubricating, Lower / From: EA000001 / To: EA173150	$25.84	1
6L292B	LR059161	JET - CHAIN LUBRICATING IN STOCK	LR059161 JET - CHAIN LUBRICATING Chain Lubricating, Lower / From: EA173151 IN STOCK	$17.96	1
6378	LR010696	WASHER - CRANKSHAFT SPROCKET	LR010696 WASHER - CRANKSHAFT SPROCKET Crankshaft, Sprocket - Drive / From: EA000001	$26.05	1
8678	LR041674	TENSIONER - DRIVE CHAIN	LR041674 TENSIONER - DRIVE CHAIN Auxiliary Drive Chain / From: EA000001 / To: EA125071	$17.49	1
8678	LR052911	TENSIONER - DRIVE CHAIN	LR052911 TENSIONER - DRIVE CHAIN Auxiliary Drive Chain / From: EA125072	$26.41	1
38421	LR037021	SHAFT - FUEL PUMP DRIVE	LR037021 SHAFT - FUEL PUMP DRIVE With Sprocket / From: EA000001 / To: FA197718	$599.06	1
38421	LR067417	SHAFT - FUEL PUMP DRIVE	LR067417 SHAFT - FUEL PUMP DRIVE With Sprocket / From: FA197719	$274.40	1
