Timing Gear (Timing Chains, Tensioners, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover (2012-2021) [3.0 DOHC GDI SC V6 Petrol] - Timing Gear (Timing Chains, Tensioners, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V)...

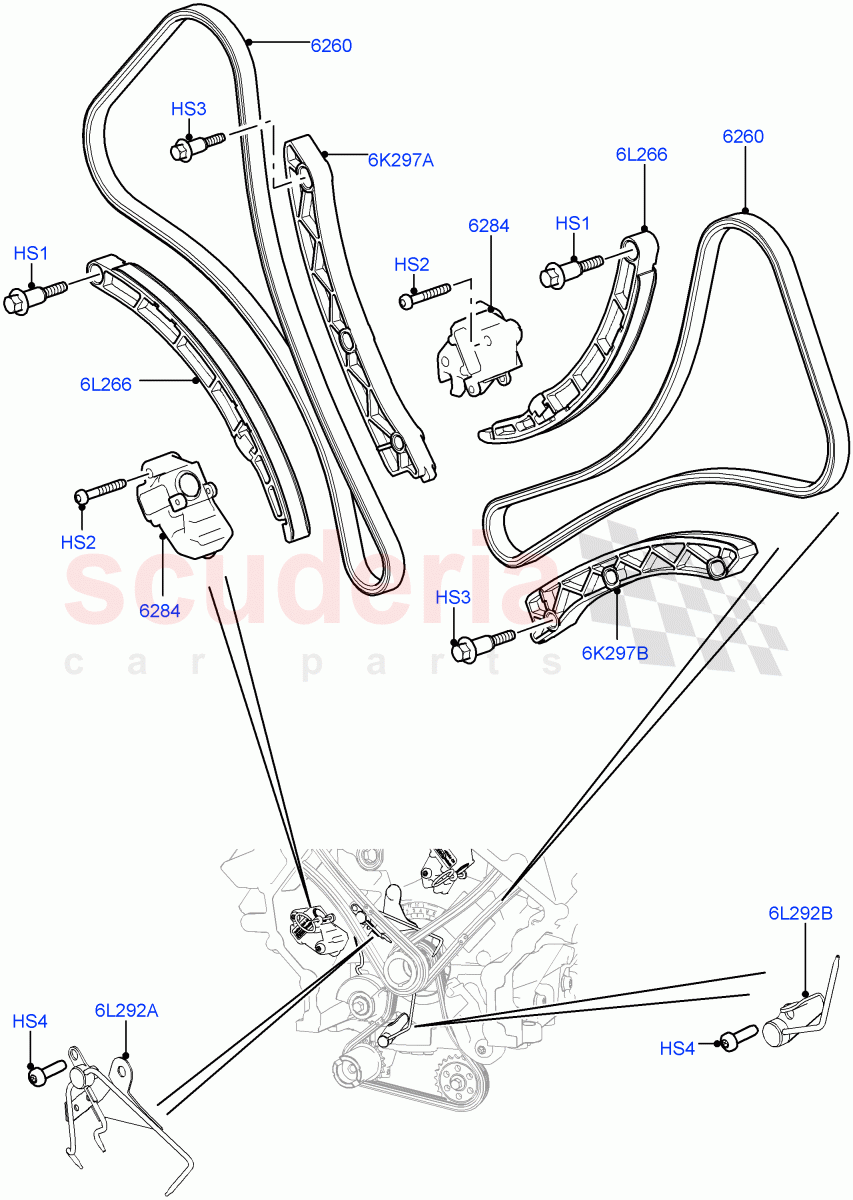

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011522	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011272	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011064	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032048	CHAIN - TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032088	TENSIONER - TIMING CHAIN	Enquire	To Order
	LR095472	TENSIONER - TIMING CHAIN	Enquire	To Order
	LR095472	TENSIONER - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040977	BLADE - TENSIONER	Enquire	To Order
	LR051013	BLADE - TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010765	GUIDE - TIMING CHAIN	Enquire	To Order
	LR051011	GUIDE - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012642	GUIDE - TIMING CHAIN	Enquire	To Order
	LR051012	GUIDE - TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041774	JET - CHAIN LUBRICATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042667	JET - CHAIN LUBRICATING	Enquire	To Order
	LR059161	JET - CHAIN LUBRICATING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR011522	SCREW	LR011522 SCREW M8 X 45MM, Tensioner / From: EA000001	-	2	Enquire
HS2	LR011272	SCREW	LR011272 SCREW M6 X 40MM, Torx / From: EA000001	-	4	Enquire
HS3	LR011064	SCREW	LR011064 SCREW Chain Guide, M6 X 38MM / From: EA000001	-	6	Enquire
HS4	LR010904	SCREW	LR010904 SCREW M6 X 20MM, Washer Nozzle / From: EA000001	-	2	Enquire
6K297A	LR010765	GUIDE - TIMING CHAIN	LR010765 GUIDE - TIMING CHAIN RH, Timing Chain / From: EA000001 / To: EA140967	-	1	Enquire
6K297A	LR051011	GUIDE - TIMING CHAIN	LR051011 GUIDE - TIMING CHAIN RH, Timing Chain / From: EA140968	-	1	Enquire
6K297B	LR012642	GUIDE - TIMING CHAIN	LR012642 GUIDE - TIMING CHAIN LH, Timing Chain / From: EA000001 / To: EA140967	-	1	Enquire
6K297B	LR051012	GUIDE - TIMING CHAIN	LR051012 GUIDE - TIMING CHAIN LH, Timing Chain / From: EA140968	-	1	Enquire
6L266	LR040977	BLADE - TENSIONER	LR040977 BLADE - TENSIONER Blade, If you change LR040977 and order a part after s/s, you will receive a kit contains new blade and tensioner., The old and the new parts cannot be mixed. / From: EA000001 / To: EA140967	-	2	Enquire
6L266	LR051013	BLADE - TENSIONER	LR051013 BLADE - TENSIONER Blade / From: EA140968	-	2	Enquire
6L292A	LR041774	JET - CHAIN LUBRICATING	LR041774 JET - CHAIN LUBRICATING Chain Lubricating, Upper / From: EA000001	-	1	Enquire
6L292B	LR042667	JET - CHAIN LUBRICATING	LR042667 JET - CHAIN LUBRICATING Chain Lubricating, Lower / From: EA000001 / To: EA173150	-	1	Enquire
6L292B	LR059161	JET - CHAIN LUBRICATING	LR059161 JET - CHAIN LUBRICATING Chain Lubricating, Lower / From: EA173151	-	1	Enquire
6260	LR032048	CHAIN - TIMING	LR032048 CHAIN - TIMING From: EA000001	-	2	Enquire
6284	LR032088	TENSIONER - TIMING CHAIN	LR032088 TENSIONER - TIMING CHAIN If you change LR032088 and order a part after s/s, you will receive a kit containing new blade and tensioner., The old and the new parts cannot be mixed. / From: EA000001 / To: EA140967	-	2	Enquire
6284	LR095472	TENSIONER - TIMING CHAIN	LR095472 TENSIONER - TIMING CHAIN From: EA140968 / To: HA322891	-	2	Enquire
6284	LR095472	TENSIONER - TIMING CHAIN	LR095472 TENSIONER - TIMING CHAIN From: HA322892	-	2	Enquire
