Find Your Part

View All

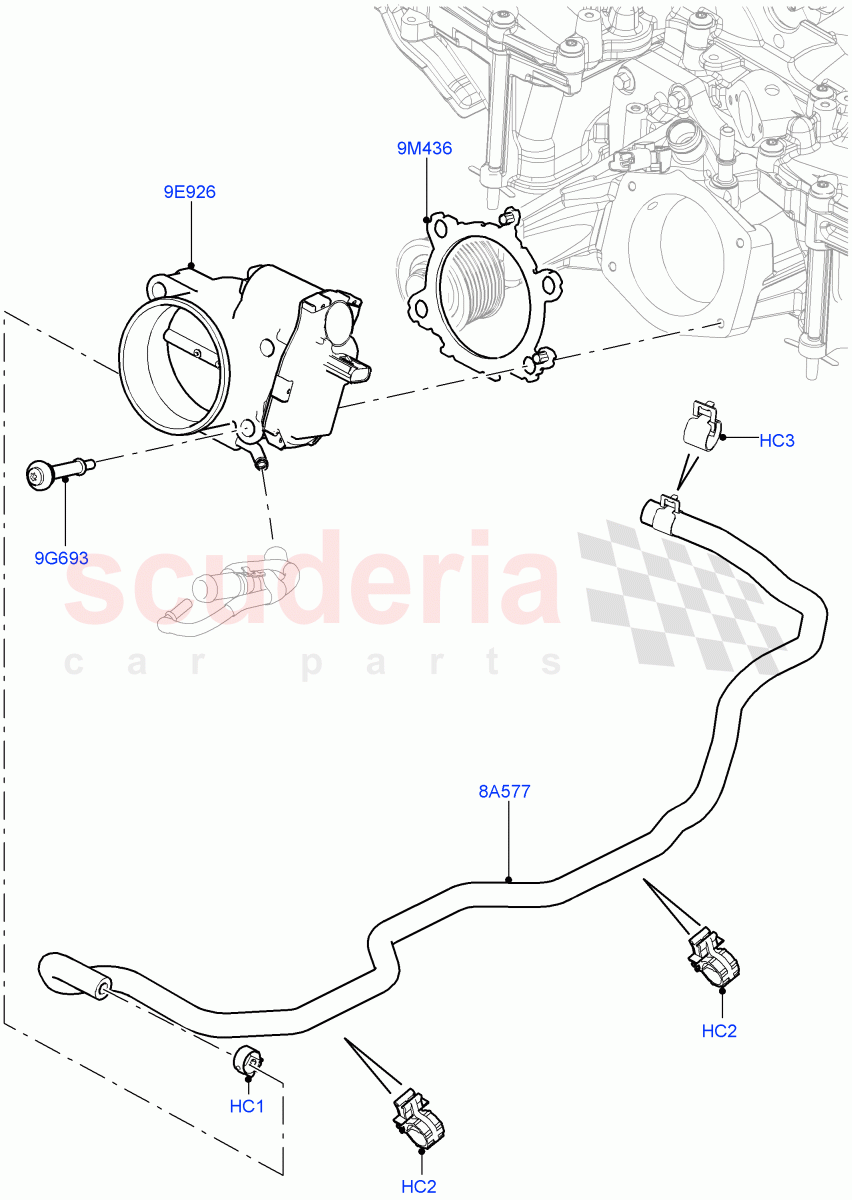

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011158	CLIP - HOSE	$3.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011221	CLIP	$2.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045334	CLIP - HOSE	$23.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041866	HOSE - THROTTLE BODY HEATER INLET	$34.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035563	THROTTLE BODY AND MOTOR	$401.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048165	GASKET - THROTTLE	$29.20	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR011158	CLIP - HOSE	LR011158 CLIP - HOSE 13-14 X 8, Hose - Throttle Body Heater / From: EA000001	$3.04	1
HC2	LR011221	CLIP	LR011221 CLIP Retainer / From: EA000001	$2.07	2
HC3	LR045334	CLIP - HOSE	LR045334 CLIP - HOSE 14 X 12, Hose - Throttle Body Heater / From: EA000001	$23.61	1
8A577	LR041866	HOSE - THROTTLE BODY HEATER INLET	LR041866 HOSE - THROTTLE BODY HEATER INLET Hose - Throttle Body Heater, Inlet / From: EA000001	$34.78	1
9E926	LR035563	THROTTLE BODY AND MOTOR	LR035563 THROTTLE BODY AND MOTOR From: EA000001	$401.20	1
9G693	LR010762	BOLT	LR010762 BOLT Throttle Body To Intake / From: EA000001 / To: FA999999	$10.99	4
9G693	LR083609	BOLT	LR083609 BOLT Throttle Body To Intake / From: GA000001	$8.37	4
9M436	LR048165	GASKET - THROTTLE	LR048165 GASKET - THROTTLE Throttle Body To Intake / From: EA000001	$29.20	1
