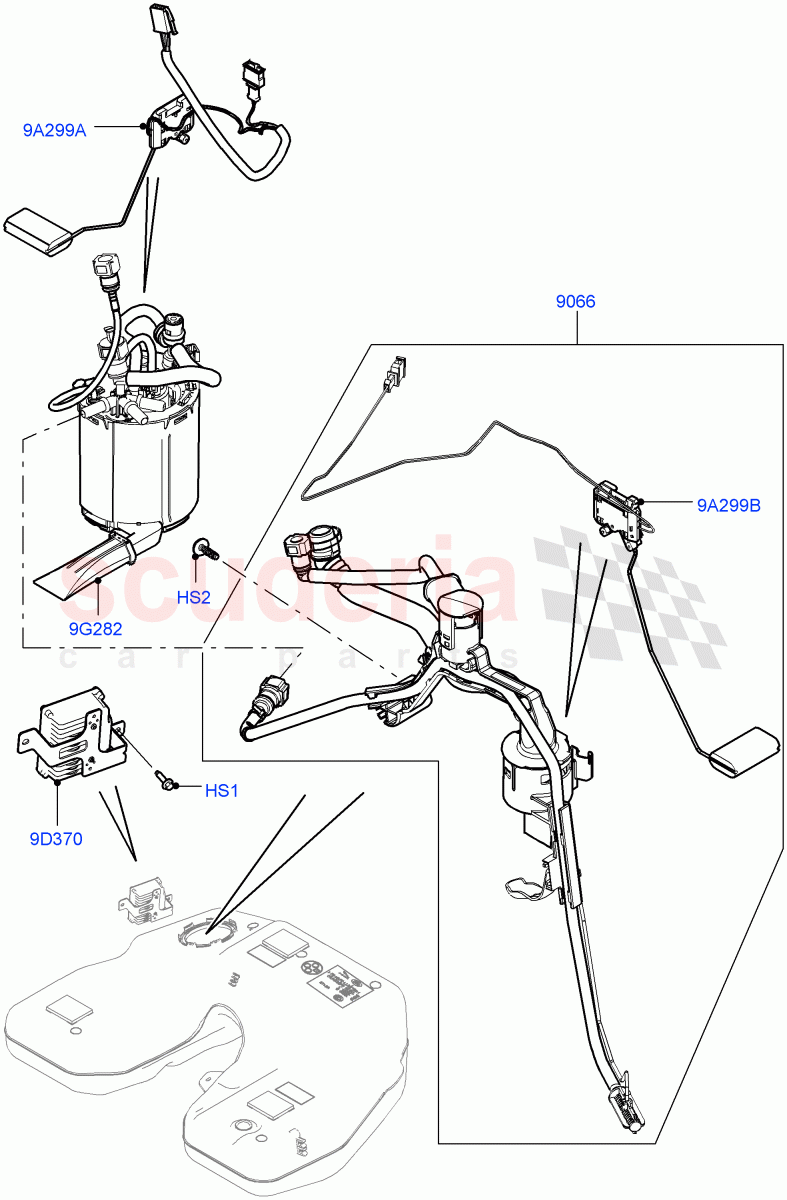

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038710	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039218	CONTROL - FUEL PUMP DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040878	PUMP - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050479	SENDER - FUEL TANK	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	RYG500220	SCREW	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: EA000001	-	2	Enquire
HS2	LR038710	SCREW - SELF-TAPPING	LR038710 SCREW - SELF-TAPPING M6 x 12MM / From: EA000001	-	1	Enquire
9A299A	LR036701	SENDER - FUEL TANK	LR036701 SENDER - FUEL TANK RH / From: EA000001 / To: GA273759	-	1	Enquire
9A299A	LR095885	SENDER - FUEL TANK	LR095885 SENDER - FUEL TANK RH / From: GA273760 / To: KA516416	-	1	Enquire
9A299A	LR124691	SENDER - FUEL TANK	LR124691 SENDER - FUEL TANK RH / From: KA516417	-	1	Enquire
9A299B	LR050479	SENDER - FUEL TANK	LR050479 SENDER - FUEL TANK LH / From: EA000001	-	1	Enquire
9D370	LR039218	CONTROL - FUEL PUMP DRIVE	LR039218 CONTROL - FUEL PUMP DRIVE From: EA000001 / To: GA999999	-	1	Enquire
9G282	LR040878	PUMP - FUEL	LR040878 PUMP - FUEL From: EA000001	-	1	Enquire
9066	LR049991	SENSOR - FUEL LEVEL	LR049991 SENSOR - FUEL LEVEL From: EA000001 / To: GA298486	-	1	Enquire
9066	LR079271	SENSOR - FUEL LEVEL	LR079271 SENSOR - FUEL LEVEL From: GA298487 / To: GA999999	-	1	Enquire
