Rear Springs And Shock Absorbers

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Rear Springs And Shock Absorbers

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038196 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYC500220 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR044836 CONNECTOR - VALVE BLOCK TO PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR034278 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR034227 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR034277 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR041901 KIT - BOOT Enquire To Order
Photo Part No Description Price (each) Stock
LR034262 SPRING - AIR SUSPENSION Enquire To Order
LR034262 SPRING - AIR SUSPENSION Enquire To Order
LR101593 SPRING - AIR SUSPENSION Enquire To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR034264 BUMPER - SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
LR034276 SEAL - STRUT TOP Enquire To Order
Photo Part No Description Price (each) Stock
LR034244 REINFORCEMENT - SUSPENSION BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR034265 SHOCK ABSORBER - REAR Enquire To Order
LR034266 SHOCK ABSORBER - REAR Enquire To Order
LR034270 SHOCK ABSORBER - REAR Enquire To Order
...and 10 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR034240 SHOCK ABSORBER - REAR Enquire To Order
LR034240 SHOCK ABSORBER - REAR Enquire To Order
LR034241 SHOCK ABSORBER - REAR Enquire To Order
...and 5 more part variants. See table on right for more details.
View All

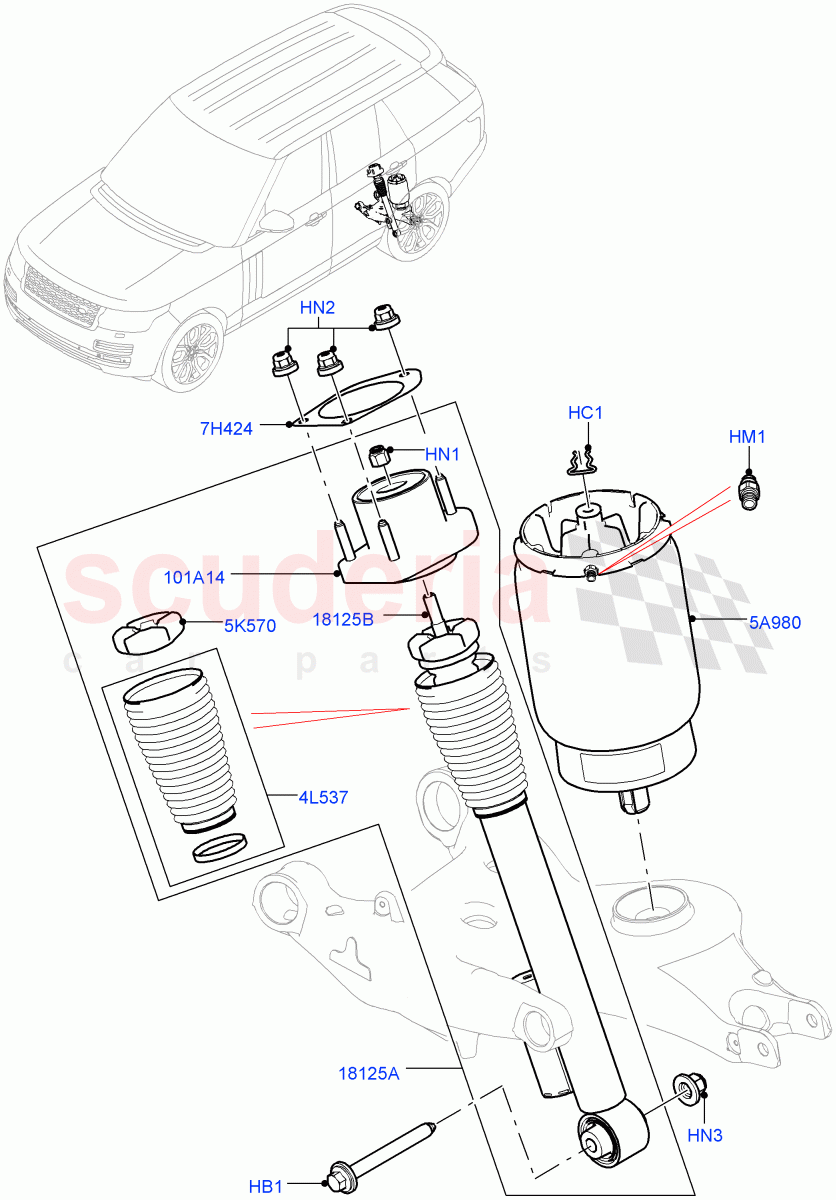

Rear Springs And Shock Absorbers of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR038196
BOLT
Hexagonal Head, M14 X 125 		- 2 Enquire
HC1 RYC500220
CLIP
Air Spring 		- 2 Enquire
HM1 LR044836
CONNECTOR - VALVE BLOCK TO PIPE
6MM, Air Tube Connector 		- 2 Enquire
HN1 LR034278
NUT
M12 x 1 		- 2 Enquire
HN2 LR034227
NUT - FLANGED
M10 		- 6 Enquire
HN3 LR034277
NUT
M14, Nut And Washer 		- 2 Enquire
4L537 LR041901
KIT - BOOT
Less Version Package / Includes Boot And Clip 		- 1 Enquire
5A980 LR034262
SPRING - AIR SUSPENSION
Less Version Package / RH/LH / To: HA999999 		- 2 Enquire
5A980 LR034262
SPRING - AIR SUSPENSION
3.0L AJ20D6 Diesel High, With Four Corner Air Suspension / RH / From: JA000001 		- 1 Enquire
5A980 LR101593
SPRING - AIR SUSPENSION
5.0L P AJ133 DOHC CDA S/C Enhanced, Standard Wheelbase / LH / From: JA000001 		- 1 Enquire
5A980 LR104751
SPRING - AIR SUSPENSION
2.0L AJ200P Hi PHEV / LH / From: JA000001 		- 1 Enquire
5A980 LR100656
SPRING - AIR SUSPENSION
2.0L AJ200P Hi PHEV / RH / From: JA000001 		- 1 Enquire
5A980 LR101594
SPRING - AIR SUSPENSION
5.0L P AJ133 DOHC CDA S/C Enhanced, Long Wheelbase / RH / From: JA000001 		- 1 Enquire
5A980 LR101595
SPRING - AIR SUSPENSION
5.0L P AJ133 DOHC CDA S/C Enhanced, Long Wheelbase / LH / From: JA000001 		- 1 Enquire
5A980 LR101594
SPRING - AIR SUSPENSION
5.0 Petrol AJ133 DOHC CDA, Electronic Air Suspension With ACE / RH / From: KA000001 		- 1 Enquire
5A980 LR101594
SPRING - AIR SUSPENSION
5.0 Petrol AJ133 DOHC CDA, With Four Corner Air Suspension / RH / From: JA000001 / To: JA999999 		- 1 Enquire
5A980 LR101595
SPRING - AIR SUSPENSION
5.0 Petrol AJ133 DOHC CDA, Electronic Air Suspension With ACE / LH / From: KA000001 		- 1 Enquire
5A980 LR101595
SPRING - AIR SUSPENSION
5.0 Petrol AJ133 DOHC CDA, With Four Corner Air Suspension / LH / From: JA000001 / To: JA999999 		- 1 Enquire
5A980 LR034262
SPRING - AIR SUSPENSION
5.0 Petrol AJ133 DOHC CDA, With Four Corner Air Suspension / RH / From: KA000001 		- 1 Enquire
5A980 LR101593
SPRING - AIR SUSPENSION
5.0 Petrol AJ133 DOHC CDA, With Four Corner Air Suspension / LH / From: KA000001 		- 1 Enquire
5K570 LR034264
BUMPER - SHOCK ABSORBER
Less Version Package / RH/LH, Shock Absorber 		- 2 Enquire
7H424 LR034276
SEAL - STRUT TOP
Antisqueak, RH/LH 		- 2 Enquire
101A14 LR034244
REINFORCEMENT - SUSPENSION BRACKET
Less Version Package / RH/LH, Shock Absorber 		- 2 Enquire
18125A LR034265
SHOCK ABSORBER - REAR
3.0 V6 Diesel / RH, With Reinforcement, Seal And Nut / To: HA999999 		- 1 Enquire
18125A LR034266
SHOCK ABSORBER - REAR
4.4L DOHC DITC V8 Diesel / RH, With Reinforcement, Seal And Nut / To: HA999999 		- 1 Enquire
18125A LR034270
SHOCK ABSORBER - REAR
3.0 V6 Diesel / LH, With Reinforcement, Seal And Nut / To: HA999999 		- 1 Enquire
18125A LR034271
SHOCK ABSORBER - REAR
4.4L DOHC DITC V8 Diesel / LH, With Reinforcement, Seal And Nut / To: HA999999 		- 1 Enquire
18125A LR034265
SHOCK ABSORBER - REAR
3.0L DOHC GDI SC V6 PETROL, Less Version Package / RH, With Reinforcement, Seal And Nut / From: EA000001 / To: HA999999 		- 1 Enquire
18125A LR034270
SHOCK ABSORBER - REAR
3.0L DOHC GDI SC V6 PETROL, Less Version Package / LH, With Reinforcement, Seal And Nut / From: EA000001 / To: HA999999 		- 1 Enquire
18125A LR100673
SHOCK ABSORBER - REAR
2.0L AJ200P Hi PHEV / RH, With Reinforcement, Seal And Nut / From: JA000001 		- 1 Enquire
18125A LR100687
SHOCK ABSORBER - REAR
2.0L AJ200P Hi PHEV / LH, With Reinforcement, Seal And Nut / From: JA000001 		- 1 Enquire
18125A LR098795
SHOCK ABSORBER - REAR
3.0L AJ20P6 Petrol High / LH, With Reinforcement, Seal And Nut / From: JA000001 		- 1 Enquire
18125A LR098792
SHOCK ABSORBER - REAR
5.0L P AJ133 DOHC CDA S/C Enhanced, Long Wheelbase / LH, With Reinforcement, Seal And Nut / From: JA000001 		- 1 Enquire
18125A LR098788
SHOCK ABSORBER - REAR
3.0 V6 D Gen2 Mono Turbo / RH, With Reinforcement, Seal And Nut / From: JA000001 		- 1 Enquire
18125A LR111854
SHOCK ABSORBER - REAR
5.0L P AJ133 DOHC CDA S/C Enhanced, Long Wheelbase / RH, With Reinforcement, Seal And Nut / From: JA000001 		- 1 Enquire
18125A LR104031
SHOCK ABSORBER - REAR
5.0L P AJ133 DOHC CDA S/C Enhanced, Standard Wheelbase / RH And LH, Serviced As An Assembly Only / From: JA000001 / To: KA999999 		- 2 Enquire
18125B LR034240
SHOCK ABSORBER - REAR
3.0 V6 Diesel / Less Reinforcement, Seal And Nut, RH/LH / To: HA999999 		- 2 Enquire
18125B LR034240
SHOCK ABSORBER - REAR
3.0L DOHC GDI SC V6 PETROL, Less Version Package / Less Reinforcement, Seal And Nut, RH/LH / From: EA000001 / To: HA999999 		- 2 Enquire
18125B LR034241
SHOCK ABSORBER - REAR
4.4L DOHC DITC V8 Diesel / Less Reinforcement, Seal And Nut, RH/LH / To: HA999999 		- 2 Enquire
18125B LR034241
SHOCK ABSORBER - REAR
3.0 V6 Diesel Electric Hybrid Eng / Less Reinforcement, Seal And Nut, RH/LH / From: FA000001 / To: HA999999 		- 2 Enquire
18125B LR105976
SHOCK ABSORBER
2.0L AJ200P Hi PHEV / Less Reinforcement, Seal And Nut, RH/LH / From: JA000001 		- 2 Enquire
18125B LR105977
SHOCK ABSORBER
5.0L P AJ133 DOHC CDA S/C Enhanced, Less Version Package / Less Reinforcement, Seal And Nut, RH/LH / From: JA000001 / To: JA511168 		- 2 Enquire
18125B LR105978
SHOCK ABSORBER
3.0L DOHC GDI SC V6 PETROL / Less Reinforcement, Seal And Nut, RH/LH / From: JA000001 		- 2 Enquire
18125B LR118258
SHOCK ABSORBER
5.0L P AJ133 DOHC CDA S/C Enhanced, Less Version Package / Less Reinforcement, Seal And Nut, RH/LH / From: JA511169 		- 2 Enquire
