Air Suspension Compressor And Lines (Compressor Assy) ((V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Air Suspension Compressor And Lines (Compressor Assy) ((V) TOHA999999)

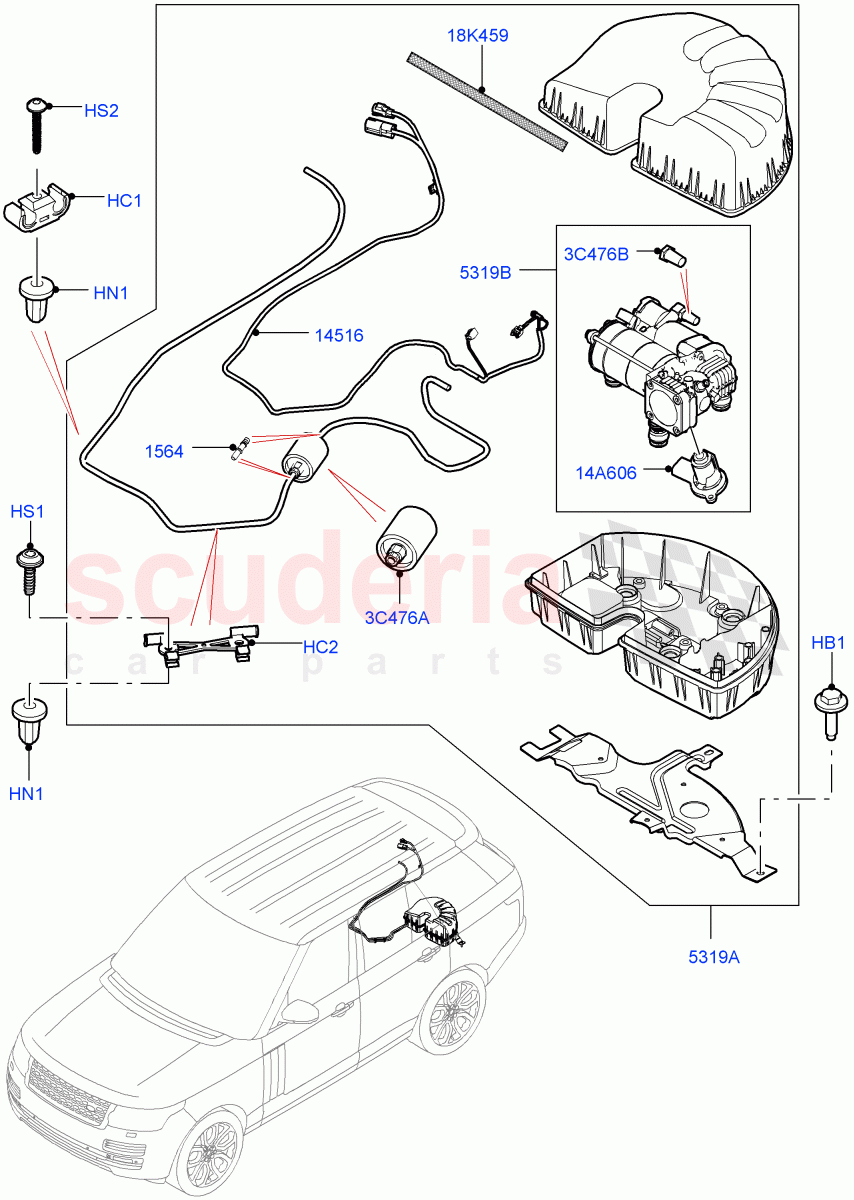

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR009266	BOLT M6 X 24	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038634	CLIP - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048340	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500840	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035842	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034035	SCREW - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052964	CONNECTOR - PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062625	WIRE - AIR COMPRESSOR	Enquire	To Order
	LR078807	WIRE - AIR COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037070	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order
	LR047172	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order
	LR056304	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR088859	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075759	VALVE - SOLENOID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052962	SLEEVE - PROTECTIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045919	SILENCER - SUSPENSION COMPRESSOR	Enquire	To Order
	LR045919	SILENCER - SUSPENSION COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088858	SILENCER - SUSPENSION COMPRESSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR009266	BOLT M6 X 24	LR009266 BOLT M6 X 24 Bolt And Washer, HEX Flange, Hexagonal Head, M6 X 24MM	-	2	Enquire
HC1	LR038634	CLIP - DOUBLE	LR038634 CLIP - DOUBLE Double	-	1	Enquire
HC2	LR048340	CLIP - SPECIAL	LR048340 CLIP - SPECIAL Double	-	1	Enquire
HN1	RYH500840	NUT	RYH500840 NUT M4, Plastic Nut	-	3	Enquire
HS1	LR035842	SCREW	LR035842 SCREW 4 X 16MM, Torx	-	2	Enquire
HS2	LR034035	SCREW - PAN - TORX	LR034035 SCREW - PAN - TORX M4 x 30MM, Torx	-	1	Enquire
3C476A	LR045919	SILENCER - SUSPENSION COMPRESSOR	LR045919 SILENCER - SUSPENSION COMPRESSOR Air Suspension Lines, Service Part Only / To: DA118530	-	1	Enquire
3C476A	LR045919	SILENCER - SUSPENSION COMPRESSOR	LR045919 SILENCER - SUSPENSION COMPRESSOR Air Suspension Lines, Production Installed / From: DA118531	-	1	Enquire
3C476B	LR088858	SILENCER - SUSPENSION COMPRESSOR	LR088858 SILENCER - SUSPENSION COMPRESSOR Compressor Assy	-	1	Enquire
14A606	LR075759	VALVE - SOLENOID	LR075759 VALVE - SOLENOID Solenoid - Air Suspension / From: FA000001	-	1	Enquire
18K459	LR052962	SLEEVE - PROTECTIVE	LR052962 SLEEVE - PROTECTIVE Air Suspension	-	1	Enquire
1564	LR052964	CONNECTOR - PIPE	LR052964 CONNECTOR - PIPE Air Suspension Lines	-	2	Enquire
5319A	LR037070	COMPRESSOR - SUSPENSION LEVELLING	LR037070 COMPRESSOR - SUSPENSION LEVELLING Includes Compressor, Bracket, Covers And Wire, Less Silencer / To: DA107500	-	1	Enquire
5319A	LR047172	COMPRESSOR - SUSPENSION LEVELLING	LR047172 COMPRESSOR - SUSPENSION LEVELLING Includes Compressor, Bracket, Covers And Wire, With Silencer / From: DA107501 / To: EA138527	-	1	Enquire
5319A	LR056304	COMPRESSOR - SUSPENSION LEVELLING	LR056304 COMPRESSOR - SUSPENSION LEVELLING Includes Compressor, Bracket, Covers And Wire, With Silencer / From: EA138528 / To: EA999999	-	1	Enquire
5319A	LR069691	COMPRESSOR - SUSPENSION LEVELLING	LR069691 COMPRESSOR - SUSPENSION LEVELLING Includes Compressor, Bracket, Covers And Wire, With Silencer / From: FA000001 / To: HA365702	-	1	Enquire
5319A	LR108984	COMPRESSOR - SUSPENSION LEVELLING	LR108984 COMPRESSOR - SUSPENSION LEVELLING Includes Compressor, Bracket, Covers And Wire, With Silencer / From: HA365703	-	1	Enquire
5319B	LR088859	COMPRESSOR - SUSPENSION LEVELLING	LR088859 COMPRESSOR - SUSPENSION LEVELLING	-	1	Enquire
14516	LR062625	WIRE - AIR COMPRESSOR	LR062625 WIRE - AIR COMPRESSOR To: GA251046	-	1	Enquire
14516	LR078807	WIRE - AIR COMPRESSOR	LR078807 WIRE - AIR COMPRESSOR From: GA251047	-	1	Enquire
