Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Fuel Lines (3.0L AJ20P6 Petrol High) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR071705 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR130622 PIPE - FUEL Enquire To Order
LR133741 PIPE - FUEL Enquire To Order
LR140080 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR082760 BRACKET - FUEL TUBE SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR131880 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
LR131898 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
LR137495 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR044464 PAD - FOAM Enquire To Order
View All

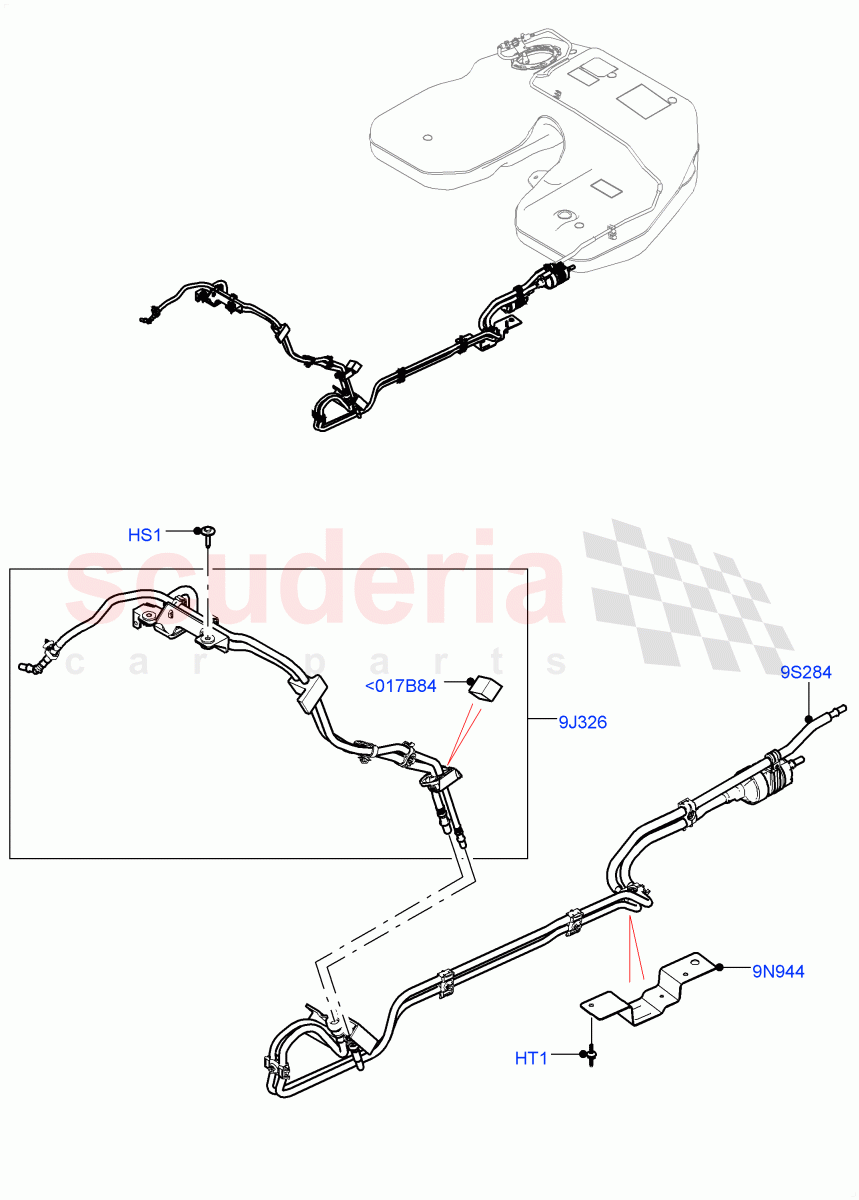

Fuel Lines (3.0L AJ20P6 Petrol High) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84 LR044464
PAD - FOAM
From: KA000001 		- 1 Enquire
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: KA000001 		- 2 Enquire
HT1 LR071705
STUD
M6 X 20 + M6 X 16 / From: KA000001 		- 2 Enquire
9J326 LR130622
PIPE - FUEL
From: KA000001 / To: KA567510 		- 1 Enquire
9J326 LR133741
PIPE - FUEL
From: KA567511 / To: LA595972 		- 1 Enquire
9J326 LR140080
PIPE - FUEL
From: LA595973 		- 1 Enquire
9N944 LR082760
BRACKET - FUEL TUBE SUPPORT
From: KA000001 		- 1 Enquire
9S284 LR131880
TUBE - FUEL SUPPLY AND VAPOUR
Long Wheelbase / From: KA000001 / To: LA573855 		- 1 Enquire
9S284 LR131898
TUBE - FUEL SUPPLY AND VAPOUR
Standard Wheelbase / From: KA000001 / To: LA573825 		- 1 Enquire
9S284 LR137495
TUBE - FUEL SUPPLY AND VAPOUR
Long Wheelbase / From: LA573856 		- 1 Enquire
9S284 LR137496
TUBE - FUEL SUPPLY AND VAPOUR
Standard Wheelbase / From: LA573826 		- 1 Enquire
