Name: Carbon Canister (3.0L AJ20P6 Petrol High, Petrol Tank With Leak Detection) ((V) FROMKA000001)
Rating: 5.0 (1 reviews)

Carbon Canister (3.0L AJ20P6 Petrol High, Petrol Tank With Leak Detection) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Carbon Canister (3.0L AJ20P6 Petrol High, Petrol Tank With Leak Detection) ((V) FROMKA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004596	CLIP	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044902	CLIP - HOSE	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	PEK500120	CLIP - HOSE	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	$2.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP501050	SCREW - PAN - TORX	$1.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027066	FILTER - FUEL	$87.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174757	VALVE - CONTROL	$187.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113351	RESERVOIR - FUEL VAPOUR SYSTEM	$636.33	To Order
	LR155136	RESERVOIR - FUEL VAPOUR SYSTEM	$664.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155089	BRACKET	$10.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089869	HOSE - FUEL	$24.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037482	HOSE - FUEL VAPOUR	$61.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086515	TUBE - VENTILATION	$62.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126104	TUBE - FUEL VAPOUR	$46.17	To Order
	LR173149	Tube - Fuel Vapour	$44.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR102055	MOUNTING - RUBBER	$11.16	To Order

View All

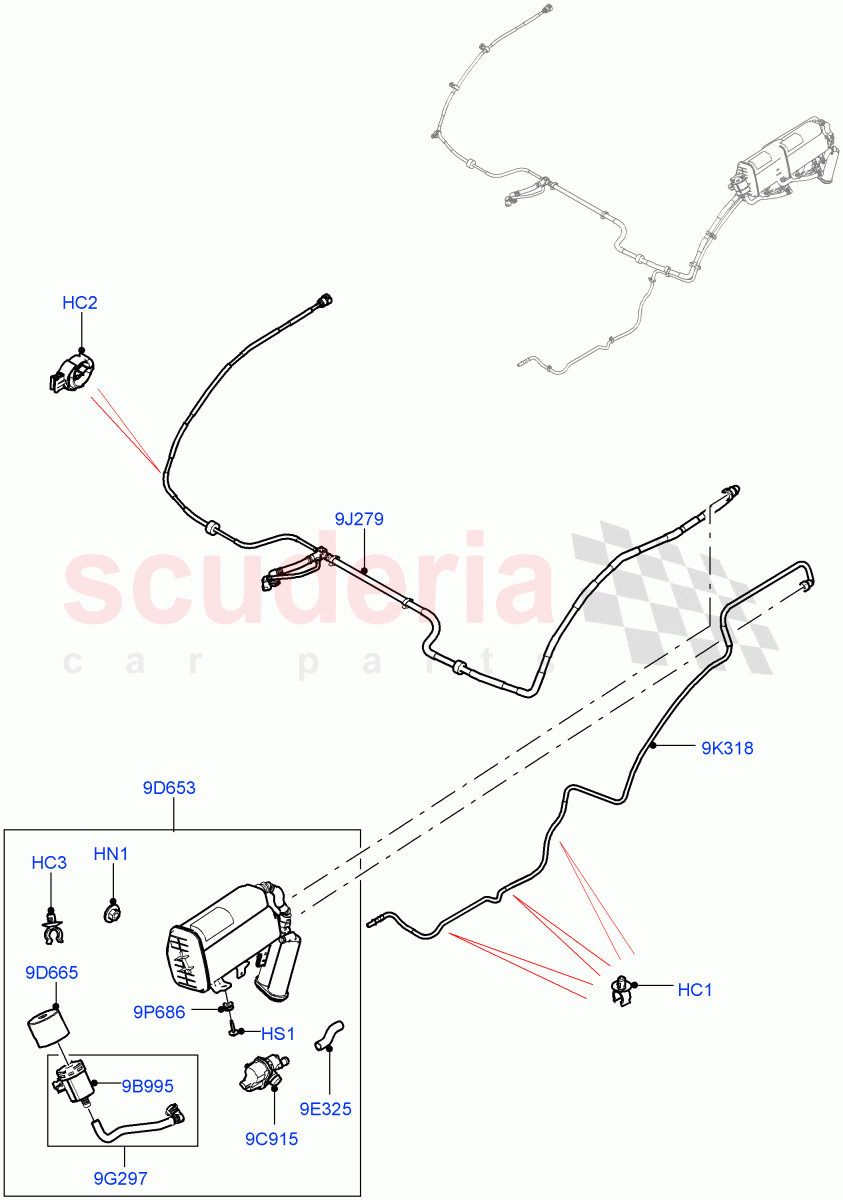

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR004596	CLIP	LR004596 CLIP 12 x 7.8X.8/4, Plastic / From: KA000001	$1.62	3
HC2	LR044902	CLIP - HOSE	LR044902 CLIP - HOSE 10-25 X 1.5-3, Plastic / From: KA000001	$2.38	1
HC3	PEK500120	CLIP - HOSE	PEK500120 CLIP - HOSE Tube Support / From: KA000001	$2.63	2
HN1	RYH500310	NUT AND WASHER - HEX. IN STOCK	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: KA000001 IN STOCK	$2.97	2
HS1	RYP501050	SCREW - PAN - TORX	RYP501050 SCREW - PAN - TORX M6 X 25MM, Torx / From: KA000001	$1.40	2
9B995	LR027066	FILTER - FUEL	LR027066 FILTER - FUEL From: KA000001	$87.66	1
9C915	LR174757	VALVE - CONTROL	LR174757 VALVE - CONTROL Pump - Diagnostic Monitoring Tank Leakage / From: KA000001	$187.80	1
9D653	LR113351	RESERVOIR - FUEL VAPOUR SYSTEM	LR113351 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: KA000001 / To: MA444815	$636.33	1
9D653	LR155136	RESERVOIR - FUEL VAPOUR SYSTEM	LR155136 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: MA444816	$664.00	1
9D665	LR155089	BRACKET	LR155089 BRACKET From: MA444816	$10.55	1
9E325	LR089869	HOSE - FUEL	LR089869 HOSE - FUEL From: KA000001	$24.22	1
9G297	LR037482	HOSE - FUEL VAPOUR	LR037482 HOSE - FUEL VAPOUR Canister vent / From: KA000001	$61.97	1
9J279	LR086515	TUBE - VENTILATION	LR086515 TUBE - VENTILATION From: KA000001 / To: NA472637	$62.36	1
9K318	LR126104	TUBE - FUEL VAPOUR	LR126104 TUBE - FUEL VAPOUR Fuel Vapor Cannister Purge - Outlet / From: KA000001 / To: NA472637	$46.17	1
9K318	LR173149	Tube - Fuel Vapour	LR173149 Tube - Fuel Vapour Fuel Vapor Cannister Purge - Outlet / From: NA472638	$44.14	1
9P686	LR102055	MOUNTING - RUBBER	LR102055 MOUNTING - RUBBER From: KA000001	$11.16	2
