Name: Rear Exhaust System (3.0L AJ20P6 Petrol High, Standard Wheelbase) ((V) FROMKA000001)
Rating: 4.3 (1 reviews)

Rear Exhaust System (3.0L AJ20P6 Petrol High, Standard Wheelbase) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Rear Exhaust System (3.0L AJ20P6 Petrol High, Standard Wheelbase) ((V) FROMKA000001)

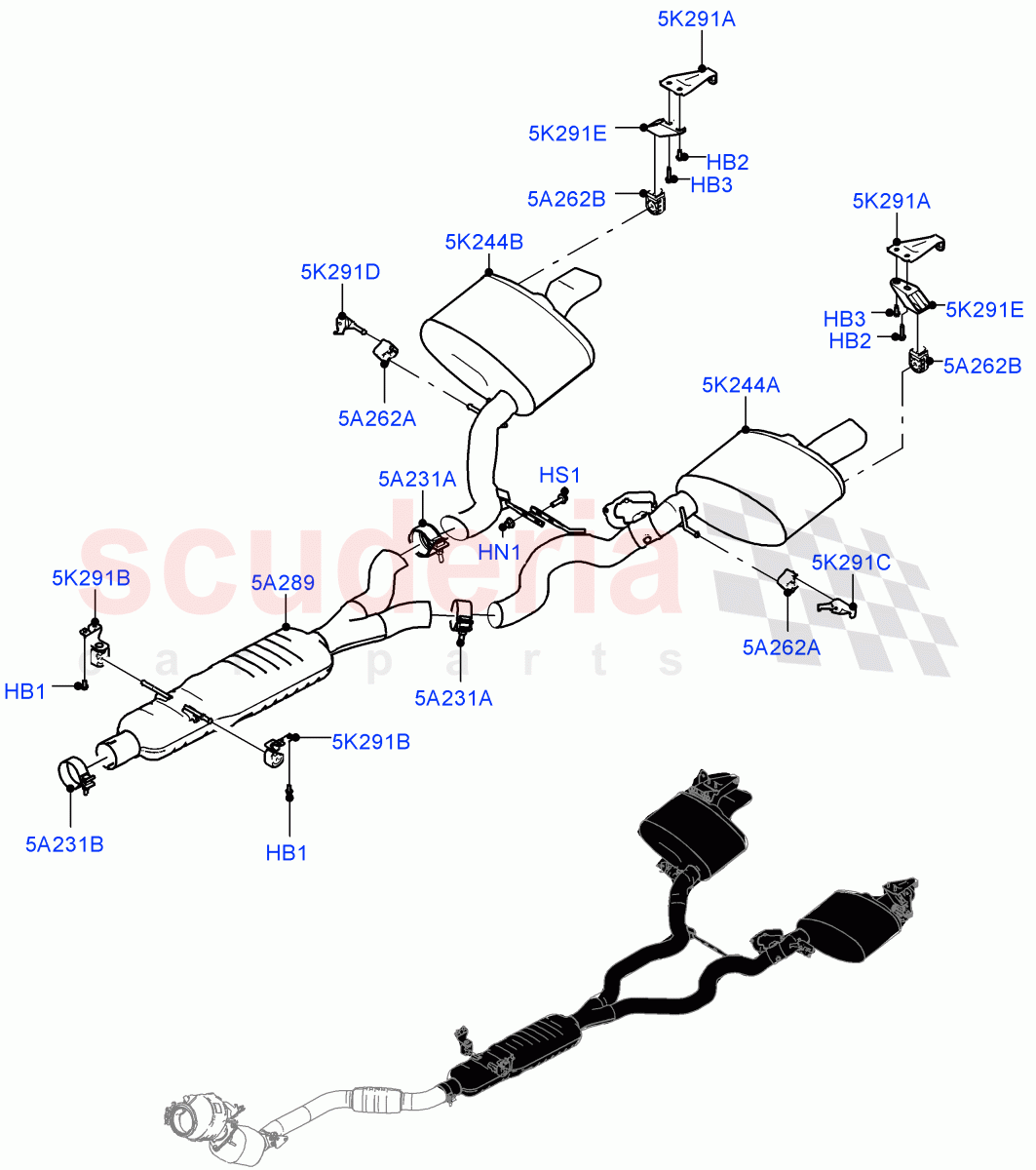

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049187	BOLT	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR125186	MUFFLER - CENTRE	$1,358.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088315	CLAMP - EXHAUST	$63.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125187	CLAMP	$31.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133405	INSULATOR - RUBBER	$66.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133402	MUFFLER - REAR	$759.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133403	MUFFLER - REAR	$759.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125300	BRACKET - EXHAUST PIPE MOUNTING	$33.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110248	BRACKET - REAR MUFFLER	$45.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125205	BRACKET - REAR MUFFLER	$29.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125204	BRACKET - REAR MUFFLER	$30.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR127513	BRACKET - EXHAUST PIPE MOUNTING	$37.83	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Bracket, Front, Hexagonal Head, M8 X 20MM / From: KA000001 IN STOCK	$2.23	4
HB2	RYG500440	BOLT	RYG500440 BOLT Bracket, Hexagonal Head, M8 X 20MM, Rear / From: KA000001	$0.99	2
HB3	LR049187	BOLT	LR049187 BOLT Bracket, M8 X 35MM, Rear / From: KA000001	$1.00	2
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Cross Brace, Hexagonal Head, M6 / From: KA000001 IN STOCK	$0.61	2
HS1	FS106206	SCREW IN STOCK	FS106206 SCREW Cross Brace, Hexagonal Head, M6 X 20MM / From: KA000001 IN STOCK	$0.97	2
5A231A	LR088315	CLAMP - EXHAUST	LR088315 CLAMP - EXHAUST 70MM / From: KA000001	$63.77	2
5A231B	LR125187	CLAMP	LR125187 CLAMP 75MM, Front / From: KA000001	$31.51	1
5A262A	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER For Rear Muffler, Front, RH/LH / From: KA000001	$23.23	2
5A262B	LR133405	INSULATOR - RUBBER	LR133405 INSULATOR - RUBBER For Rear Muffler, Rear, RH/LH / From: KA000001	$66.94	2
5A289	LR125186	MUFFLER - CENTRE	LR125186 MUFFLER - CENTRE From: KA000001	$1,358.45	1
5K244A	LR133402	MUFFLER - REAR	LR133402 MUFFLER - REAR LH / From: KA000001	$759.69	1
5K244B	LR133403	MUFFLER - REAR	LR133403 MUFFLER - REAR RH / From: KA000001	$759.69	1
5K291A	LR125300	BRACKET - EXHAUST PIPE MOUNTING	LR125300 BRACKET - EXHAUST PIPE MOUNTING For Rear Muffler, RH/LH, Upper / From: KA000001	$33.23	2
5K291B	LR110248	BRACKET - REAR MUFFLER	LR110248 BRACKET - REAR MUFFLER RH/LH, To Resonator / From: KA000001	$45.60	2
5K291C	LR125205	BRACKET - REAR MUFFLER	LR125205 BRACKET - REAR MUFFLER LH, For Rear Muffler, Front / From: KA000001	$29.50	1
5K291D	LR125204	BRACKET - REAR MUFFLER	LR125204 BRACKET - REAR MUFFLER RH, For Rear Muffler, Front / From: KA000001	$30.11	1
5K291E	LR127513	BRACKET - EXHAUST PIPE MOUNTING	LR127513 BRACKET - EXHAUST PIPE MOUNTING For Rear Muffler, Lower, RH/LH / From: KA000001	$37.83	2
