Exhaust Sensors And Modules (3.0L Aj20P6 Petrol High, China N6B (Petrol) - Compliance, Eu6D - Final...

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] - Exhaust Sensors And Modules (3.0L AJ20P6 Petrol High, China N6B (Petrol) - Compliance, EU6D - Final...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS108166 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR125299 SENSOR - EXHAUST GAS PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR135843 HEAT SHIELD - TRANSMISSION Enquire To Order
Photo Part No Description Price (each) Stock
LR135842 SENSOR - LAMBDA Enquire To Order
LR137721 SENSOR - HEGO Enquire To Order
Photo Part No Description Price (each) Stock
YQR000050 CLIP - WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR138049 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR122057 SENSOR - LAMBDA Enquire To Order
Photo Part No Description Price (each) Stock
LR122058 SENSOR - LAMBDA Enquire To Order
View All

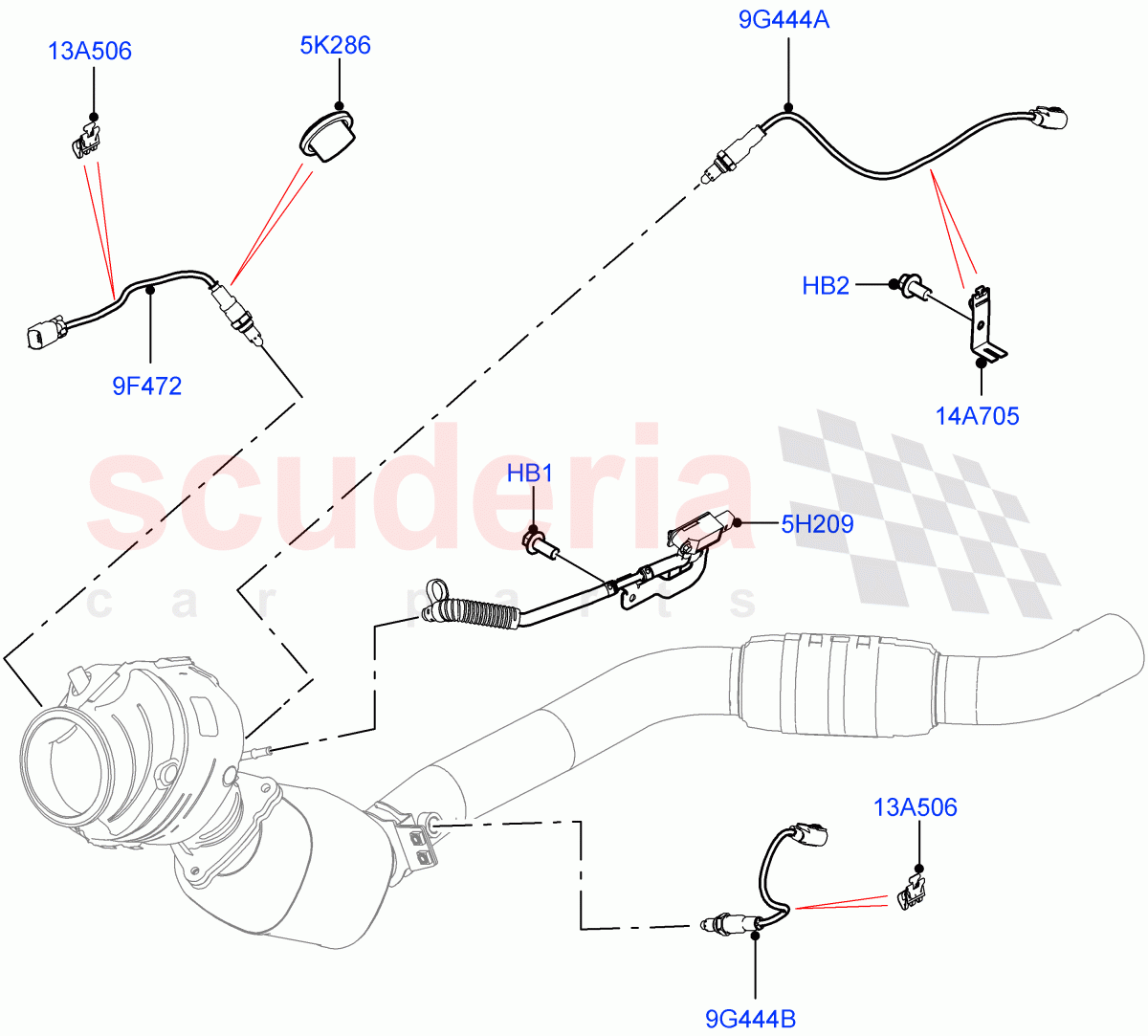

Exhaust Sensors And Modules (3.0L AJ20P6 Petrol High, China N6B (Petrol) - Compliance, EU6D - Final (Petrol) Emission, Beijing 6 Petrol Emission) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Exhaust Gas Pressure, Hexagonal Head, M8 X 20MM / From: KA000001 		- 2 Enquire
HB2 FS108166
BOLT
Bracket, Hexagonal Head, M8 X 16MM / From: KA000001 		- 1 Enquire
5H209 LR125299
SENSOR - EXHAUST GAS PRESSURE
Exhaust Gas Pressure / From: KA000001 		- 1 Enquire
5K286 LR135843
HEAT SHIELD - TRANSMISSION
Insert / From: KA000001 		- 1 Enquire
9F472 LR135842
SENSOR - LAMBDA
Exhaust Gas Oxygen, Front / From: KA000001 / To: MA428736 		- 1 Enquire
9F472 LR137721
SENSOR - HEGO
Exhaust Gas Oxygen, Front / From: MA428737 		- 1 Enquire
9G444A LR122057
SENSOR - LAMBDA
Centre, Exhaust Gas Oxygen / From: KA000001 		- 1 Enquire
9G444B LR122058
SENSOR - LAMBDA
Exhaust Gas Oxygen, Rear / From: KA000001 		- 1 Enquire
13A506 YQR000050
CLIP - WIRING
From: KA000001 		- 2 Enquire
14A705 LR138049
BRACKET
Centre, Exhaust Gas Oxygen / From: KA000001 		- 1 Enquire
