Name: Fuel Lines (Front) (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)
Rating: 4.4 (1 reviews)

Fuel Lines (Front) (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Fuel Lines (Front) (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

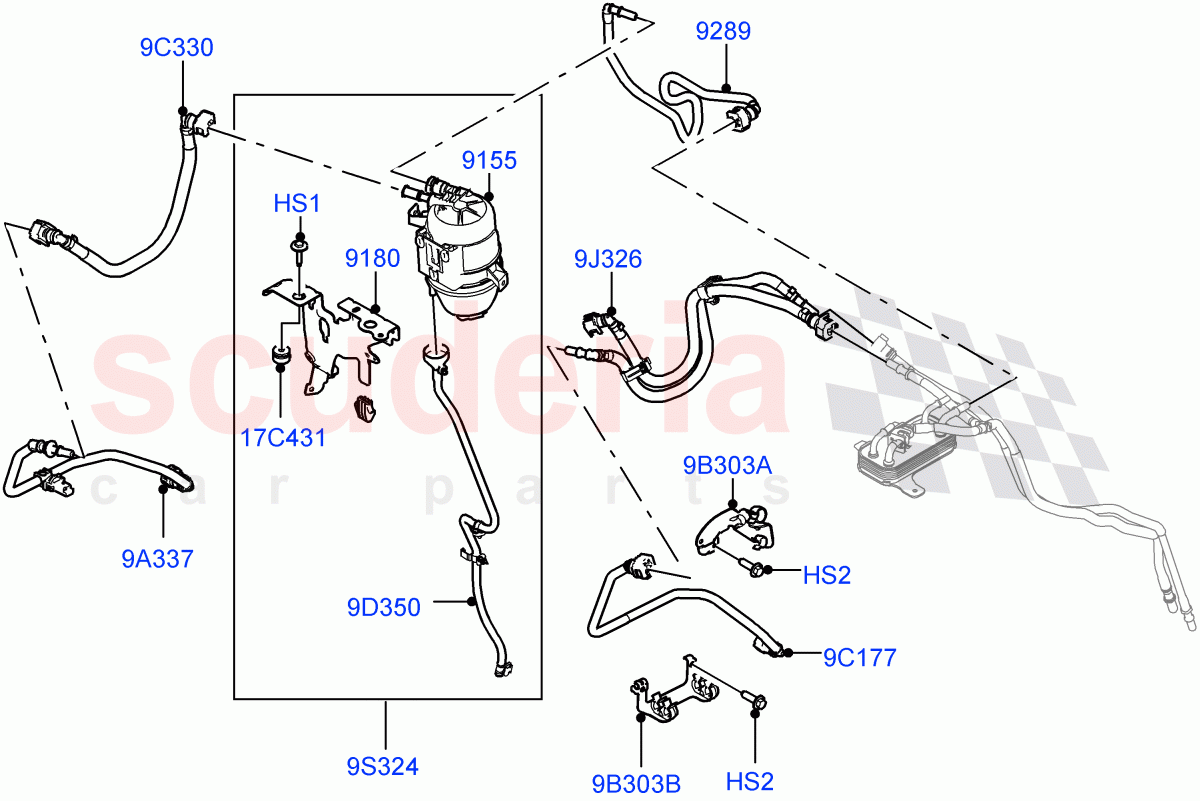

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125292	FILTER - FUEL - PRIMARY	$91.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125289	BRACKET - FUEL FILTER	$42.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125290	TUBE - FUEL	$51.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125526	TUBE - FUEL FILTER TO FUEL PUMP	$77.20	To Order
	LR144912	TUBE - FUEL FILTER TO FUEL PUMP	$76.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125509	PIPE - FUEL	$41.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125294	TUBE - FUEL FEED	$41.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082765	TUBE - FUEL	$36.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125303	PIPE - FUEL	$232.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125301	FILTER - FUEL - PRIMARY	$220.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081530	GROMMET - FUEL FILTER	$10.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125505	BRACKET - FUEL TUBE SUPPORT	$54.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125507	BRACKET - FUEL TUBE SUPPORT	$37.52	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: LA000001	$4.03	2
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: LA000001	$2.23	4
9A337	LR125526	TUBE - FUEL FILTER TO FUEL PUMP	LR125526 TUBE - FUEL FILTER TO FUEL PUMP From: LA000001 / To: MA424548	$77.20	1
9A337	LR144912	TUBE - FUEL FILTER TO FUEL PUMP	LR144912 TUBE - FUEL FILTER TO FUEL PUMP From: MA424549	$76.69	1
9B303A	LR125505	BRACKET - FUEL TUBE SUPPORT	LR125505 BRACKET - FUEL TUBE SUPPORT Upper / From: LA000001	$54.90	1
9B303B	LR125507	BRACKET - FUEL TUBE SUPPORT	LR125507 BRACKET - FUEL TUBE SUPPORT Lower / From: LA000001	$37.52	1
9C177	LR125509	PIPE - FUEL	LR125509 PIPE - FUEL From: LA000001	$41.47	1
9C330	LR125294	TUBE - FUEL FEED	LR125294 TUBE - FUEL FEED Fuel Filter To High Pressure Pump / From: LA000001	$41.06	1
9D350	LR082765	TUBE - FUEL	LR082765 TUBE - FUEL Drain / From: LA000001	$36.83	1
9J326	LR125303	PIPE - FUEL	LR125303 PIPE - FUEL Set Of 2 Pieces / From: LA000001	$232.91	1
9S324	LR125301	FILTER - FUEL - PRIMARY	LR125301 FILTER - FUEL - PRIMARY Complete Assembly / From: LA000001	$220.88	1
17C431	LR081530	GROMMET - FUEL FILTER	LR081530 GROMMET - FUEL FILTER From: LA000001	$10.58	2
9155	LR125292	FILTER - FUEL - PRIMARY	LR125292 FILTER - FUEL - PRIMARY From: LA000001	$91.18	1
9180	LR125289	BRACKET - FUEL FILTER	LR125289 BRACKET - FUEL FILTER From: LA000001	$42.33	1
9289	LR125290	TUBE - FUEL	LR125290 TUBE - FUEL Fuel Cooler To Filter Tube / From: LA000001	$51.99	1
