Fuel Cooler Assembly (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Fuel Cooler Assembly (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034354 BOLT - PAN - TORX Enquire To Order
Photo Part No Description Price (each) Stock
LR140906 HOSE - FUEL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR042509 BRACKET - FUEL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR038811 COOLER - FUEL Enquire To Order
View All

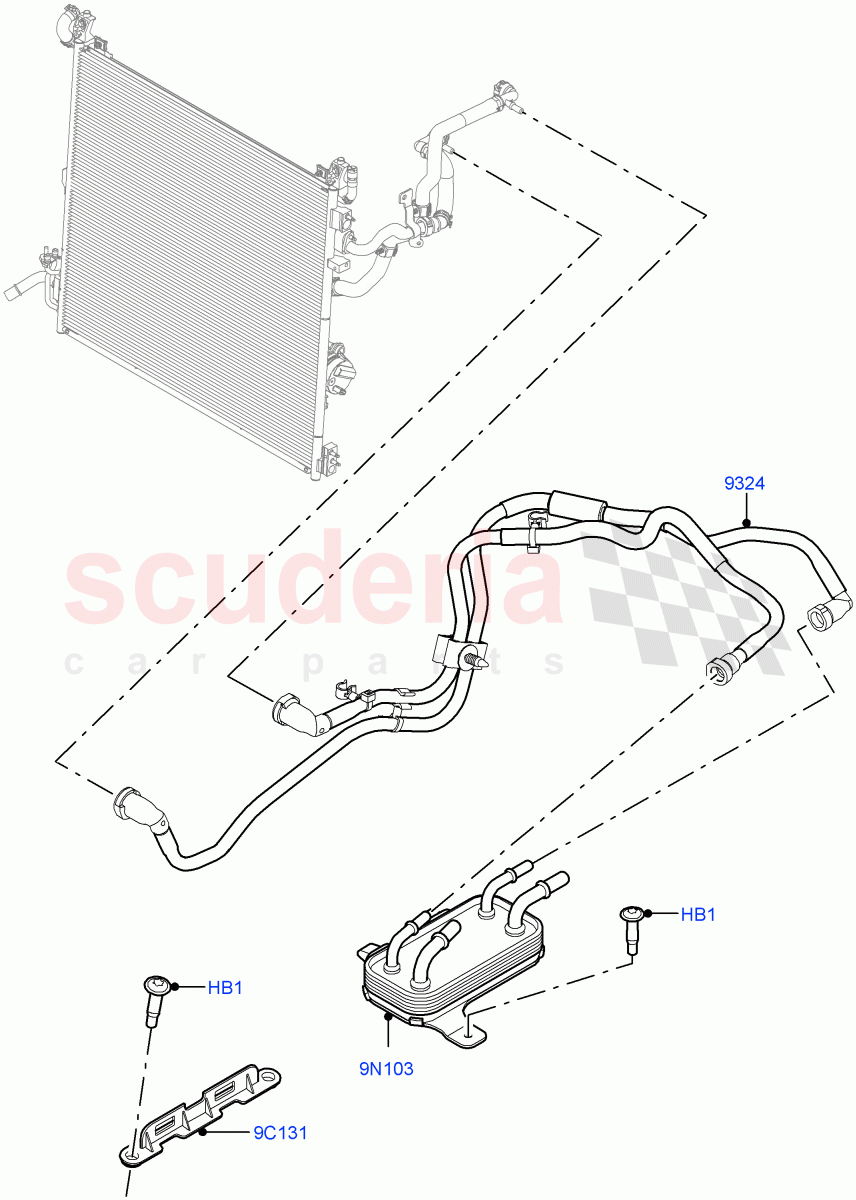

Fuel Cooler Assembly (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR034354
BOLT - PAN - TORX
M6 x 19MM, Torx / From: LA000001 		- 3 Enquire
9C131 LR042509
BRACKET - FUEL COOLER
From: LA000001 		- 1 Enquire
9N103 LR038811
COOLER - FUEL
From: LA000001 		- 1 Enquire
9324 LR140906
HOSE - FUEL COOLER
From: LA000001 		- 1 Enquire
