Oil Pump (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Oil Pump (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR121808 BOLT $1.88 IN STOCK
Photo Part No Description Price (each) Stock
LR133725 RING - SEALING $28.20 To Order
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.28 To Order
LR071842 SCREW AND WASHER - HEX HEAD $1.28 To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW $2.26 To Order
Photo Part No Description Price (each) Stock
LR148861 PUMP - OIL & VACUUM $639.91 To Order
LR164063 PUMP - OIL & VACUUM $715.06 To Order
Photo Part No Description Price (each) Stock
LR121353 TUBE - OIL PUMP INLET $79.24 To Order
Photo Part No Description Price (each) Stock
LR073751 CHAIN - OIL PUMP DRIVE $132.65 To Order
Photo Part No Description Price (each) Stock
LR125579 SPROCKET - CRANKSHAFT $101.44 To Order
Photo Part No Description Price (each) Stock
LR125586 SPROCKET - OIL PUMP DRIVE $77.34 To Order
Photo Part No Description Price (each) Stock
LR133727 WIRE - JUMPER $37.97 To Order
View All

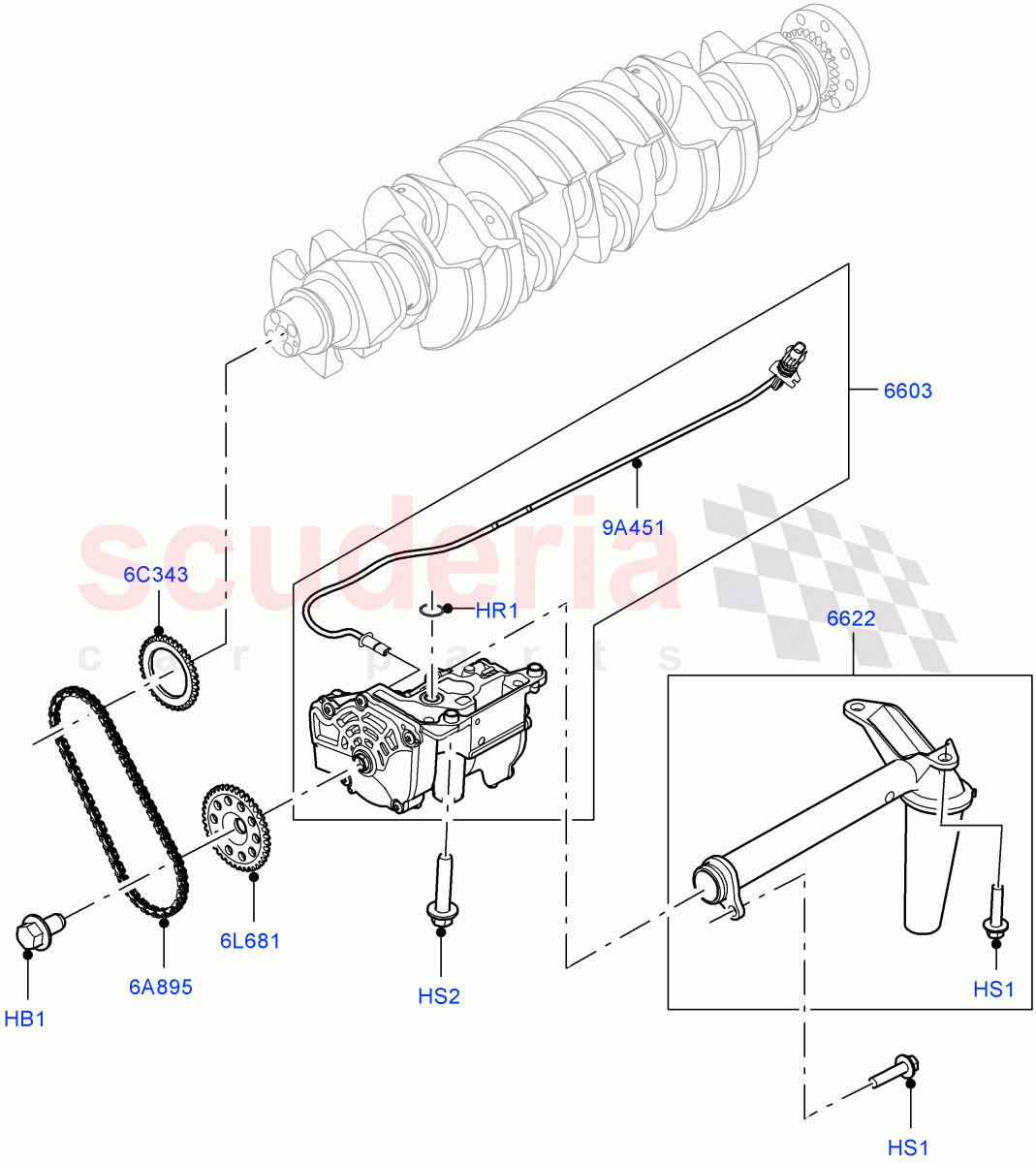

Oil Pump (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR121808
BOLT
M10 x 18MM / From: LA000001
IN STOCK 		$1.88 1
HR1 LR133725
RING - SEALING 		$28.20 1
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM, Pickup Pipe, To Engine / From: LA000001 		$1.28 2
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM, Pickup Pipe, To Pump / From: LA000001 		$1.28 1
HS2 LR073676
SCREW
M8 x 35mm, Oil Pump, To Engine / From: LA000001 		$2.26 3
6A895 LR073751
CHAIN - OIL PUMP DRIVE
From: LA000001 		$132.65 1
6C343 LR125579
SPROCKET - CRANKSHAFT
Crankshaft / From: LA000001 		$101.44 1
6L681 LR125586
SPROCKET - OIL PUMP DRIVE
Oil Pump / From: LA000001 		$77.34 1
9A451 LR133727
WIRE - JUMPER
From: LA000001 		$37.97 1
6603 LR148861
PUMP - OIL & VACUUM
From: LA000001 / To: MA456532 		$639.91 1
6603 LR164063
PUMP - OIL & VACUUM
From: MA456533 		$715.06 1
6622 LR121353
TUBE - OIL PUMP INLET
From: LA000001 		$79.24 1
