Oil Pan/Oil Level Indicator (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Oil Pan/Oil Level Indicator (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR133629 BOLT $1.39 To Order
Photo Part No Description Price (each) Stock
LR099964 CLIP $1.18 To Order
Photo Part No Description Price (each) Stock
LR078426 FASTENER - COVER $1.39 To Order
Photo Part No Description Price (each) Stock
LR074127 O-RING $4.96 To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW $2.26 To Order
Photo Part No Description Price (each) Stock
LR073677 SCREW $3.30 To Order
Photo Part No Description Price (each) Stock
LR074137 SCREW $1.86 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.23 To Order
Photo Part No Description Price (each) Stock
LR073635 SCREW $2.20 To Order
Photo Part No Description Price (each) Stock
LR089234 STUD $4.86 To Order
Photo Part No Description Price (each) Stock
LR126160 PIN - FASTENING $0.55 IN STOCK
Photo Part No Description Price (each) Stock
LR071767 RIVET - PLASTIC $2.92 To Order
Photo Part No Description Price (each) Stock
LR073675 PLUG - OIL DRAIN $7.90 IN STOCK
Photo Part No Description Price (each) Stock
LR125343 TUBE - OIL LEVEL INDICATOR $41.90 To Order
LR146150 TUBE - OIL LEVEL INDICATOR $53.14 To Order
Photo Part No Description Price (each) Stock
LR175751 PAN - ENGINE OIL $615.24 To Order
Photo Part No Description Price (each) Stock
LR121376 PAN - ENGINE OIL $377.85 To Order
Photo Part No Description Price (each) Stock
LR132045 TRAY - OIL $260.30 To Order
Photo Part No Description Price (each) Stock
LR123026 SHIELD - ENGINE PROTECTING $59.32 To Order
Photo Part No Description Price (each) Stock
LR133771 INSULATOR - ENGINE COMPARTMENT $37.91 To Order
Photo Part No Description Price (each) Stock
LR133770 INSULATOR - ENGINE COMPARTMENT $27.49 To Order
View All

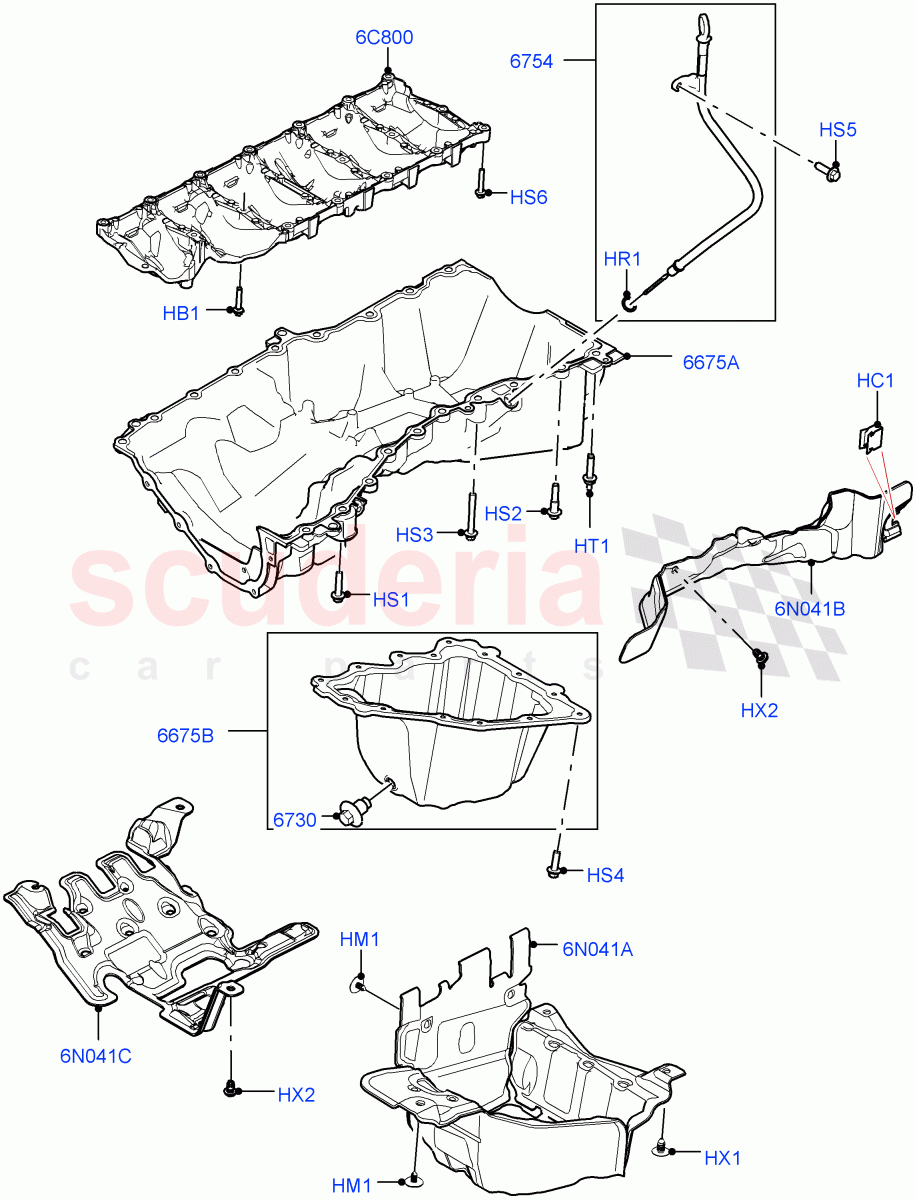

Oil Pan/Oil Level Indicator (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR133629
BOLT
M6 x 35MM, Middle, Windage Tray / From: LA000001 		$1.39 5
HC1 LR099964
CLIP
Insulator / From: LA000001 		$1.18 1
HM1 LR078426
FASTENER - COVER
4.75 x 0.76 - 7.9, Insulator, Pin - Retainer / From: LA000001 		$1.39 3
HR1 LR074127
O-RING
11.5 x 2 mm, Tube Indicator / From: LA000001 		$4.96 1
HS1 LR073676
SCREW
M8 x 35mm / From: LA000001 		$2.26 9
HS2 LR073677
SCREW
M8 x 42mm / From: LA000001 		$3.30 2
HS3 LR074137
SCREW
M8 x 60mm / From: LA000001 		$1.86 2
HS4 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: LA000001
IN STOCK 		$1.54 14
HS5 LR071774
SCREW
Hexagonal Head, M6 X 20MM, Oil Level Indicator / From: LA000001 		$2.23 1
HS6 LR073635
SCREW
M6 x 35MM, Windage Tray / From: LA000001 		$2.20 12
HT1 LR089234
STUD
M8 X 35 + M6 X 12 / From: LA000001 		$4.86 6
HX1 LR126160
PIN - FASTENING
6.5 x 6, Insulator / From: LA000001
IN STOCK 		$0.55 2
HX2 LR071767
RIVET - PLASTIC
7.8-9.1 x 4.5-10.5, Insulator / From: LA000001 		$2.92 4
6C800 LR132045
TRAY - OIL
From: LA000001 		$260.30 1
6N041A LR123026
SHIELD - ENGINE PROTECTING
Lower, Oil Pan / From: LA000001 		$59.32 1
6N041B LR133771
INSULATOR - ENGINE COMPARTMENT
Left Side / From: LA000001 		$37.91 1
6N041C LR133770
INSULATOR - ENGINE COMPARTMENT
Upper Front / From: LA000001 		$27.49 1
6675A LR175751
PAN - ENGINE OIL
Upper / From: LA000001 		$615.24 1
6675B LR121376
PAN - ENGINE OIL
Lower / From: LA000001 		$377.85 1
6730 LR073675
PLUG - OIL DRAIN
M14 X 21 / From: LA000001
IN STOCK 		$7.90 1
6754 LR125343
TUBE - OIL LEVEL INDICATOR
From: LA000001 / To: MA419397 		$41.90 1
6754 LR146150
TUBE - OIL LEVEL INDICATOR
From: MA419398 		$53.14 1
