Vacuum Control And Air Injection (3.0L Aj20D6 Diesel High, Lhd) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Vacuum Control And Air Injection (3.0L AJ20D6 Diesel High, LHD) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR087667 CLIP - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR049401 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR073666 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR148861 PUMP - OIL & VACUUM Enquire To Order
LR164063 PUMP - OIL & VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR081604 GROMMET - BRAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR125546 HOSE - VACUUM CONTROL HARNESS Enquire To Order
LR160489 HOSE - VACUUM CONTROL HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
LR124871 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR125256 RESERVOIR - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR121354 TUBE - VACUUM Enquire To Order
View All

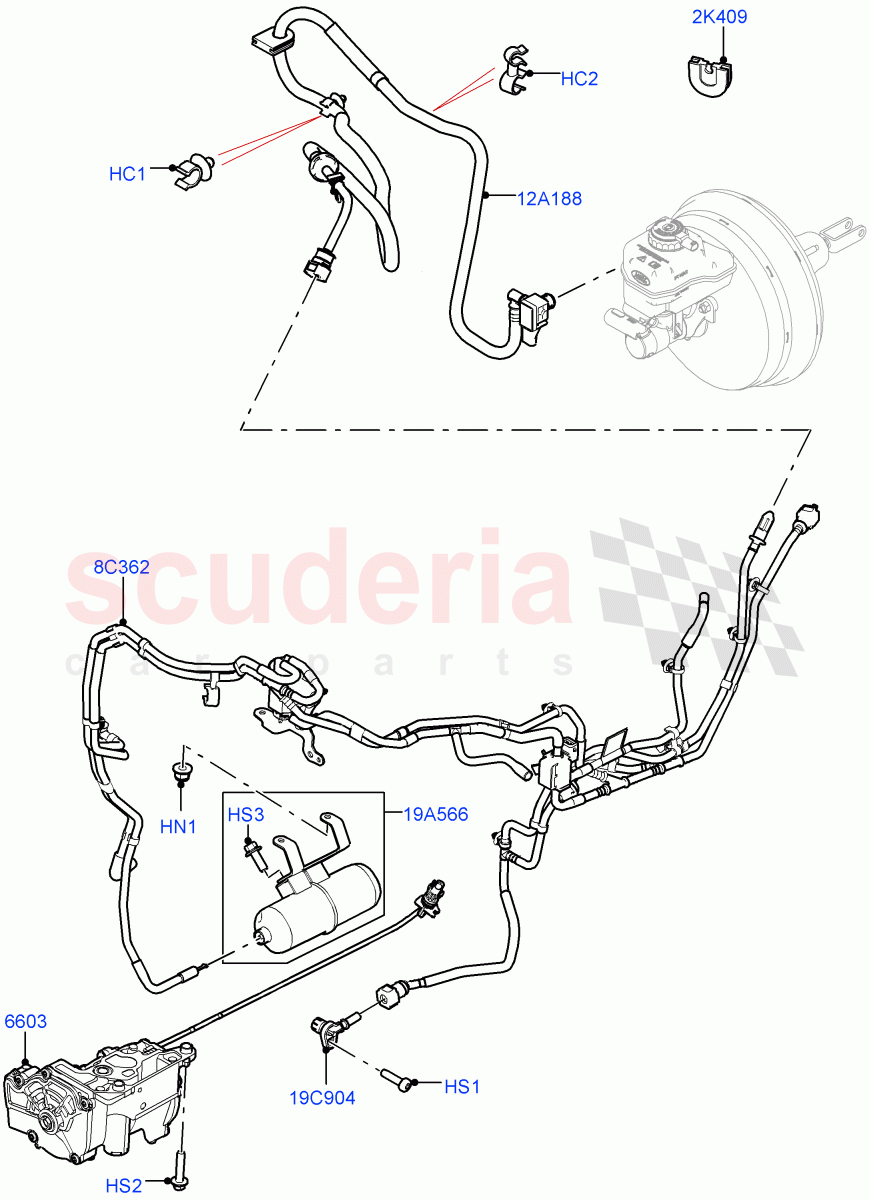

Vacuum Control And Air Injection (3.0L AJ20D6 Diesel High, LHD) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR087667
CLIP - SPECIAL
Single / From: LA000001 		- 1 Enquire
HC2 LR049401
CLIP - DOUBLE
Double, To Vacuum Hose / From: LA000001 		- 1 Enquire
HN1 FY106046
NUT - HEX.
Hexagonal Head, M6, Reservoir / From: LA000001 		- 2 Enquire
HS1 LR073666
SCREW
M5 x 20MM, Vacuum Connector / From: LA000001 		- 1 Enquire
HS2 LR073676
SCREW
M8 x 35mm, To Vacuum Pump / From: LA000001 		- 3 Enquire
HS3 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: LA000001 		- 2 Enquire
2K409 LR081604
GROMMET - BRAKE PIPE
From: LA000001 		- 1 Enquire
8C362 LR125546
HOSE - VACUUM CONTROL HARNESS
To Vacuum Pump / From: LA000001 / To: MA450640 		- 1 Enquire
8C362 LR160489
HOSE - VACUUM CONTROL HARNESS
To Vacuum Pump / From: MA450641 		- 1 Enquire
12A188 LR124871
HOSE - VACUUM
To Brake Booster / From: LA000001 		- 1 Enquire
19A566 LR125256
RESERVOIR - VACUUM
From: LA000001 		- 1 Enquire
19C904 LR121354
TUBE - VACUUM
From: LA000001 		- 1 Enquire
6603 LR148861
PUMP - OIL & VACUUM
From: LA000001 / To: MA456532 		- 1 Enquire
6603 LR164063
PUMP - OIL & VACUUM
From: MA456533 		- 1 Enquire
