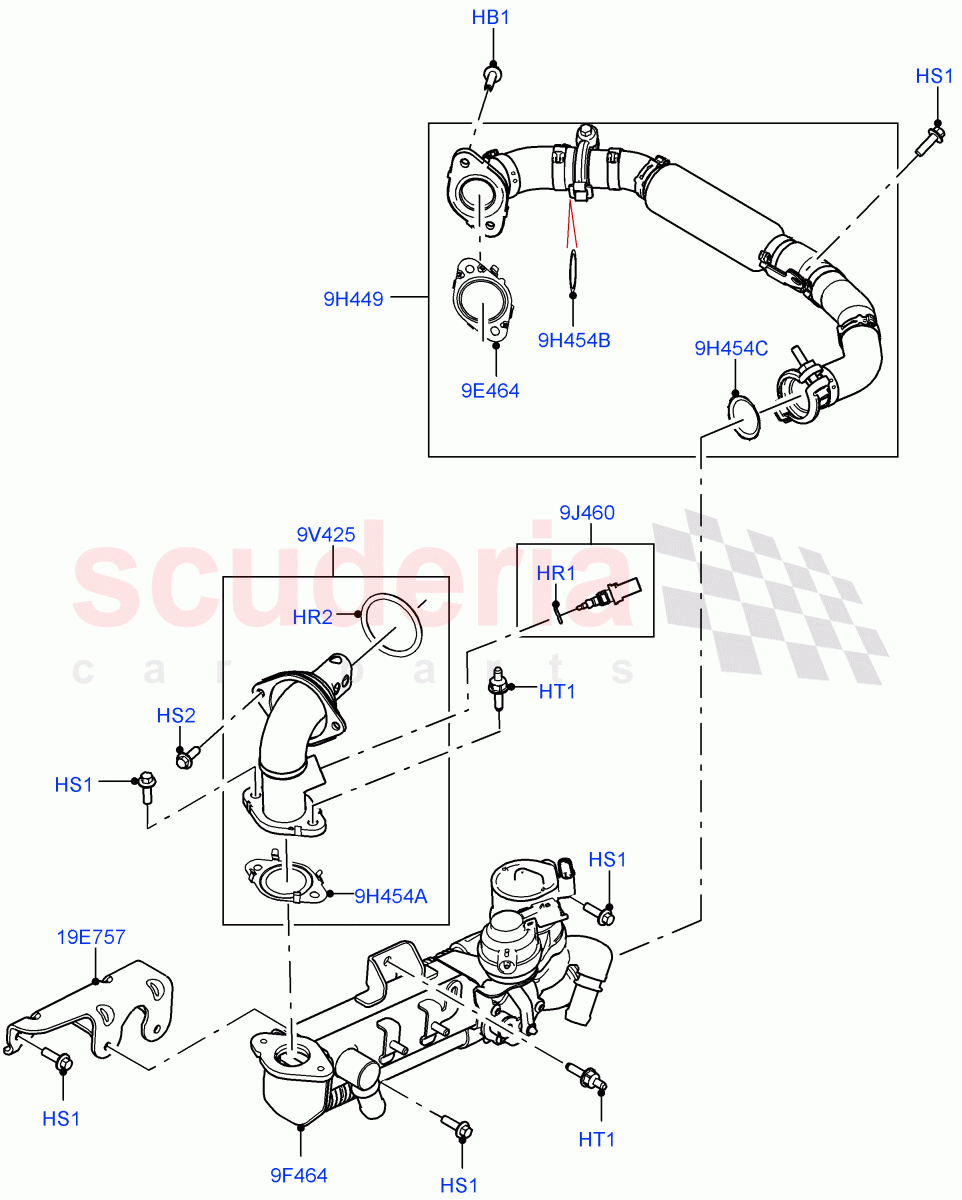

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073739	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095785	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155610	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089197	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155609	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125548	EGR UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140363	TUBE - EXHAUST GAS RECIRCULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075629	SENSOR - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125541	TUBE - EXHAUST GAS RECIRCULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125543	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155608	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155607	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155606	GASKET	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR073739	BOLT	LR073739 BOLT M6 X 25MM / From: LA000001	-	2	Enquire
HR1	LR095785	O-RING	LR095785 O-RING 11.3 x 2.5MM / From: LA000001	-	1	Enquire
HR2	LR155610	O-RING	LR155610 O-RING From EGR Cooler To Inlet Manifold, Tube / From: LA000001	-	1	Enquire
HS1	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: LA000001	-	7	Enquire
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM / From: LA000001	-	2	Enquire
HT1	LR089197	STUD	LR089197 STUD M6 x 22 mm + M6 x 12 mm / From: LA000001	-	3	Enquire
9E464	LR155609	GASKET	LR155609 GASKET From: LA000001	-	1	Enquire
9F464	LR125548	EGR UNIT	LR125548 EGR UNIT From: LA000001	-	1	Enquire
9H449	LR140363	TUBE - EXHAUST GAS RECIRCULATION	LR140363 TUBE - EXHAUST GAS RECIRCULATION From: LA000001	-	1	Enquire
9H454A	LR155608	GASKET	LR155608 GASKET From EGR Cooler To Inlet Manifold, Tube / From: LA000001	-	1	Enquire
9H454B	LR155607	GASKET	LR155607 GASKET From: LA000001	-	1	Enquire
9H454C	LR155606	GASKET	LR155606 GASKET From: LA000001	-	1	Enquire
9J460	LR075629	SENSOR - TEMPERATURE	LR075629 SENSOR - TEMPERATURE Temperature / From: LA000001	-	1	Enquire
9V425	LR125541	TUBE - EXHAUST GAS RECIRCULATION	LR125541 TUBE - EXHAUST GAS RECIRCULATION From EGR Cooler To Inlet Manifold / From: LA000001	-	1	Enquire
19E757	LR125543	BRACKET - SUPPORT	LR125543 BRACKET - SUPPORT From: LA000001	-	1	Enquire
