Intercooler/Air Ducts And Hoses (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Intercooler/Air Ducts And Hoses (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.28 To Order
Photo Part No Description Price (each) Stock
LR137659 INSULATOR - RADIATOR SUPPORT $4.85 To Order
Photo Part No Description Price (each) Stock
LR121739 STUD - BALL $3.20 To Order
Photo Part No Description Price (each) Stock
LR146548 HOSE - COMPRESSED AIR $58.32 To Order
Photo Part No Description Price (each) Stock
LR125603 BRACKET - CHARGE AIR COOLER $44.61 To Order
Photo Part No Description Price (each) Stock
LR125605 TUBE - OUTLET $91.64 To Order
Photo Part No Description Price (each) Stock
LR125340 HEAT SHIELD - TURBOCHARGER $25.30 To Order
Photo Part No Description Price (each) Stock
LR146547 COOLER - ENGINE CHARGE AIR $499.45 To Order
Photo Part No Description Price (each) Stock
LR071745 SENSOR - AIR CHARGE TEMPERATURE $46.63 To Order
View All

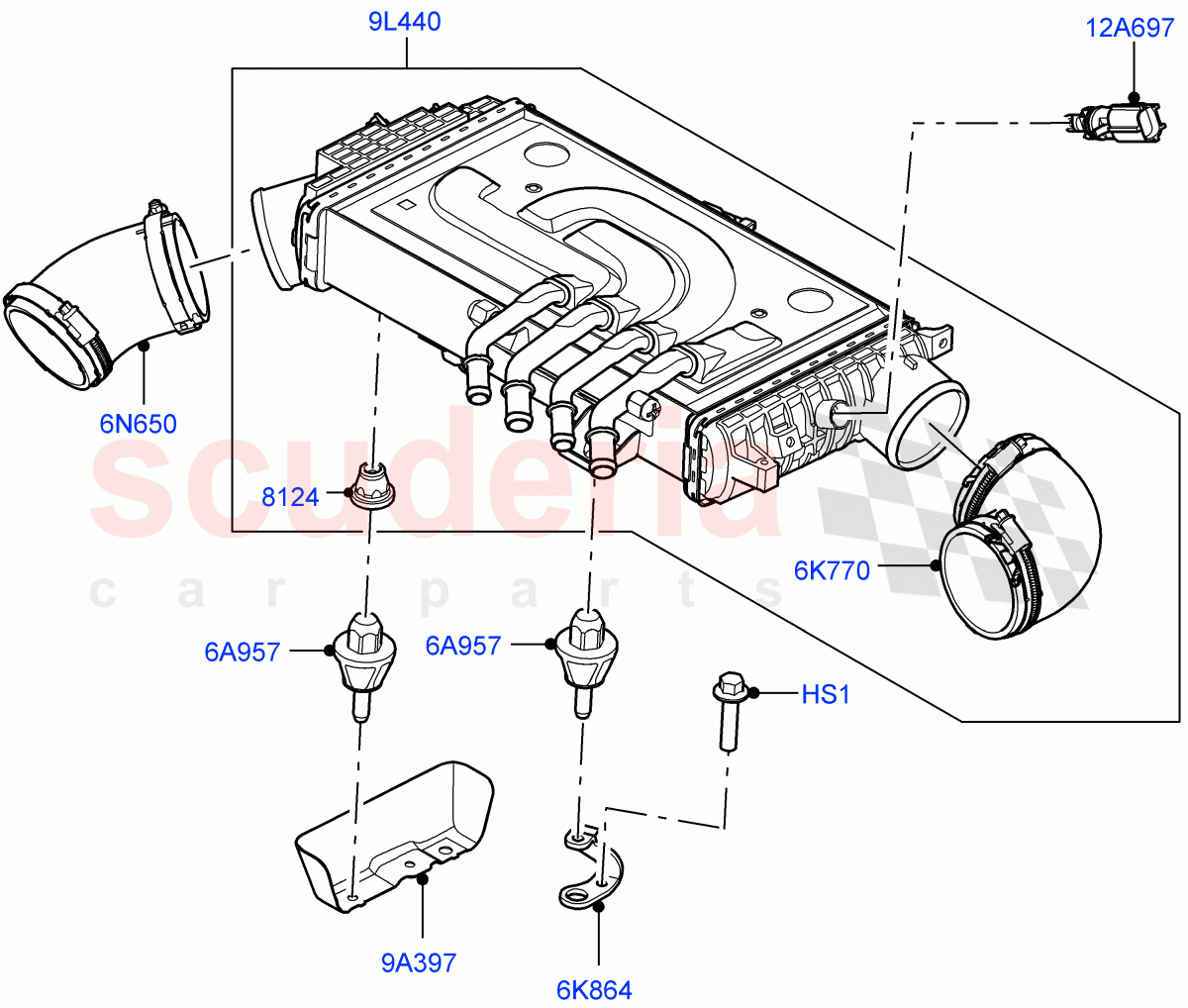

Intercooler/Air Ducts And Hoses (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM / From: LA000001 		$1.28 1
6A957 LR121739
STUD - BALL
Intercooler, M6 / From: LA000001 		$3.20 4
6K770 LR146548
HOSE - COMPRESSED AIR
Outlet / From: LA000001 		$58.32 1
6K864 LR125603
BRACKET - CHARGE AIR COOLER
From: LA000001 		$44.61 1
6N650 LR125605
TUBE - OUTLET
Inlet / From: LA000001 		$91.64 1
9A397 LR125340
HEAT SHIELD - TURBOCHARGER
Intercooler / From: LA000001 		$25.30 1
9L440 LR146547
COOLER - ENGINE CHARGE AIR
From: LA000001 		$499.45 1
12A697 LR071745
SENSOR - AIR CHARGE TEMPERATURE
From: LA000001 		$46.63 1
8124 LR137659
INSULATOR - RADIATOR SUPPORT
Intercooler / From: KA000001 		$4.85 4
