Air Cleaner (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Air Cleaner (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR093829 BOLT $1.18 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR008793 SCREW $0.95 To Order
Photo Part No Description Price (each) Stock
LR161843 FILTER - AIR CLEANER $59.29 IN STOCK
Photo Part No Description Price (each) Stock
LR111065 GUIDE - DIRTY AIR DUCT $22.52 To Order
Photo Part No Description Price (each) Stock
LR122708 CLEANER - AIR $353.13 To Order
Photo Part No Description Price (each) Stock
LR125263 CLEANER - AIR $348.61 To Order
Photo Part No Description Price (each) Stock
LR113348 GRILLE - DIRTY AIR DUCT $10.94 To Order
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING $4.74 IN STOCK
Photo Part No Description Price (each) Stock
LR093998 SENSOR - MASS AIR FLOW $187.37 To Order
Photo Part No Description Price (each) Stock
LR127895 DUCT - AIR $72.31 To Order
Photo Part No Description Price (each) Stock
LR125265 DUCT - AIR INTAKE $169.54 To Order
Photo Part No Description Price (each) Stock
LR125266 DUCT - AIR $132.27 To Order
Photo Part No Description Price (each) Stock
LR127970 HOSE - COMPRESSED AIR $175.78 To Order
Photo Part No Description Price (each) Stock
LR100435 DUCT - DIRTY AIR $136.03 To Order
Photo Part No Description Price (each) Stock
LR049313 DUCT - DIRTY AIR $181.44 To Order
View All

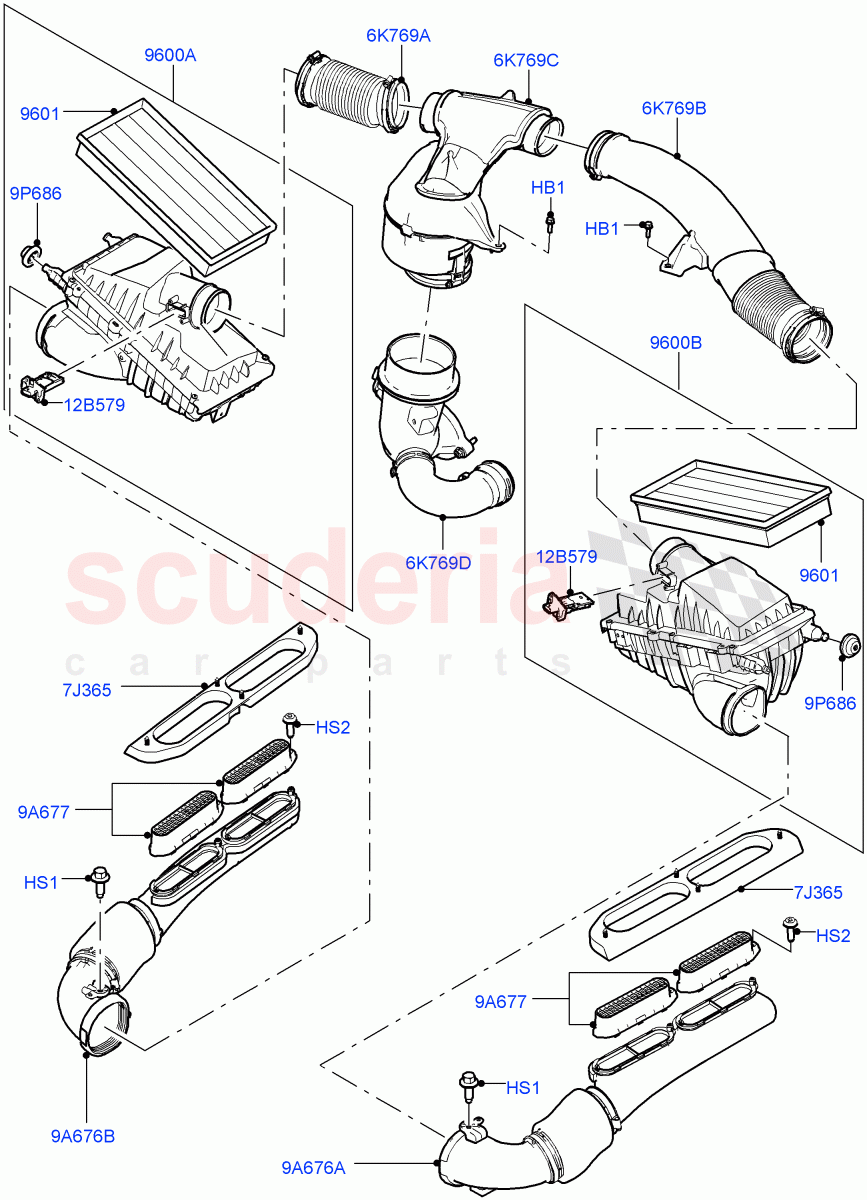

Air Cleaner (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR093829
BOLT
Hexagonal Head, M6 X 20MM / From: LA000001 		$1.18 2
HS1 RYG500160
SCREW
Hexagonal Head, M6 X 14MM / From: LA000001 		$0.59 3
HS2 LR008793
SCREW
M5 X 16MM, Torx / From: LA000001 		$0.95 4
6K769A LR127895
DUCT - AIR
RH / From: LA000001 		$72.31 1
6K769B LR125265
DUCT - AIR INTAKE
LH / From: LA000001 		$169.54 1
6K769C LR125266
DUCT - AIR
Middle / From: LA000001 		$132.27 1
6K769D LR127970
HOSE - COMPRESSED AIR
Lower / From: LA000001 		$175.78 1
7J365 LR111065
GUIDE - DIRTY AIR DUCT
Dirty Air Duct, Mounted To Hood, RH/LH / From: LA000001 		$22.52 2
9A676A LR100435
DUCT - DIRTY AIR
LH / From: LA000001 		$136.03 1
9A676B LR049313
DUCT - DIRTY AIR
RH / From: LA000001 		$181.44 1
9A677 LR113348
GRILLE - DIRTY AIR DUCT
From: LA000001 		$10.94 4
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown / From: LA000001
IN STOCK 		$4.74 6
12B579 LR093998
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor / From: LA000001 		$187.37 2
9600A LR122708
CLEANER - AIR
RH / From: LA000001 		$353.13 1
9600B LR125263
CLEANER - AIR
LH / From: LA000001 		$348.61 1
9601 LR161843
FILTER - AIR CLEANER
From: LA000001
IN STOCK 		$59.29 2
