Front Brake Discs And Calipers (Autobiography Black / SV Autobiography) (Limited Package, Brake Calipers - Red, Less Version Package, Brake Calipers - Black) ((V) FROMGA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Front Brake Discs And Calipers (Autobiography Black / SV Autobiography) (Limited Package, Brake...

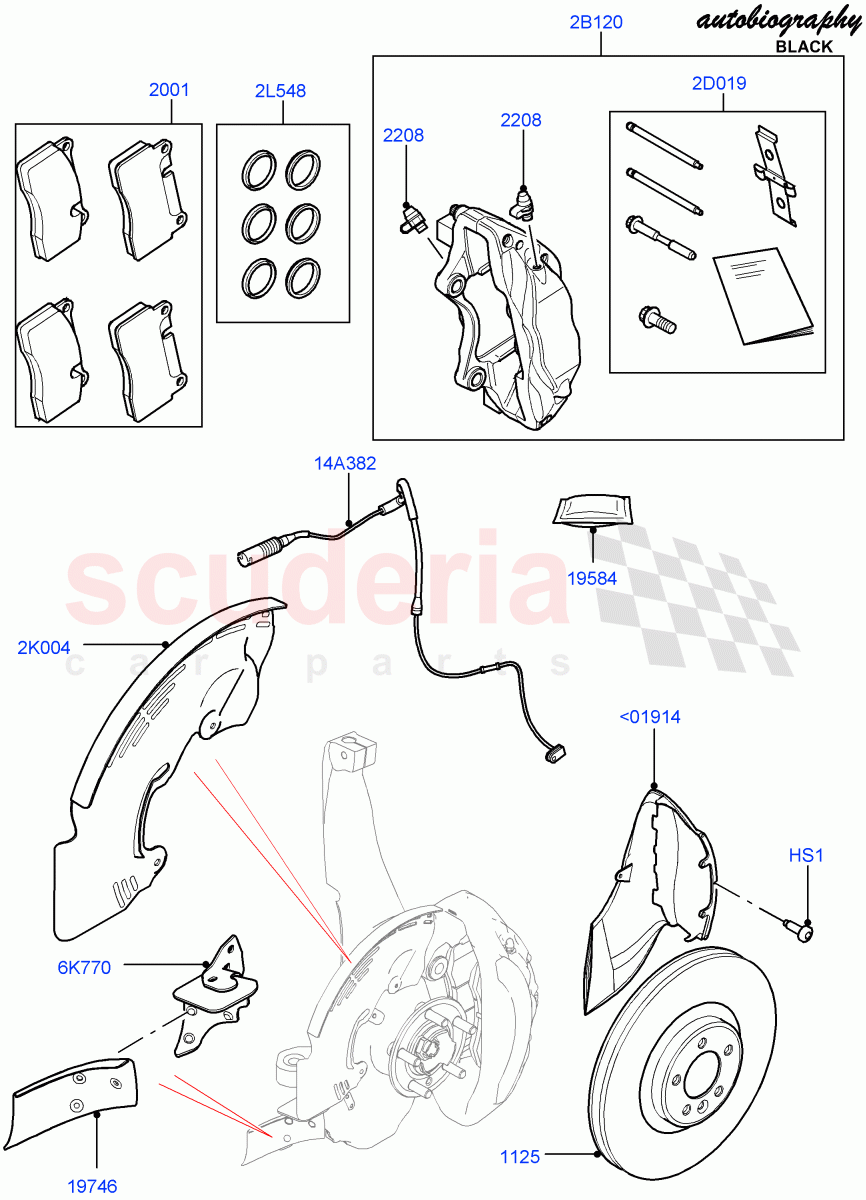

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR067895	SCREW - PAN HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016176	DISC - BRAKE	Enquire	To Order
	LR161894	DISC - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR064181	Kit - Caliper Brake Pad	Enquire	To Order
	LR083935	KIT - CALIPER BRAKE PAD	Enquire	To Order
	LR083935	KIT - CALIPER BRAKE PAD	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR039525	SCREW - BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020972	GREASE - CHASSIS LUBRICATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062373	DUCT - BRAKE DISC COOLING	Enquire	To Order
	LR062374	DUCT - BRAKE DISC COOLING	Enquire	To Order
	LR124682	DUCT - BRAKE DISC COOLING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR078481	CALIPER - BRAKE	Enquire	To Order
	LR078482	CALIPER - BRAKE	Enquire	To Order
	LR086428	CALIPER - BRAKE	Enquire	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR016683	KIT - BRAKE CALIPER ATTACHMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062371	SHIELD - SPLASH	Enquire	To Order
	LR062372	SHIELD - SPLASH	Enquire	To Order
	LR082615	SHIELD - SPLASH	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR016685	KIT - BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062369	DUCT - BRAKE DISC COOLING	Enquire	To Order
	LR062370	DUCT - BRAKE DISC COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067877	DUCT - BRAKE CALIPER COOLING	Enquire	To Order
	LR067880	DUCT - BRAKE CALIPER COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033275	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order
	LR098988	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<01914	LR067877	DUCT - BRAKE CALIPER COOLING	LR067877 DUCT - BRAKE CALIPER COOLING RH, Brake Caliper Cooling / From: GA000001	-	1	Enquire
<01914	LR067880	DUCT - BRAKE CALIPER COOLING	LR067880 DUCT - BRAKE CALIPER COOLING LH, Brake Caliper Cooling / From: GA000001	-	1	Enquire
HS1	LR067895	SCREW - PAN HEAD	LR067895 SCREW - PAN HEAD M6 X 16MM / From: GA000001	-	6	Enquire
2B120	LR078481	CALIPER - BRAKE	LR078481 CALIPER - BRAKE Brake Calipers - Black / RH / From: GA000001 / To: GA999999	-	1	Enquire
2B120	LR078482	CALIPER - BRAKE	LR078482 CALIPER - BRAKE Brake Calipers - Black / LH / From: GA000001 / To: GA999999	-	1	Enquire
2B120	LR086428	CALIPER - BRAKE	LR086428 CALIPER - BRAKE Brake Calipers - Red / RH / From: HA000001 / To: HA500000	-	1	Enquire
2B120	LR086429	CALIPER - BRAKE	LR086429 CALIPER - BRAKE Brake Calipers - Red / LH / From: HA000001 / To: HA500000	-	1	Enquire
2B120	LR110118	CALIPER - BRAKE - LESS PADS	LR110118 CALIPER - BRAKE - LESS PADS Brake Calipers - Red, Standard Wheelbase / RH / From: JA000001 / To: JA999999	-	1	Enquire
2B120	LR110120	CALIPER - BRAKE - LESS PADS	LR110120 CALIPER - BRAKE - LESS PADS Brake Calipers - Black / RH / From: JA000001 / To: JA999999	-	1	Enquire
2B120	LR110119	CALIPER - BRAKE - LESS PADS	LR110119 CALIPER - BRAKE - LESS PADS Brake Calipers - Red, Standard Wheelbase / LH / From: JA000001 / To: JA999999	-	1	Enquire
2B120	LR110121	CALIPER - BRAKE - LESS PADS	LR110121 CALIPER - BRAKE - LESS PADS Brake Calipers - Black / LH / From: JA000001 / To: JA999999	-	1	Enquire
2B120	LR127080	Caliper	LR127080 Caliper Brake Calipers - Bespoke / RH / From: KA000001	-	1	Enquire
2B120	LR127081	Caliper	LR127081 Caliper Brake Calipers - Bespoke / LH / From: KA000001	-	1	Enquire
2B120	LR138841	CALIPER - BRAKE - LESS PADS	LR138841 CALIPER - BRAKE - LESS PADS Brake Calipers - Red, Standard Wheelbase / RH / From: KA000001	-	1	Enquire
2B120	LR138725	CALIPER - BRAKE - LESS PADS	LR138725 CALIPER - BRAKE - LESS PADS Brake Calipers - Black / RH / From: KA000001	-	1	Enquire
2B120	LR138842	CALIPER - BRAKE - LESS PADS	LR138842 CALIPER - BRAKE - LESS PADS Brake Calipers - Red, Standard Wheelbase / LH / From: KA000001	-	1	Enquire
2B120	LR138726	CALIPER - BRAKE - LESS PADS	LR138726 CALIPER - BRAKE - LESS PADS Brake Calipers - Black / LH / From: KA000001	-	1	Enquire
2B120	LR138837	CALIPER - BRAKE	LR138837 CALIPER - BRAKE Brake Calipers - Black / RH / From: HA000001 / To: HA999999	-	1	Enquire
2B120	LR138838	Caliper	LR138838 Caliper Brake Calipers - Black / LH / From: HA000001 / To: HA999999	-	1	Enquire
2B120	LR138839	CALIPER - BRAKE	LR138839 CALIPER - BRAKE Brake Calipers - Red / RH / From: HA500001 / To: HA999999	-	1	Enquire
2B120	LR138840	KIT - BRAKE CALIPER ATTACHMENT	LR138840 KIT - BRAKE CALIPER ATTACHMENT Brake Calipers - Red / LH / From: HA500001 / To: HA999999	-	1	Enquire
2B120	LR138835	CALIPER - BRAKE	LR138835 CALIPER - BRAKE Brake Calipers - Red / RH / From: GA000001 / To: GA999999	-	1	Enquire
2B120	LR138836	CALIPER - BRAKE	LR138836 CALIPER - BRAKE Brake Calipers - Red / LH / From: GA000001 / To: GA999999	-	1	Enquire
2D019	LR016683	KIT - BRAKE CALIPER ATTACHMENT	LR016683 KIT - BRAKE CALIPER ATTACHMENT Pad Clip And Retaining Pins / From: GA000001	-	1	Enquire
2K004	LR062371	SHIELD - SPLASH	LR062371 SHIELD - SPLASH RH / From: GA000001 / To: GA259912	-	1	Enquire
2K004	LR062372	SHIELD - SPLASH	LR062372 SHIELD - SPLASH LH / From: GA000001 / To: GA259912	-	1	Enquire
2K004	LR082615	SHIELD - SPLASH	LR082615 SHIELD - SPLASH RH / From: GA259913 / To: HA999999	-	1	Enquire
2K004	LR082616	SHIELD - SPLASH	LR082616 SHIELD - SPLASH LH / From: GA259913 / To: HA999999	-	1	Enquire
2K004	LR103593	SHIELD - SPLASH	LR103593 SHIELD - SPLASH RH / From: JA000001	-	1	Enquire
2K004	LR103592	SHIELD - SPLASH	LR103592 SHIELD - SPLASH LH / From: JA000001	-	1	Enquire
2L548	LR016685	KIT - BOOT	LR016685 KIT - BOOT Brake Caliper / From: GA000001	-	1	Enquire
6K770	LR062369	DUCT - BRAKE DISC COOLING	LR062369 DUCT - BRAKE DISC COOLING RH / From: GA000001	-	1	Enquire
6K770	LR062370	DUCT - BRAKE DISC COOLING	LR062370 DUCT - BRAKE DISC COOLING LH / From: GA000001	-	1	Enquire
14A382	LR033275	WIRE - BRAKE PAD WEAR WARNING	LR033275 WIRE - BRAKE PAD WEAR WARNING From: GA000001 / To: HA999999	-	1	Enquire
14A382	LR098988	WIRE - BRAKE PAD WEAR WARNING	LR098988 WIRE - BRAKE PAD WEAR WARNING From: JA000001	-	2	Enquire
1125	LR016176	DISC - BRAKE	LR016176 DISC - BRAKE From: GA000001 / To: HA999999	-	2	Enquire
1125	LR161894	DISC - BRAKE	LR161894 DISC - BRAKE 380MM / From: JA000001	-	2	Enquire
2001	LR064181	Kit - Caliper Brake Pad	LR064181 Kit - Caliper Brake Pad (+)"USA", Brake Calipers - Black / From: GA000001 / To: GA270295	-	1	Enquire
2001	LR083935	KIT - CALIPER BRAKE PAD	LR083935 KIT - CALIPER BRAKE PAD (-)"USA", Brake Calipers - Black / From: GA000001 / To: GA270295	-	1	Enquire
2001	LR083935	KIT - CALIPER BRAKE PAD	LR083935 KIT - CALIPER BRAKE PAD Brake Calipers - Black / From: GA270296 / To: HA328264	-	1	Enquire
2001	LR093886	KIT - CALIPER BRAKE PAD	LR093886 KIT - CALIPER BRAKE PAD Brake Calipers - Black / From: HA328265 / To: HA999999	-	1	Enquire
2001	LR110075	KIT - CALIPER BRAKE PAD	LR110075 KIT - CALIPER BRAKE PAD Brake Calipers - Bespoke / Standard Performance / From: JA000001 / To: MA432740	-	1	Enquire
2001	LR160069	KIT - CALIPER BRAKE PAD	LR160069 KIT - CALIPER BRAKE PAD Brake Calipers - Red / Standard Performance / From: MA432741	-	1	Enquire
2208	LR039525	SCREW - BLEED	LR039525 SCREW - BLEED From: GA000001	-	4	Enquire
19584	LR020972	GREASE - CHASSIS LUBRICATION	LR020972 GREASE - CHASSIS LUBRICATION Molykote CU7439 Plus / From: GA000001	-	1	Enquire
19746	LR062373	DUCT - BRAKE DISC COOLING	LR062373 DUCT - BRAKE DISC COOLING RH / From: GA000001 / To: KA530339	-	1	Enquire
19746	LR062374	DUCT - BRAKE DISC COOLING	LR062374 DUCT - BRAKE DISC COOLING LH / From: GA000001 / To: KA530339	-	1	Enquire
19746	LR124682	DUCT - BRAKE DISC COOLING	LR124682 DUCT - BRAKE DISC COOLING RH / From: KA530340	-	1	Enquire
19746	LR124683	DUCT - BRAKE DISC COOLING	LR124683 DUCT - BRAKE DISC COOLING LH / From: KA530340	-	1	Enquire
