Front Brake Pipes (With Petrol Engines, Lhd)

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Front Brake Pipes (With Petrol Engines, LHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.63 IN STOCK
Photo Part No Description Price (each) Stock
LR033441 CLIP - SPECIAL $4.31 To Order
Photo Part No Description Price (each) Stock
LR033442 CLIP - SPECIAL $5.46 To Order
Photo Part No Description Price (each) Stock
LR033443 CLIP - SPECIAL $31.63 To Order
Photo Part No Description Price (each) Stock
LR033450 CLIP - SPECIAL $22.72 To Order
Photo Part No Description Price (each) Stock
LR033451 CONNECTOR - PIPE $55.07 To Order
LR047052 CONNECTOR - PIPE $138.05 To Order
Photo Part No Description Price (each) Stock
LR033363 HOSE - BRAKE $94.48 To Order
LR045364 HOSE - BRAKE $109.65 To Order
LR079544 HOSE - BRAKE $84.85 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033362 HOSE - BRAKE $92.16 To Order
LR045363 HOSE - BRAKE $109.65 To Order
LR079543 HOSE - BRAKE $85.04 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033371 TUBE - BRAKE $21.15 To Order
LR155147 TUBE - BRAKE $82.46 To Order
Photo Part No Description Price (each) Stock
LR033386 TUBE - BRAKE $120.36 To Order
Photo Part No Description Price (each) Stock
LR033388 TUBE - BRAKE $186.42 To Order
LR047050 TUBE - BRAKE $170.08 To Order
LR087167 TUBE - BRAKE $175.22 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033427 GROMMET - BRAKE PIPE $24.49 To Order
Photo Part No Description Price (each) Stock
LR033452 NUT - CONNECTING $10.39 To Order
Photo Part No Description Price (each) Stock
LR033453 NUT - CONNECTING $9.31 To Order
Photo Part No Description Price (each) Stock
LR033454 NUT - CONNECTING $20.94 IN STOCK
Photo Part No Description Price (each) Stock
LR033455 NUTS $20.06 IN STOCK
Photo Part No Description Price (each) Stock
EJP7813 CLIP - HOSE $2.36 IN STOCK
Photo Part No Description Price (each) Stock
LR033408 SEAL - BRAKE TUBE FOAM TYPE $5.32 To Order
Photo Part No Description Price (each) Stock
LR033411 SEAL - BRAKE TUBE FOAM TYPE $25.04 To Order
Photo Part No Description Price (each) Stock
LR033413 SEAL - BRAKE TUBE FOAM TYPE $6.87 To Order
LR154807 SEAL - BRAKE TUBE FOAM TYPE $30.28 To Order
Photo Part No Description Price (each) Stock
LR033416 SEAL - BRAKE TUBE FOAM TYPE $4.97 To Order
LR154808 SEAL - BRAKE TUBE FOAM TYPE $7.28 To Order
Photo Part No Description Price (each) Stock
LR033417 SEAL - BRAKE TUBE FOAM TYPE $16.21 To Order
View All

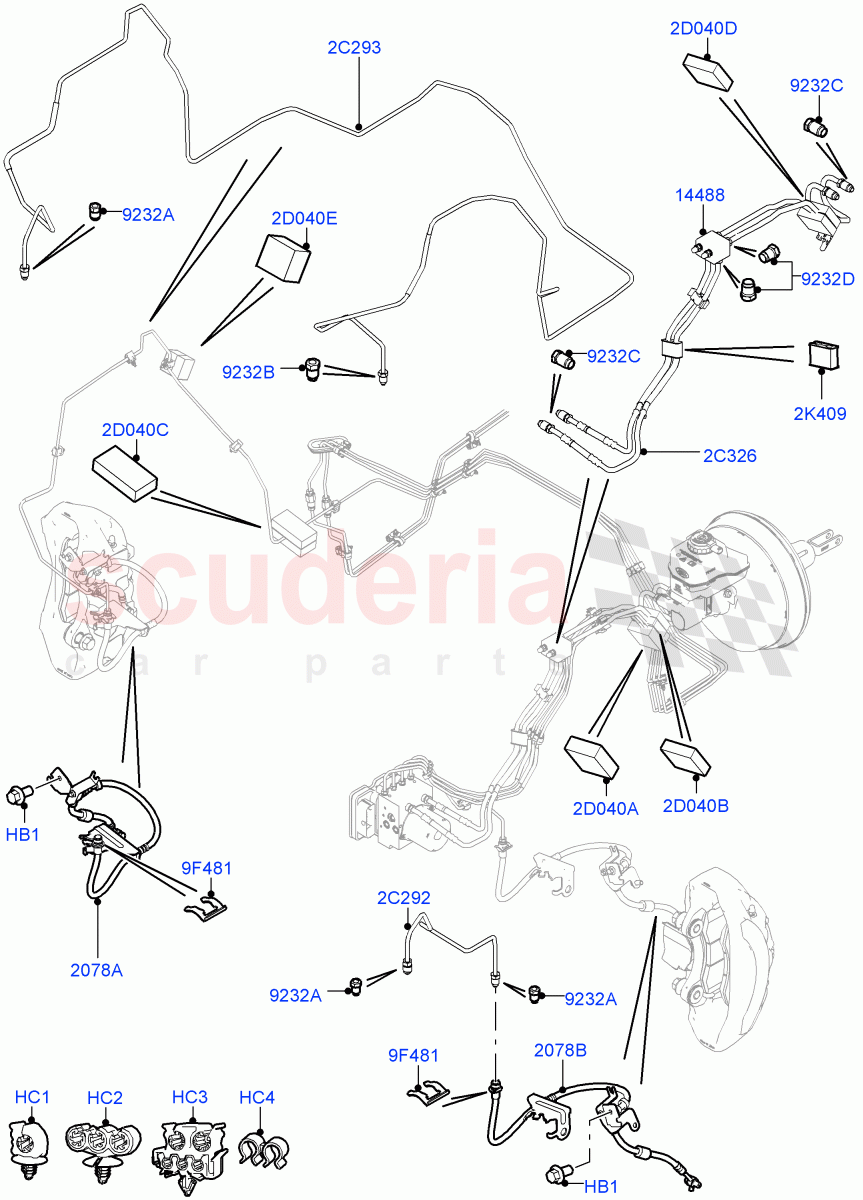

Front Brake Pipes (With Petrol Engines, LHD) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM
IN STOCK 		$0.63 4
HC1 LR033441
CLIP - SPECIAL
5MM, Single 		$4.31 7
HC2 LR033442
CLIP - SPECIAL
5MM, Triple 		$5.46 7
HC3 LR033443
CLIP - SPECIAL
5 Way, 5MM, 8MM 		$31.63 1
HC4 LR033450
CLIP - SPECIAL
8MM, Double 		$22.72 2
2C292 LR033371
TUBE - BRAKE
Modulator To LH Front / To: MA449725 		$21.15 1
2C292 LR155147
TUBE - BRAKE
Modulator To LH Front / From: MA449726 		$82.46 1
2C293 LR033386
TUBE - BRAKE
Modulator To RH Front 		$120.36 1
2C326 LR033388
TUBE - BRAKE
Modulator To Brake Master Cylinder / To: DA115842 		$186.42 1
2C326 LR047050
TUBE - BRAKE
Modulator To Brake Master Cylinder / From: DA115843 / To: GA303455 		$170.08 1
2C326 LR087167
TUBE - BRAKE
Modulator To Brake Master Cylinder, Not For Armoured Vehicles / From: GA303456 / To: MA449725 		$175.22 1
2C326 LR109024
TUBE - BRAKE
Armoured / Modulator To Brake Master Cylinder / From: JA000001 		$177.02 1
2C326 LR155149
TUBE - BRAKE
Modulator To Brake Master Cylinder, Not For Armoured Vehicles / From: MA449726 		$712.88 1
2D040A LR033408
SEAL - BRAKE TUBE FOAM TYPE
5MM 		$5.32 1
2D040B LR033411
SEAL - BRAKE TUBE FOAM TYPE
5MM 		$25.04 1
2D040C LR033413
SEAL - BRAKE TUBE FOAM TYPE
5MM / To: MA449725 		$6.87 2
2D040C LR154807
SEAL - BRAKE TUBE FOAM TYPE
5MM / From: MA449726 		$30.28 2
2D040D LR033416
SEAL - BRAKE TUBE FOAM TYPE
8MM / To: MA449725 		$4.97 2
2D040D LR154808
SEAL - BRAKE TUBE FOAM TYPE
8MM / From: MA449726 		$7.28 2
2D040E LR033417
SEAL - BRAKE TUBE FOAM TYPE
Blank 		$16.21 2
2K409 LR033427
GROMMET - BRAKE PIPE
8MM, Double 		$24.49 1
9F481 EJP7813
CLIP - HOSE
Brake Hose
IN STOCK 		$2.36 2
2078A LR033363
HOSE - BRAKE
RH, Includes Bracket, To Caliper / To: DA999999 		$94.48 1
2078A LR045364
HOSE - BRAKE
RH, Includes Bracket, To Caliper / From: EA000001 / To: GA257756 		$109.65 1
2078A LR079544
HOSE - BRAKE
RH, Includes Bracket, To Caliper / From: GA257757 / To: HA999999 		$84.85 1
2078A LR113969
HOSE - BRAKE
RH, Includes Bracket, To Caliper / From: JA000001 / To: KA517591 		$93.95 1
2078A LR113969
HOSE - BRAKE
RH, Includes Bracket, To Caliper / From: KA517592 		$93.95 1
2078B LR033362
HOSE - BRAKE
LH, Includes Bracket, To Caliper / To: DA999999 		$92.16 1
2078B LR045363
HOSE - BRAKE
LH, Includes Bracket, To Caliper / From: EA000001 / To: GA257756 		$109.65 1
2078B LR079543
HOSE - BRAKE
LH, Includes Bracket, To Caliper / From: GA257757 / To: HA999999 		$85.04 1
2078B LR081602
HOSE - BRAKE
LH, Includes Bracket, To Caliper / From: JA000001 / To: KA517591 		$132.11 1
2078B LR113970
HOSE - BRAKE
LH, Includes Bracket, To Caliper / From: KA517592 		$132.11 1
9232A LR033452
NUT - CONNECTING
M10 		$10.39 3
9232B LR033453
NUT - CONNECTING
M12 		$9.31 1
9232C LR033454
NUT - CONNECTING
M14
IN STOCK 		$20.94 4
9232D LR033455
NUTS
M12
IN STOCK 		$20.06 4
14488 LR033451
CONNECTOR - PIPE
6 Way, Bleed Block / To: DA115842 		$55.07 1
14488 LR047052
CONNECTOR - PIPE
6 Way, Bleed Block / From: DA115843 		$138.05 1
