Rear Cross Member & Stabilizer Bar (Conventional Stabilizer Bar) (2.0L 16V TIVCT T/C 240PS Petrol, Less ACE Suspension, 5.0L OHC SGDI SC V8 Petrol - AJ133, 3.0 V6 Diesel, 5.0L OHC SGDI NA V8 Petrol - AJ133, 2.0L AJ200P Hi PHEV, 5.0 Petrol AJ133 DOHC CDA, 3.0L DOHC GDI SC V6 PETROL) ((V) TOJA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Rear Cross Member & Stabilizer Bar (Conventional Stabilizer Bar) (2.0L 16V TIVCT T/C 240PS Petrol,...

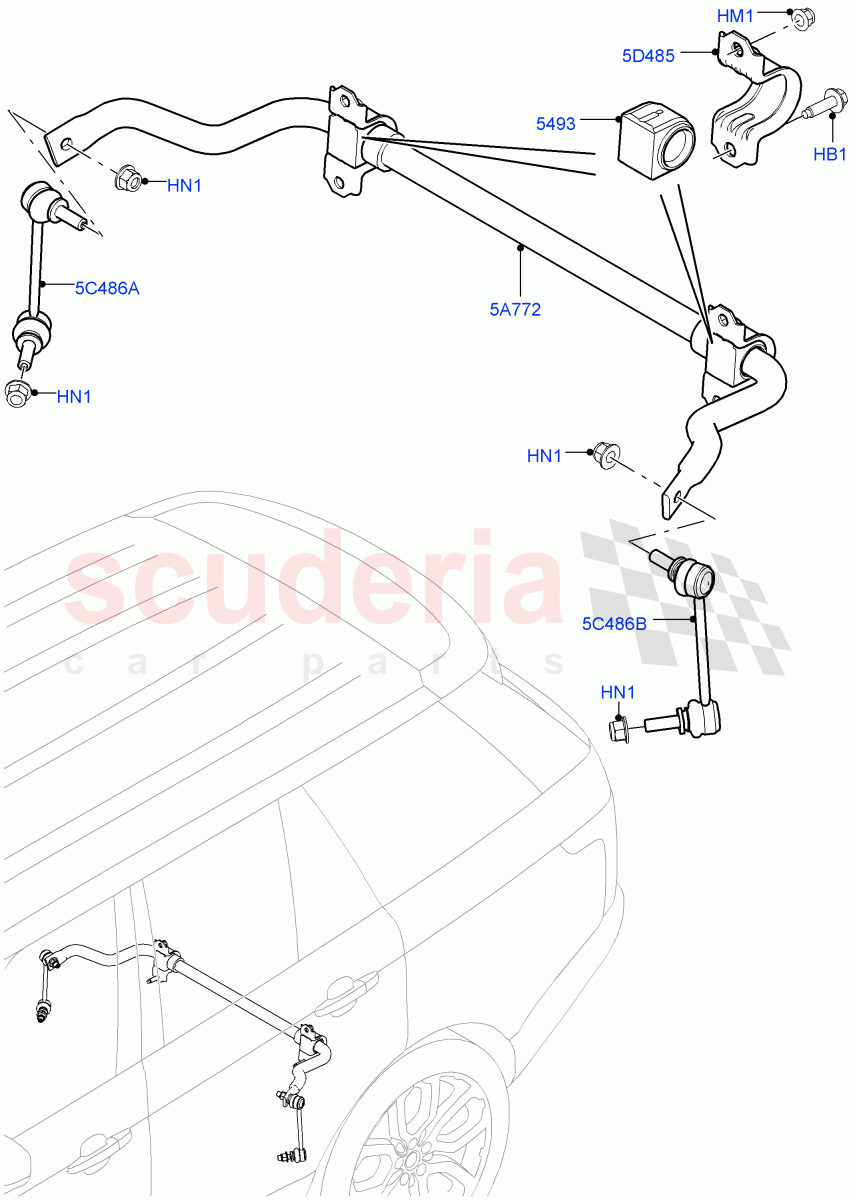

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033245	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY114056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033238	INSULATOR - STABILIZER BAR	Enquire	To Order
	LR054995	INSULATOR - STABILIZER BAR	Enquire	To Order
	LR057601	Insulator	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR033240	BAR - STABILIZER	Enquire	To Order
	LR067859	BAR - STABILIZER	Enquire	To Order
	LR067859	BAR - STABILIZER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR057727	BRACKET - STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033242	LINK - STABILIZER BAR	Enquire	To Order
	LR048092	LINK - STABILIZER BAR	Enquire	To Order
	LR166064	LINK - STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033243	LINK - STABILIZER BAR	Enquire	To Order
	LR048093	LINK - STABILIZER BAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR033245	BOLT	LR033245 BOLT HEX Flange, M12 x 40MM	-	2	Enquire
HM1	FY112056	NUT - HEX.	FY112056 NUT - HEX. Hex Nut Type, M12	-	2	Enquire
HN1	FY114056	NUT - HEX.	FY114056 NUT - HEX. Hexagonal Head, M14	-	4	Enquire
5A772	LR033240	BAR - STABILIZER	LR033240 BAR - STABILIZER Includes Insulators And Clamps / To: EA999999	-	1	Enquire
5A772	LR067859	BAR - STABILIZER	LR067859 BAR - STABILIZER 3.0 V6 Diesel, Less Version Package / Includes Insulators And Clamps / From: FA000001	-	1	Enquire
5A772	LR067859	BAR - STABILIZER	LR067859 BAR - STABILIZER 5.0L OHC SGDI SC V8 Petrol - AJ133, Long Wheelbase / Includes Insulators And Clamps / From: FA000001 / To: HA999999	-	1	Enquire
5A772	LR052321	BAR - STABILIZER	LR052321 BAR - STABILIZER 5.0L OHC SGDI SC V8 Petrol - AJ133, Standard Wheelbase / Includes Insulators And Clamps / From: FA000001 / To: HA999999	-	1	Enquire
5A772	LR057621	Bar - Stabilizer	LR057621 Bar - Stabilizer 2.0L 16V TIVCT T/C 240PS Petrol / Includes Insulators And Clamps / From: FA000001	-	1	Enquire
5A772	LR057622	Bar - Stabilizer	LR057622 Bar - Stabilizer 5.0 Petrol AJ133 DOHC CDA / Includes Insulators And Clamps / From: JA000001	-	1	Enquire
5A772	LR057621	Bar - Stabilizer	LR057621 Bar - Stabilizer 2.0L I4 High DOHC AJ200 Petrol / Includes Insulators And Clamps / From: JA000001	-	1	Enquire
5A772	LR067859	BAR - STABILIZER	LR067859 BAR - STABILIZER 2.0L AJ200P Hi PHEV / Includes Insulators And Clamps / From: JA000001	-	1	Enquire
5C486A	LR033242	LINK - STABILIZER BAR	LR033242 LINK - STABILIZER BAR RH / To: DA999999	-	1	Enquire
5C486A	LR048092	LINK - STABILIZER BAR	LR048092 LINK - STABILIZER BAR Limited Package / RH / From: EA000001 / To: NA472464	-	1	Enquire
5C486A	LR166064	LINK - STABILIZER BAR	LR166064 LINK - STABILIZER BAR Limited Package / RH / From: NA472465	-	1	Enquire
5C486B	LR033243	LINK - STABILIZER BAR	LR033243 LINK - STABILIZER BAR LH / To: DA999999	-	1	Enquire
5C486B	LR048093	LINK - STABILIZER BAR	LR048093 LINK - STABILIZER BAR Less Version Package / LH / From: EA000001	-	1	Enquire
5D485	LR057727	BRACKET - STABILIZER BAR	LR057727 BRACKET - STABILIZER BAR	-	2	Enquire
5493	LR033238	INSULATOR - STABILIZER BAR	LR033238 INSULATOR - STABILIZER BAR 5.0L OHC SGDI NA V8 Petrol - AJ133, Less Version Package / RH/LH, Stabilizer Bar	-	2	Enquire
5493	LR054995	INSULATOR - STABILIZER BAR	LR054995 INSULATOR - STABILIZER BAR 5.0L OHC SGDI SC V8 Petrol - AJ133, Standard Wheelbase / RH/LH, Stabilizer Bar / From: FA000001 / To: HA999999	-	2	Enquire
5493	LR057601	Insulator	LR057601 Insulator 2.0L 16V TIVCT T/C 240PS Petrol / RH/LH, Stabilizer Bar / From: FA000001	-	2	Enquire
5493	LR033238	INSULATOR - STABILIZER BAR	LR033238 INSULATOR - STABILIZER BAR 5.0L OHC SGDI SC V8 Petrol - AJ133, Long Wheelbase / RH/LH, Stabilizer Bar / From: FA000001 / To: HA999999	-	2	Enquire
5493	LR033238	INSULATOR - STABILIZER BAR	LR033238 INSULATOR - STABILIZER BAR 2.0L AJ200P Hi PHEV / RH/LH, Stabilizer Bar / From: JA000001	-	2	Enquire
5493	LR033239	INSULATOR - STABILIZER BAR	LR033239 INSULATOR - STABILIZER BAR 5.0 Petrol AJ133 DOHC CDA / RH/LH, Stabilizer Bar / From: JA000001	-	2	Enquire
5493	LR057601	Insulator	LR057601 Insulator 2.0L I4 High DOHC AJ200 Petrol / RH/LH, Stabilizer Bar / From: JA000001	-	1	Enquire
