Air Suspension Compressor And Lines of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Air Suspension Compressor And Lines

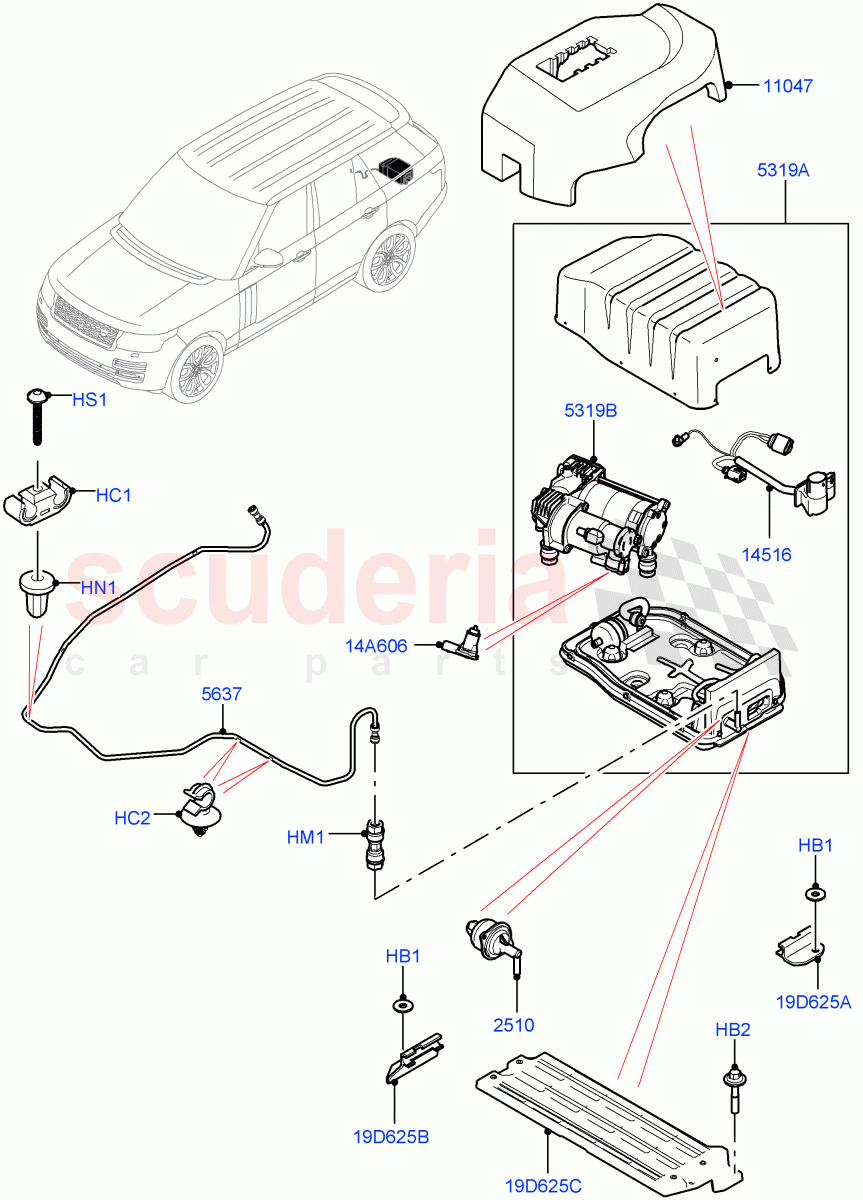

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500800	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066254	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038634	CLIP - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050522	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083989	CONNECTOR - VALVE BLOCK TO PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500840	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034035	SCREW - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140035	EXPANSION CHAMBER	Enquire	To Order
	LR140035	EXPANSION CHAMBER	Enquire	To Order
	LR140035	EXPANSION CHAMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098877	TUBE - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117060	INSULATOR - FOAM PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095837	WIRE - AIR COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140034	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order
	LR121140	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order
	LR140034	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095838	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146170	VALVE - SOLENOID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098840	BRACKET - COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098841	BRACKET - COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098839	BRACKET - COMPRESSOR	Enquire	To Order
	LR116716	BRACKET - COMPRESSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG500800	BOLT	RYG500800 BOLT Hexagonal Head, M6 X 16MM / From: JA000001	-	4	Enquire
HB2	LR066254	BOLT AND WASHER - HEX.HEAD	LR066254 BOLT AND WASHER - HEX.HEAD M6 x 35MM / From: JA000001	-	4	Enquire
HC1	LR038634	CLIP - DOUBLE	LR038634 CLIP - DOUBLE Double / From: JA000001	-	1	Enquire
HC2	LR050522	CLIP - HOSE	LR050522 CLIP - HOSE Clip 8-9X6.5X1.5-5 / From: JA000001	-	2	Enquire
HM1	LR083989	CONNECTOR - VALVE BLOCK TO PIPE	LR083989 CONNECTOR - VALVE BLOCK TO PIPE From: JA000001	-	2	Enquire
HN1	RYH500840	NUT	RYH500840 NUT M4, Plastic Nut / From: JA000001	-	1	Enquire
HS1	LR034035	SCREW - PAN - TORX	LR034035 SCREW - PAN - TORX M4 x 30MM, Torx / From: JA000001	-	1	Enquire
14A606	LR146170	VALVE - SOLENOID	LR146170 VALVE - SOLENOID From: JA000001	-	1	Enquire
19D625A	LR098840	BRACKET - COMPRESSOR	LR098840 BRACKET - COMPRESSOR From: JA000001	-	1	Enquire
19D625B	LR098841	BRACKET - COMPRESSOR	LR098841 BRACKET - COMPRESSOR From: JA000001	-	1	Enquire
19D625C	LR098839	BRACKET - COMPRESSOR	LR098839 BRACKET - COMPRESSOR From: JA000001 / To: JA396668	-	1	Enquire
19D625C	LR116716	BRACKET - COMPRESSOR	LR116716 BRACKET - COMPRESSOR From: JA396669	-	1	Enquire
2510	LR140035	EXPANSION CHAMBER	LR140035 EXPANSION CHAMBER Air Suspension Lines / From: JA000001 / To: KA517361	-	1	Enquire
2510	LR140035	EXPANSION CHAMBER	LR140035 EXPANSION CHAMBER Air Suspension Lines / From: KA517362 / To: LA599914	-	1	Enquire
2510	LR140035	EXPANSION CHAMBER	LR140035 EXPANSION CHAMBER Air Suspension Lines / From: LA599915	-	1	Enquire
5319A	LR140034	COMPRESSOR - SUSPENSION LEVELLING	LR140034 COMPRESSOR - SUSPENSION LEVELLING Compressor Assy / From: JA000001 / To: JA510165	-	1	Enquire
5319A	LR121140	COMPRESSOR - SUSPENSION LEVELLING	LR121140 COMPRESSOR - SUSPENSION LEVELLING Compressor Assy / From: JA510166 / To: LA593389	-	1	Enquire
5319A	LR140034	COMPRESSOR - SUSPENSION LEVELLING	LR140034 COMPRESSOR - SUSPENSION LEVELLING Compressor Assy / From: LA593390	-	1	Enquire
5319B	LR095838	COMPRESSOR - SUSPENSION LEVELLING	LR095838 COMPRESSOR - SUSPENSION LEVELLING Compressor Only / From: JA000001	-	1	Enquire
5637	LR098877	TUBE - AIR SUSPENSION	LR098877 TUBE - AIR SUSPENSION Air Valve To Air Compressor / From: JA000001	-	1	Enquire
11047	LR117060	INSULATOR - FOAM PAD	LR117060 INSULATOR - FOAM PAD From: KA519510	-	1	Enquire
14516	LR095837	WIRE - AIR COMPRESSOR	LR095837 WIRE - AIR COMPRESSOR From: JA000001	-	1	Enquire
