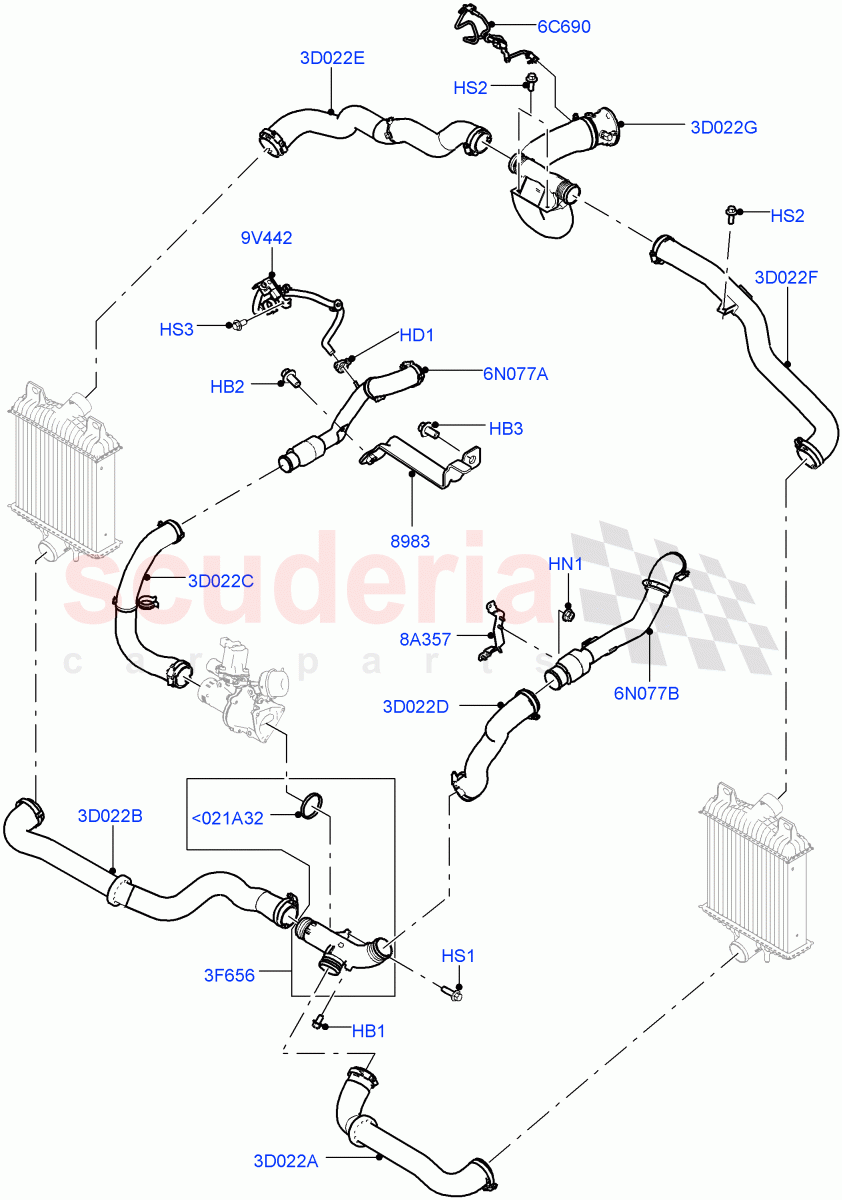

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106106	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	Enquire	To Order
	FS106126	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016628	CLAMP - TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500170	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049174	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036507	CONNECTOR - HOSE	Enquire	To Order
	LR057900	CONNECTOR - HOSE	Enquire	To Order
	LR062674	CONNECTOR - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035509	PIPE - TURBO BOOST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036489	BRACKET - TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014386	SENSOR - AIR CHARGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036478	HOSE - COMPRESSED AIR	Enquire	To Order
	LR053286	HOSE - COMPRESSED AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036499	HOSE - COMPRESSED AIR	Enquire	To Order
	LR053285	HOSE - COMPRESSED AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036474	HOSE - COMPRESSED AIR	Enquire	To Order
	LR056334	HOSE - COMPRESSED AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036481	HOSE - COMPRESSED AIR	Enquire	To Order
	LR054616	HOSE - COMPRESSED AIR	Enquire	To Order
	LR056250	HOSE - COMPRESSED AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036476	HOSE - COMPRESSED AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036477	HOSE - COMPRESSED AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036475	HOSE - COMPRESSED AIR	Enquire	To Order
	LR084255	HOSE - COMPRESSED AIR	Enquire	To Order
	LR117093	HOSE - COMPRESSED AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036473	TUBE - OUTLET	Enquire	To Order
	LR056328	TUBE - OUTLET	Enquire	To Order
	LR094281	TUBE - AIR INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036480	TUBE - OUTLET	Enquire	To Order
	LR056344	TUBE - OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036414	SEAL - H-PIECE - HP AIR DUCTS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<021A32	LR036414	SEAL - H-PIECE - HP AIR DUCTS	LR036414 SEAL - H-PIECE - HP AIR DUCTS H-Connector	-	1	Enquire
HB1	FS106106	BOLT	FS106106 BOLT Hexagonal Head, M6 X 10MM	-	1	Enquire
HB2	FS106126	BOLT	FS106126 BOLT 3.0L 24V DOHC V6 TC Diesel / Hexagonal Head, M6 x 12MM	-	3	Enquire
HB2	FS106126	BOLT	FS106126 BOLT 3.0 V6 Diesel Electric Hybrid Eng / Hexagonal Head, M6 x 12MM / From: FA000001	-	1	Enquire
HB3	FS108166	BOLT	FS108166 BOLT 3.0 V6 Diesel Electric Hybrid Eng / Hexagonal Head, M8 X 16MM / From: FA000001	-	1	Enquire
HD1	LR016628	CLAMP - TUBE	LR016628 CLAMP - TUBE Hose Clamp, Secondary Compressor Outlet Pressure Sensor, Tube	-	1	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6	-	1	Enquire
HS1	RYP500200	SCREW	RYP500200 SCREW HEX Flange, Hexagonal Head, M6 X 20MM	-	3	Enquire
HS2	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM	-	3	Enquire
HS3	BYP500170	SCREW	BYP500170 SCREW Hexagonal Head, M6 x 14MM	-	1	Enquire
3D022A	LR036478	HOSE - COMPRESSED AIR	LR036478 HOSE - COMPRESSED AIR LH, Intercooler Inlet, With Clamps / To: EA130978	-	1	Enquire
3D022A	LR053286	HOSE - COMPRESSED AIR	LR053286 HOSE - COMPRESSED AIR LH, Intercooler Inlet, With Clamps / From: EA130979	-	1	Enquire
3D022B	LR036499	HOSE - COMPRESSED AIR	LR036499 HOSE - COMPRESSED AIR RH, Intercooler Inlet, With Clamps / To: EA130978	-	1	Enquire
3D022B	LR053285	HOSE - COMPRESSED AIR	LR053285 HOSE - COMPRESSED AIR RH, Intercooler Inlet, With Clamps / From: EA130979	-	1	Enquire
3D022C	LR036474	HOSE - COMPRESSED AIR	LR036474 HOSE - COMPRESSED AIR Inlet, Shut Off Valve, With Clamps / To: EA134487	-	1	Enquire
3D022C	LR056334	HOSE - COMPRESSED AIR	LR056334 HOSE - COMPRESSED AIR Inlet, Shut Off Valve, With Clamps / From: EA134488	-	1	Enquire
3D022D	LR036481	HOSE - COMPRESSED AIR	LR036481 HOSE - COMPRESSED AIR H-Connector, Inlet, With Clamps / To: DA099999	-	1	Enquire
3D022D	LR054616	HOSE - COMPRESSED AIR	LR054616 HOSE - COMPRESSED AIR H-Connector, Inlet, Please Refer To SSM (Special Service Message) - 65517, With Clamps / From: DA100000 / To: EA127475	-	1	Enquire
3D022D	LR056250	HOSE - COMPRESSED AIR	LR056250 HOSE - COMPRESSED AIR H-Connector, Inlet, With Clamps / From: EA127476	-	1	Enquire
3D022E	LR036476	HOSE - COMPRESSED AIR	LR036476 HOSE - COMPRESSED AIR RH, Intercooler Outlet, With Clamps	-	1	Enquire
3D022F	LR036477	HOSE - COMPRESSED AIR	LR036477 HOSE - COMPRESSED AIR LH, Intercooler Outlet, With Clamps	-	1	Enquire
3D022G	LR036475	HOSE - COMPRESSED AIR	LR036475 HOSE - COMPRESSED AIR Intercooler To Throttle Body, With Clamps / To: GA273243	-	1	Enquire
3D022G	LR084255	HOSE - COMPRESSED AIR	LR084255 HOSE - COMPRESSED AIR Intercooler To Throttle Body, With Clamps / From: GA273244 / To: KA518323	-	1	Enquire
3D022G	LR117093	HOSE - COMPRESSED AIR	LR117093 HOSE - COMPRESSED AIR Intercooler To Throttle Body, With Clamps / From: KA518324	-	1	Enquire
3F656	LR036507	CONNECTOR - HOSE	LR036507 CONNECTOR - HOSE H-Connector / To: EA130978	-	1	Enquire
3F656	LR057900	CONNECTOR - HOSE	LR057900 CONNECTOR - HOSE H-Connector / From: EA130979 / To: EA177525	-	1	Enquire
3F656	LR062674	CONNECTOR - HOSE	LR062674 CONNECTOR - HOSE H-Connector / From: EA177526	-	1	Enquire
6C690	LR035509	PIPE - TURBO BOOST	LR035509 PIPE - TURBO BOOST	-	1	Enquire
6N077A	LR036473	TUBE - OUTLET	LR036473 TUBE - OUTLET RH, Turbocharger Outlet, With Clamps / To: EA134487	-	1	Enquire
6N077A	LR056328	TUBE - OUTLET	LR056328 TUBE - OUTLET RH, Turbocharger Outlet, With Clamps / From: EA134488 / To: GA313183	-	1	Enquire
6N077A	LR094281	TUBE - AIR INLET	LR094281 TUBE - AIR INLET RH, Turbocharger Outlet, With Clamps / From: GA313184	-	1	Enquire
6N077B	LR036480	TUBE - OUTLET	LR036480 TUBE - OUTLET LH, Turbocharger Outlet, With Clamps / To: EA134487	-	1	Enquire
6N077B	LR056344	TUBE - OUTLET	LR056344 TUBE - OUTLET LH, Turbocharger Outlet, With Clamps / From: EA134488	-	1	Enquire
8A357	LR036489	BRACKET - TUBE	LR036489 BRACKET - TUBE Turbocharger Outlet	-	1	Enquire
9V442	LR014386	SENSOR - AIR CHARGE	LR014386 SENSOR - AIR CHARGE Secondary Compressor Outlet Pressure Sensor With Tube	-	1	Enquire
8983	LR049174	BRACKET - SUPPORT	LR049174 BRACKET - SUPPORT 3.0 V6 Diesel Electric Hybrid Eng / Tube, Turbocharger Outlet / From: FA000001	-	1	Enquire
