Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Air Cleaner (3.0L 24V DOHC V6 TC Diesel, 3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V V6 Turbo...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.63 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.59 To Order
Photo Part No Description Price (each) Stock
LR008793 SCREW $0.95 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.19 IN STOCK
Photo Part No Description Price (each) Stock
LR161843 FILTER - AIR CLEANER $59.29 IN STOCK
Photo Part No Description Price (each) Stock
LR111065 GUIDE - DIRTY AIR DUCT $22.52 To Order
Photo Part No Description Price (each) Stock
LR036428 CLEANER - AIR $405.86 To Order
Photo Part No Description Price (each) Stock
LR036427 CLEANER - AIR $481.53 To Order
LR095794 CLEANER - AIR $420.21 To Order
Photo Part No Description Price (each) Stock
LR036450 GRILLE - DIRTY AIR DUCT $10.94 To Order
LR113348 GRILLE - DIRTY AIR DUCT $10.94 To Order
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING $4.74 IN STOCK
Photo Part No Description Price (each) Stock
LR035726 SENSOR - MASS AIR FLOW $372.81 To Order
Photo Part No Description Price (each) Stock
LR049173 BRACKET - SUPPORT $48.92 To Order
Photo Part No Description Price (each) Stock
LR036464 DUCT - CLEAN AIR $88.46 To Order
Photo Part No Description Price (each) Stock
LR036465 DUCT - CLEAN AIR $137.94 To Order
Photo Part No Description Price (each) Stock
LR036466 DUCT - CLEAN AIR $113.25 To Order
Photo Part No Description Price (each) Stock
LR036447 DUCT - DIRTY AIR $181.44 To Order
LR045407 DUCT - DIRTY AIR $164.93 To Order
LR049314 MOULDING - SNOW INGRESS PROTECTOR $166.61 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR036451 DUCT - DIRTY AIR $181.44 To Order
LR045408 DUCT - DIRTY AIR $157.77 To Order
LR049313 DUCT - DIRTY AIR $181.44 To Order
View All

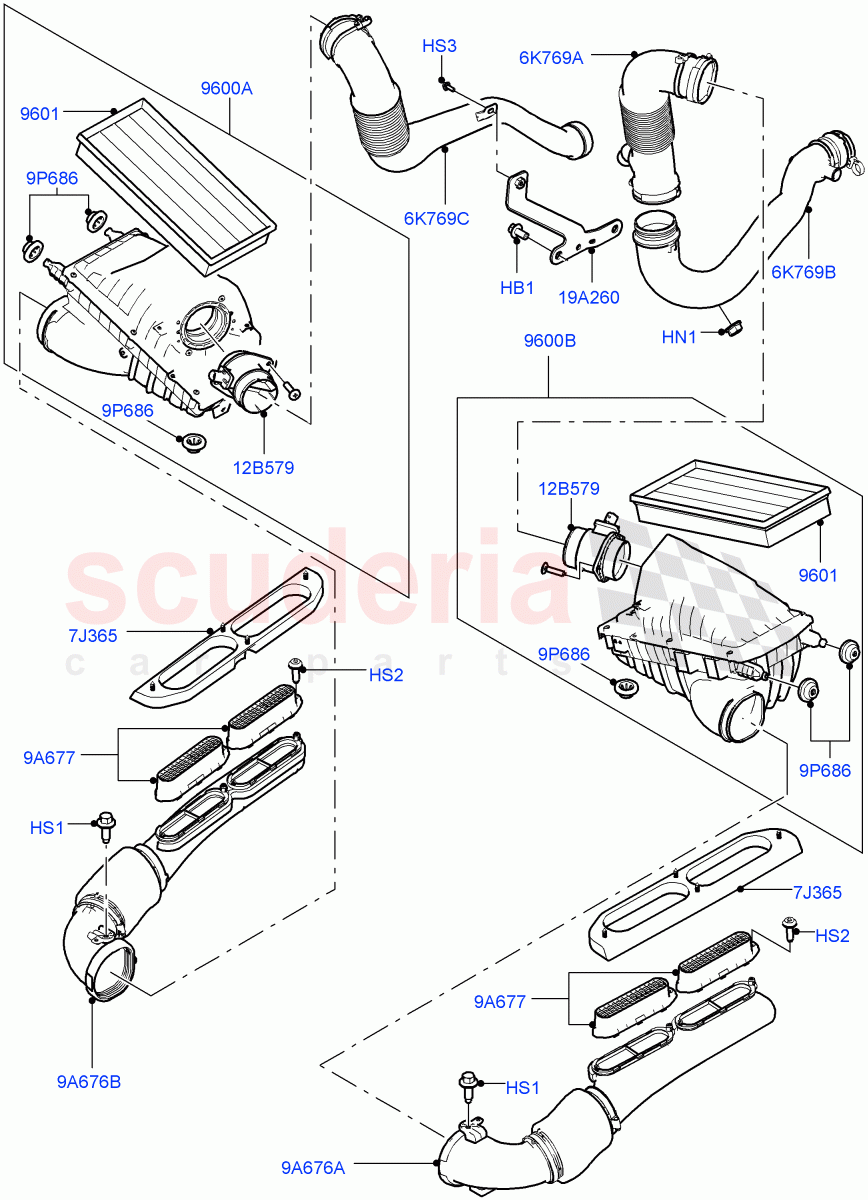

Air Cleaner (3.0L 24V DOHC V6 TC Diesel, 3.0 V6 Diesel Electric Hybrid Eng, 3.0L 24V V6 Turbo Diesel Std Flow) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
3.0 V6 Diesel Electric Hybrid Eng / Hexagonal Head, M8 X 16MM / From: FA000001
IN STOCK 		$0.63 2
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.45 1
HS1 RYG500160
SCREW
Hexagonal Head, M6 X 14MM 		$0.59 4
HS2 LR008793
SCREW
M5 X 16MM, Torx 		$0.95 4
HS3 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.19 1
6K769A LR036464
DUCT - CLEAN AIR
LH, Air Cleaner Outlet, Upper 		$88.46 1
6K769B LR036465
DUCT - CLEAN AIR
LH Lower, Turbocharger Inlet 		$137.94 1
6K769C LR036466
DUCT - CLEAN AIR
RH, Air Cleaner To Turbocharger 		$113.25 1
7J365 LR111065
GUIDE - DIRTY AIR DUCT
Dirty Air Duct, Mounted To Hood 		$22.52 2
9A676A LR036447
DUCT - DIRTY AIR
LH / To: DA104444 		$181.44 1
9A676A LR045407
DUCT - DIRTY AIR
LH / From: DA104445 / To: EA133086 		$164.93 1
9A676A LR049314
MOULDING - SNOW INGRESS PROTECTOR
LH / From: EA133087 / To: HA364606 		$166.61 1
9A676A LR100435
DUCT - DIRTY AIR
LH / From: HA364607 		$136.03 1
9A676B LR036451
DUCT - DIRTY AIR
RH / To: DA104444 		$181.44 1
9A676B LR045408
DUCT - DIRTY AIR
RH / From: DA104445 / To: EA133086 		$157.77 1
9A676B LR049313
DUCT - DIRTY AIR
RH / From: EA133087 		$181.44 1
9A677 LR036450
GRILLE - DIRTY AIR DUCT
To: HA999999 		$10.94 4
9A677 LR113348
GRILLE - DIRTY AIR DUCT
From: JA000001 		$10.94 4
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown
IN STOCK 		$4.74 6
12B579 LR035726
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor 		$372.81 2
19A260 LR049173
BRACKET - SUPPORT
3.0 V6 Diesel Electric Hybrid Eng / From: FA000001 		$48.92 1
9600A LR036428
CLEANER - AIR
RH 		$405.86 1
9600B LR036427
CLEANER - AIR
LH / To: HA323327 		$481.53 1
9600B LR095794
CLEANER - AIR
LH / From: HA323328 		$420.21 1
9601 LR161843
FILTER - AIR CLEANER
IN STOCK 		$59.29 2
