Name: Pulleys And Drive Belts (Front) (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, 3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMFA000001)
Rating: 4.7 (1 reviews)

Pulleys And Drive Belts (Front) (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, 3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Pulleys And Drive Belts (Front) (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, 3.0...

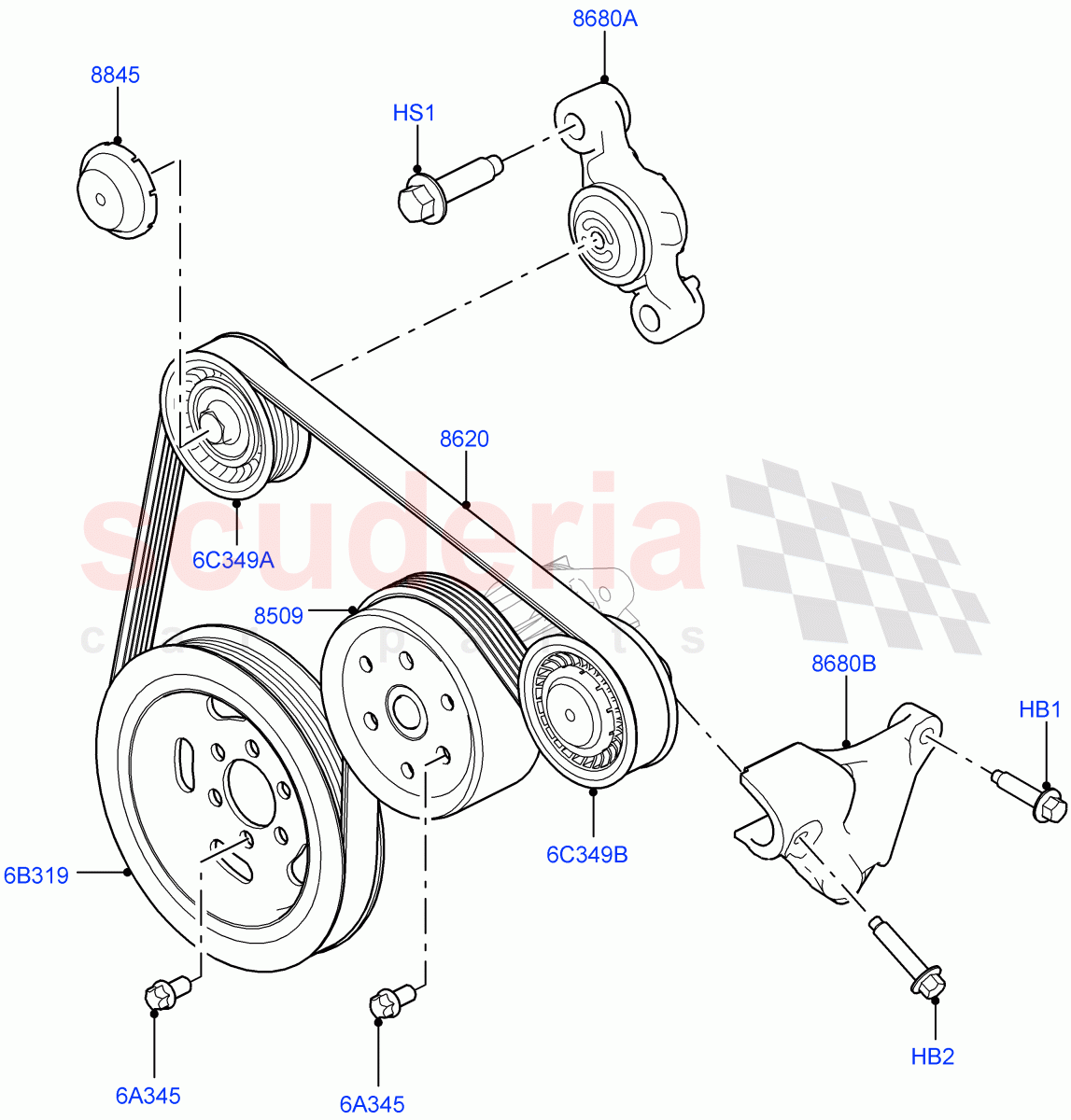

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500290	BOLT - HEX.HEAD	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR049187	BOLT	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003513	SCREW	$6.82	To Order

Photo	Part No	Description	Price (each)	Stock
	1311327	PULLEY - WATER PUMP	$17.57	To Order
	LR071880	PULLEY - WATER PUMP	$19.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049175	BELT - ACCESSORY DRIVE	$63.20	To Order
	LR071036	BELT - ACCESSORY DRIVE	$52.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022816	CAP - IDLER PULLEY	$3.12	To Order

Photo	Part No	Description	Price (each)	Stock
	1406627	BOLT - HEX.HEAD	$1.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR067312	PULLEY - CRANKSHAFT	$376.59	To Order
	LR067312	PULLEY - CRANKSHAFT	$376.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035491	BRACKET - IDLER PULLEY	$41.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049176	BRACKET - IDLER PULLEY	$107.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036304	IDLER - DRIVE BELT	$61.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR049177	IDLER - DRIVE BELT	$206.29	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500290	BOLT - HEX.HEAD IN STOCK	RYG500290 BOLT - HEX.HEAD HEX Flange, Hexagonal Head, M8 x 30MM, Support Bracket / From: EA000001 IN STOCK	$0.50	3
HB2	LR049187	BOLT	LR049187 BOLT HEX Flange, idler, M8 X 35MM, Tensioner / From: EA000001	$1.00	1
HS1	LR003513	SCREW	LR003513 SCREW HEX Flange, M12 x 40MM, Support Bracket / From: EA000001	$6.82	2
6A345	1406627	BOLT - HEX.HEAD IN STOCK	1406627 BOLT - HEX.HEAD M8 X 14MM, Pulley / From: EA000001 IN STOCK	$1.84	9
6B319	LR067312	PULLEY - CRANKSHAFT	LR067312 PULLEY - CRANKSHAFT Pulley And Damper Assembly / From: EA000001 / To: FA999999	$376.59	1
6B319	LR067312	PULLEY - CRANKSHAFT	LR067312 PULLEY - CRANKSHAFT Pulley And Damper Assembly / From: GA000001	$376.59	1
6C349A	LR036304	IDLER - DRIVE BELT IN STOCK	LR036304 IDLER - DRIVE BELT RH, Drive Belt, IN STOCK	$61.87	1
6C349B	LR049177	IDLER - DRIVE BELT	LR049177 IDLER - DRIVE BELT LH, Drive Belt,	$206.29	1
8509	1311327	PULLEY - WATER PUMP	1311327 PULLEY - WATER PUMP From: EA000001 / To: EA999999	$17.57	1
8509	LR071880	PULLEY - WATER PUMP	LR071880 PULLEY - WATER PUMP From: FA000001	$19.31	1
8620	LR049175	BELT - ACCESSORY DRIVE	LR049175 BELT - ACCESSORY DRIVE 3.0 V6 Diesel Electric Hybrid Eng / Accessory Drive / From: EA000001	$63.20	1
8620	LR071036	BELT - ACCESSORY DRIVE	LR071036 BELT - ACCESSORY DRIVE 3.0 V6 D Gen2 Twin Turbo / Accessory Drive / From: EA000001	$52.64	1
8680A	LR035491	BRACKET - IDLER PULLEY	LR035491 BRACKET - IDLER PULLEY Centre / From: EA000001	$41.48	1
8680B	LR049176	BRACKET - IDLER PULLEY	LR049176 BRACKET - IDLER PULLEY LH / From: EA000001	$107.46	1
8845	LR022816	CAP - IDLER PULLEY	LR022816 CAP - IDLER PULLEY RH, idler / From: EA000001	$3.12	1
