Pulleys And Drive Belts (Front, Solihull Plant Build) (3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, Less ACE Suspension, 3.0 V6 D Gen2 Mono Turbo, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 D Low MT ROW, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMAA000001, (V) TOJA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Pulleys And Drive Belts (Front, Solihull Plant Build) (3.0L 24V DOHC V6 TC Diesel, 8 Speed Auto...

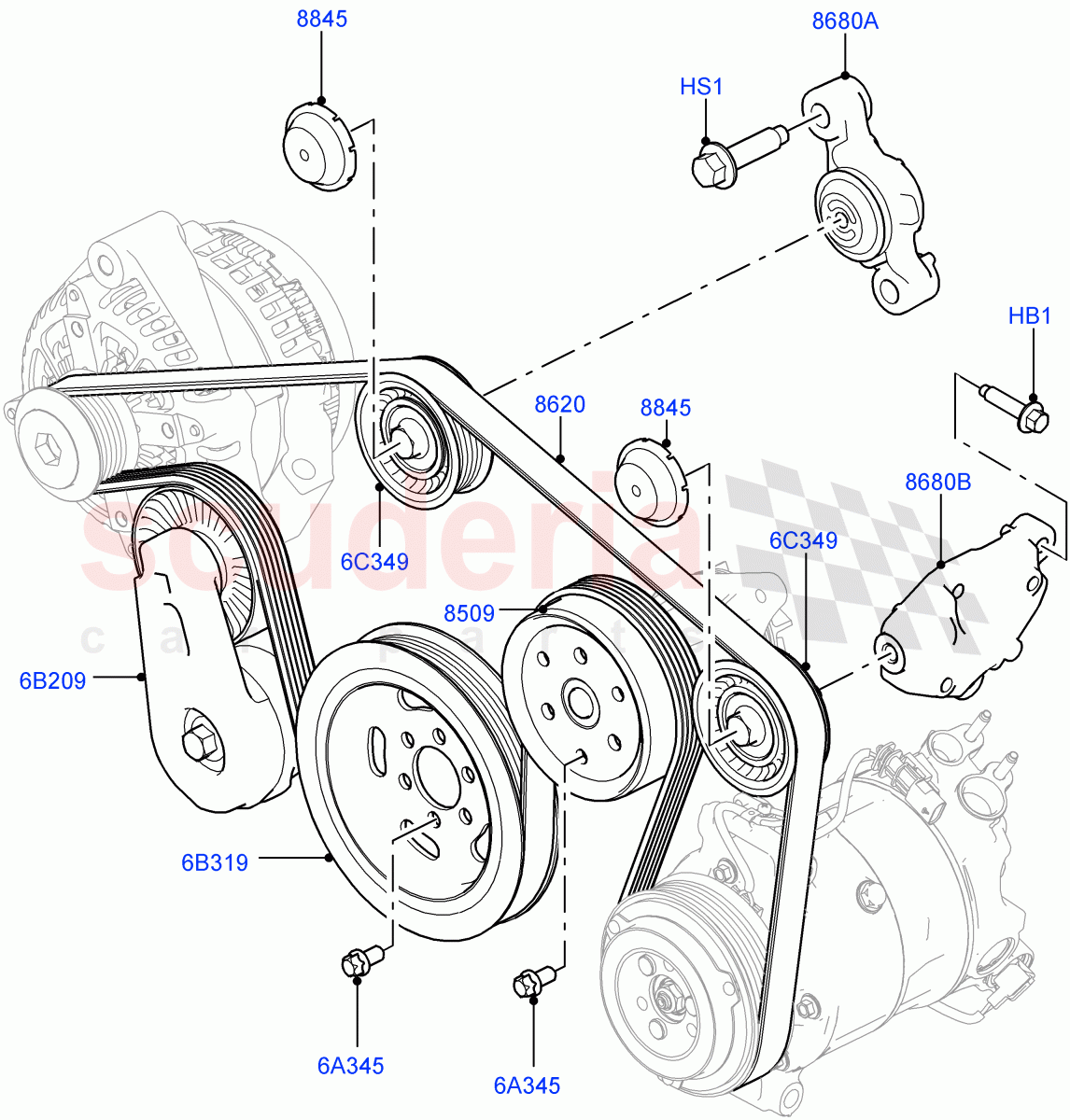

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500290	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003513	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1311327	PULLEY - WATER PUMP	Enquire	To Order
	LR071880	PULLEY - WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035502	BELT - ACCESSORY DRIVE	Enquire	To Order
	LR062006	BELT - ACCESSORY DRIVE	Enquire	To Order
	LR071038	BELT - ACCESSORY DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022816	CAP - IDLER PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1406627	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035493	TENSIONER - DRIVE BELT	Enquire	To Order
	LR079293	TENSIONER - DRIVE BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067312	PULLEY - CRANKSHAFT	Enquire	To Order
	LR067312	PULLEY - CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036304	IDLER - DRIVE BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035491	BRACKET - IDLER PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035503	BRACKET - IDLER PULLEY	Enquire	To Order
	LR077854	BRACKET - IDLER PULLEY	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG500290	BOLT - HEX.HEAD	RYG500290 BOLT - HEX.HEAD Hexagonal Head, M8 x 30MM, Support Bracket	-	3	Enquire
HS1	LR003513	SCREW	LR003513 SCREW M12 x 40MM	-	2	Enquire
6A345	1406627	BOLT - HEX.HEAD	1406627 BOLT - HEX.HEAD M8 X 14MM, Pulley	-	9	Enquire
6B209	LR035493	TENSIONER - DRIVE BELT	LR035493 TENSIONER - DRIVE BELT 3.0L 24V DOHC V6 TC Diesel / Drive Belt	-	1	Enquire
6B209	LR079293	TENSIONER - DRIVE BELT	LR079293 TENSIONER - DRIVE BELT 3.0 V6 D Gen2 Mono Turbo / Drive Belt, Order If 6B209 Tensioner Number Is GPLA-6B209-CA	-	1	Enquire
6B319	LR067312	PULLEY - CRANKSHAFT	LR067312 PULLEY - CRANKSHAFT Pulley And Damper Assembly / To: FA999999	-	1	Enquire
6B319	LR067312	PULLEY - CRANKSHAFT	LR067312 PULLEY - CRANKSHAFT Pulley And Damper Assembly / From: GA000001	-	1	Enquire
6C349	LR036304	IDLER - DRIVE BELT	LR036304 IDLER - DRIVE BELT Drive Belt,	-	2	Enquire
8509	1311327	PULLEY - WATER PUMP	1311327 PULLEY - WATER PUMP 3.0L 24V DOHC V6 TC Diesel	-	1	Enquire
8509	LR071880	PULLEY - WATER PUMP	LR071880 PULLEY - WATER PUMP 3.0 V6 D Gen2 Twin Turbo / From: FA000001	-	1	Enquire
8620	LR035502	BELT - ACCESSORY DRIVE	LR035502 BELT - ACCESSORY DRIVE 3.0L 24V DOHC V6 TC Diesel / Accessory Drive	-	1	Enquire
8620	LR062006	BELT - ACCESSORY DRIVE	LR062006 BELT - ACCESSORY DRIVE 3.0 V6 D Gen2 Mono Turbo / Accessory Drive, Order If 6B209 Tensioner Number Is CPLA-6A228-AB	-	1	Enquire
8620	LR071038	BELT - ACCESSORY DRIVE	LR071038 BELT - ACCESSORY DRIVE 3.0 V6 D Gen2 Mono Turbo / Accessory Drive, Order If 6B209 Tensioner Number Is GPLA-6B209-CA	-	1	Enquire
8680A	LR035491	BRACKET - IDLER PULLEY	LR035491 BRACKET - IDLER PULLEY Centre	-	1	Enquire
8680B	LR035503	BRACKET - IDLER PULLEY	LR035503 BRACKET - IDLER PULLEY LH / To: FA238664	-	1	Enquire
8680B	LR077854	BRACKET - IDLER PULLEY	LR077854 BRACKET - IDLER PULLEY LH / From: FA238665	-	1	Enquire
8845	LR022816	CAP - IDLER PULLEY	LR022816 CAP - IDLER PULLEY idler	-	2	Enquire
