Name: Fuel Tank & Related Parts (2.0L 16V TIVCT T/C 240PS Petrol)
Rating: 5.0 (1 reviews)

Fuel Tank & Related Parts (2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Fuel Tank & Related Parts (2.0L 16V TIVCT T/C 240PS Petrol)

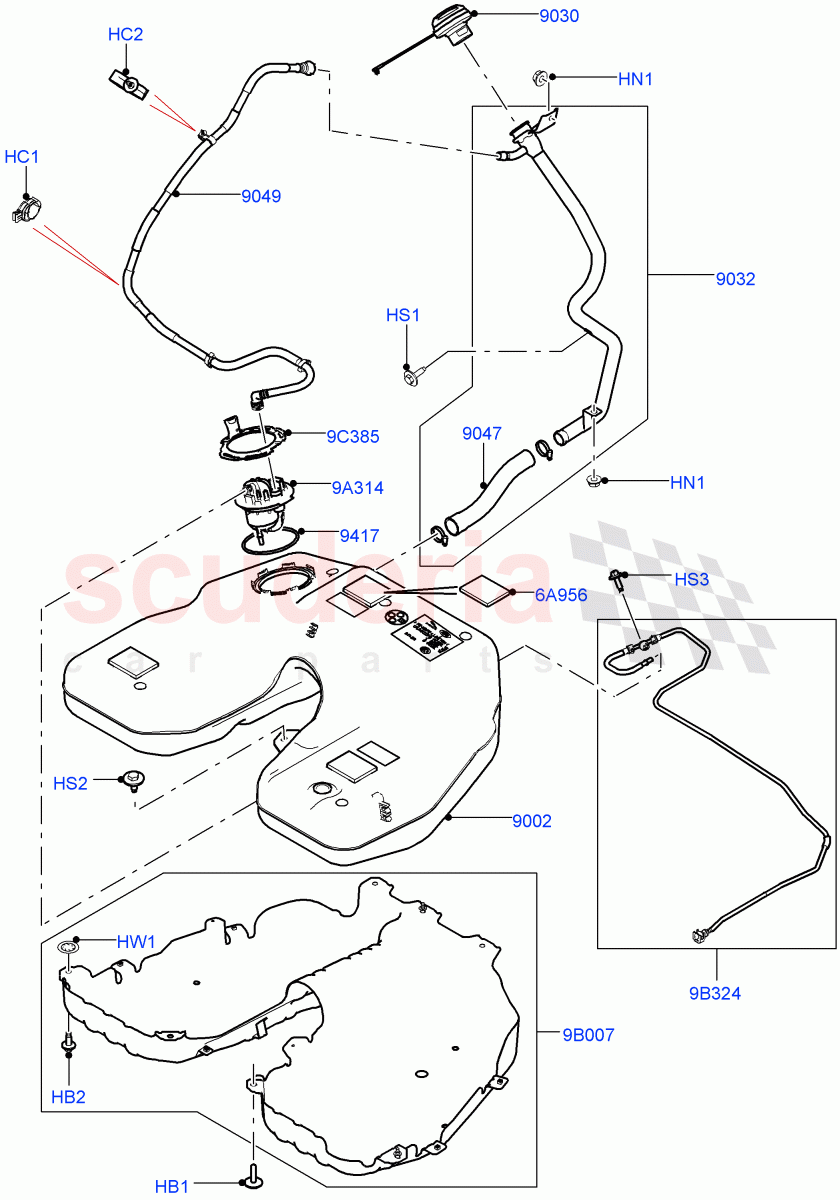

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034249	BOLT AND WASHER - HEX.HEAD	$2.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR037935	BOLT AND WASHER - HEX.HEAD	$2.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR044902	CLIP - HOSE	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	$4.23	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500820	SCREW AND WASHER	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	FS105166	SCREW	$0.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WJ110007L	WASHER	$0.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR069000	TANK - FUEL	$1,307.07	To Order
	LR079270	TANK - FUEL	$1,307.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053665	CAP - FUEL TANK FILLER	$34.54	To Order
	LR138718	CAP - FUEL TANK FILLER	$37.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051671	PIPE - FUEL FILLER	$215.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051676	HOSE - FILLER PIPE	$215.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053462	TUBE - FUEL VAPOUR	$67.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.05	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	LR025789	FOAM PAD - ENERGY ABSORBING	$22.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048891	COVER - FUEL SENDER	$181.58	To Order
	LR124692	COVER - FUEL SENDER	$149.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054812	SHIELD - FUEL TANK	$646.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049224	TUBE - FUEL	$275.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041099	RING - RETAINING	$28.94	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR034249	BOLT AND WASHER - HEX.HEAD IN STOCK	LR034249 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 x 37MM IN STOCK	$2.77	4
HB2	LR037935	BOLT AND WASHER - HEX.HEAD IN STOCK	LR037935 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 X 25MM IN STOCK	$2.30	3
HC1	LR044902	CLIP - HOSE	LR044902 CLIP - HOSE 10-25 X 1.5-3, Plastic	$2.38	1
HC2	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Plastic, Upper	$4.23	2
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 IN STOCK	$1.45	2
HS1	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM IN STOCK	$0.92	2
HS2	RYG500820	SCREW AND WASHER	RYG500820 SCREW AND WASHER Hexagonal Head, M6 X 16MM	$0.63	2
HS3	FS105166	SCREW IN STOCK	FS105166 SCREW HEX Flange, M5 X 16MM IN STOCK	$0.63	1
HW1	WJ110007L	WASHER IN STOCK	WJ110007L WASHER 10MM, Fuel Tank, Shield IN STOCK	$0.72	3
6A956	LR025789	FOAM PAD - ENERGY ABSORBING	LR025789 FOAM PAD - ENERGY ABSORBING 100mm x 80mm x 10mm	$22.37	3
9A314	LR048891	COVER - FUEL SENDER	LR048891 COVER - FUEL SENDER To: EA999999	$181.58	1
9A314	LR124692	COVER - FUEL SENDER	LR124692 COVER - FUEL SENDER From: FA000001 / To: GA999999	$149.44	1
9B007	LR054812	SHIELD - FUEL TANK	LR054812 SHIELD - FUEL TANK Protective	$646.61	1
9B324	LR049224	TUBE - FUEL	LR049224 TUBE - FUEL Feed	$275.96	1
9C385	LR041099	RING - RETAINING	LR041099 RING - RETAINING Cover	$28.94	1
9002	LR069000	TANK - FUEL	LR069000 TANK - FUEL To: FA243283	$1,307.07	1
9002	LR079270	TANK - FUEL	LR079270 TANK - FUEL From: FA243284	$1,307.07	1
9030	LR053665	CAP - FUEL TANK FILLER	LR053665 CAP - FUEL TANK FILLER For Unleaded Fuel / To: MA421250	$34.54	1
9030	LR138718	CAP - FUEL TANK FILLER	LR138718 CAP - FUEL TANK FILLER For Unleaded Fuel / From: MA421251	$37.60	1
9032	LR051671	PIPE - FUEL FILLER	LR051671 PIPE - FUEL FILLER	$215.41	1
9047	LR051676	HOSE - FILLER PIPE	LR051676 HOSE - FILLER PIPE Fuel Tank Filler Neck - Unleaded	$215.41	1
9049	LR053462	TUBE - FUEL VAPOUR	LR053462 TUBE - FUEL VAPOUR	$67.82	1
9417	LR117476	GASKET ARRIVING SOON	LR117476 GASKET Cover, O-Ring ARRIVING SOON	$10.05	1
