Fuel Lines (Centre And Front) (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Fuel Lines (Centre And Front) (2.0L 16V TIVCT T/C 240PS Petrol)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR077858 BRACKET - FUEL TUBE SUPPORT $39.97 To Order
Photo Part No Description Price (each) Stock
LR057723 Pipe - Fuel $70.07 To Order
Photo Part No Description Price (each) Stock
LR057557 Pipe - Fuel $103.07 To Order
Photo Part No Description Price (each) Stock
LR055691 TUBE - FUEL SUPPLY AND VAPOUR $98.98 To Order
LR086375 TUBE - FUEL SUPPLY AND VAPOUR $128.76 To Order
Photo Part No Description Price (each) Stock
LR057631 Tube - Fuel Supply And Vapour $175.25 To Order
Photo Part No Description Price (each) Stock
LR044464 PAD - FOAM $28.18 To Order
View All

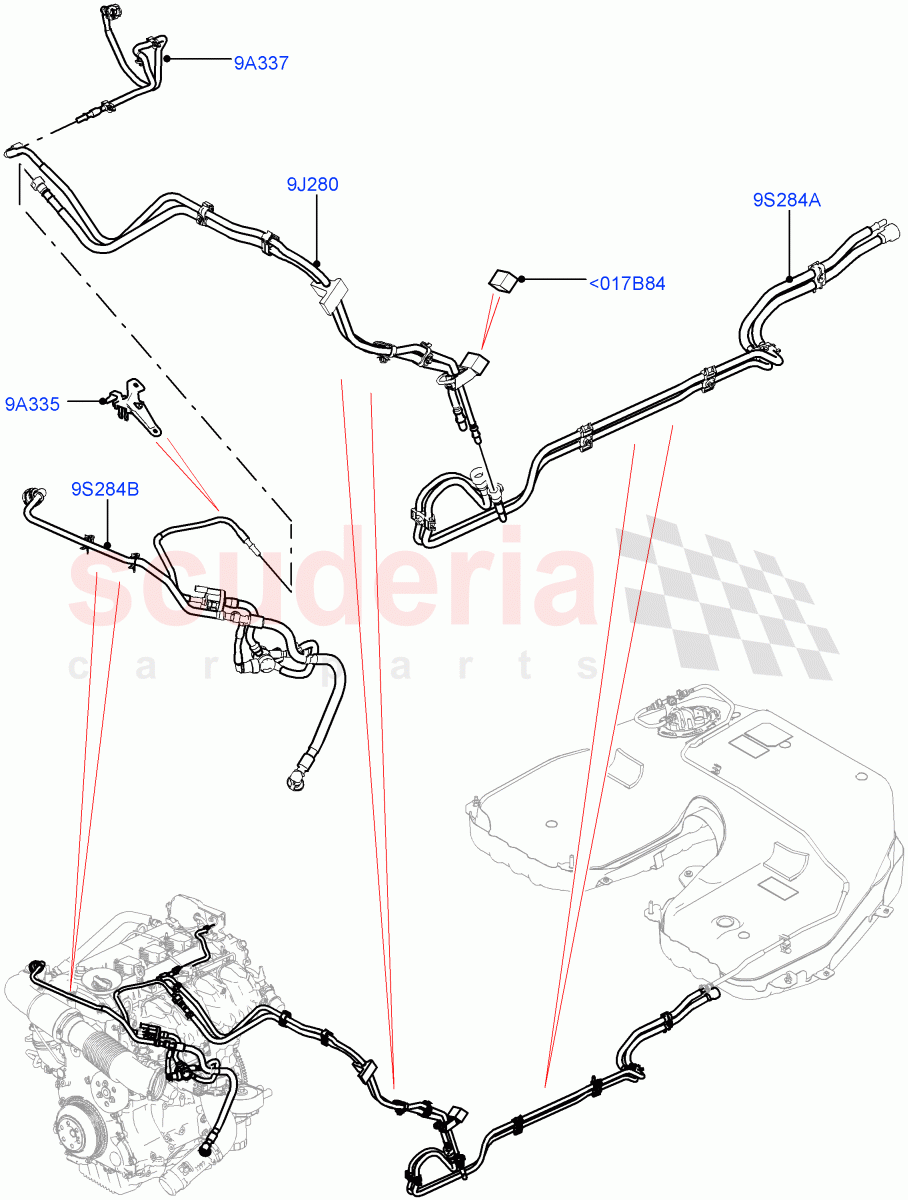

Fuel Lines (Centre And Front) (2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84 LR044464
PAD - FOAM 		$28.18 1
9A335 LR077858
BRACKET - FUEL TUBE SUPPORT 		$39.97 1
9A337 LR057723
Pipe - Fuel 		$70.07 1
9J280 LR057557
Pipe - Fuel
Feed, Front 		$103.07 1
9S284A LR055691
TUBE - FUEL SUPPLY AND VAPOUR
Return, Set Of 2 Pieces, Supply / To: GA293868 		$98.98 1
9S284A LR086375
TUBE - FUEL SUPPLY AND VAPOUR
Return, Set Of 2 Pieces, Supply / From: GA293869 		$128.76 1
9S284B LR057631
Tube - Fuel Supply And Vapour 		$175.25 1
