Turbocharger (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Turbocharger (2.0L 16V TIVCT T/C 240PS Petrol)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR025680 M10 FLANGED HEX NUT $7.66 IN STOCK
Photo Part No Description Price (each) Stock
LR031895 BOLT $1.49 To Order
Photo Part No Description Price (each) Stock
RYP500900 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
FS108126 SCREW $1.38 IN STOCK
Photo Part No Description Price (each) Stock
4558527 SCREW $0.77 To Order
Photo Part No Description Price (each) Stock
LR025392 STUD $5.51 To Order
Photo Part No Description Price (each) Stock
LR028235 WASHER $3.78 To Order
Photo Part No Description Price (each) Stock
LR046643 WASHER - COPPER $8.19 To Order
Photo Part No Description Price (each) Stock
LR045337 TUBE - WATER OUTLET $38.40 To Order
Photo Part No Description Price (each) Stock
LR025852 GASKET - EXHAUST MANIFOLD $31.20 To Order
Photo Part No Description Price (each) Stock
LR025565 GASKET - TURBOCHARGER $6.79 To Order
Photo Part No Description Price (each) Stock
LR025523 FILTER - TURBOCHARGER OIL FEED $13.02 IN STOCK
Photo Part No Description Price (each) Stock
LR025517 BOLT $14.94 To Order
LR105291 BOLT $22.84 To Order
Photo Part No Description Price (each) Stock
LR025518 HOSE - TURBOCHARGER OIL RETURN $100.54 To Order
LR075622 HOSE - TURBOCHARGER OIL RETURN $63.91 To Order
Photo Part No Description Price (each) Stock
LR028821 PIPE - OIL FEED $319.99 To Order
LR072563 PIPE - OIL FEED $74.30 To Order
LR081088 PIPE - OIL FEED $156.75 To Order
Photo Part No Description Price (each) Stock
LR066505 TURBOCHARGER $2,569.32 To Order
LR107484 TURBOCHARGER $1,637.04 To Order
Photo Part No Description Price (each) Stock
LR057495 Hose $130.53 To Order
Photo Part No Description Price (each) Stock
LR032083 GASKET - TURBOCHARGER $5.15 To Order
Photo Part No Description Price (each) Stock
LR024986 HOSE - TURBOCHAGER COOLING INLET $60.65 To Order
LR087725 HOSE - TURBOCHAGER COOLING INLET $57.51 To Order
Photo Part No Description Price (each) Stock
LR041198 CONNECTION - WATER OUTLET $33.56 To Order
LR086649 CONNECTION - WATER OUTLET $33.31 To Order
Photo Part No Description Price (each) Stock
LR041432 BOLT - BANJO $5.31 To Order
Photo Part No Description Price (each) Stock
LR045933 BOLT - BANJO $56.63 To Order
Photo Part No Description Price (each) Stock
LR025679 SHIELD - EXHAUST MANIFOLD HEAT $48.53 To Order
Photo Part No Description Price (each) Stock
LR048511 VALVE - WASTEGATE - TURBOCHARGER $343.07 To Order
LR074184 VALVE - WASTEGATE - TURBOCHARGER $184.15 To Order
Photo Part No Description Price (each) Stock
LR061214 HEAT SHIELD - TURBOCHARGER $34.20 To Order
Photo Part No Description Price (each) Stock
LR032630 SLEEVE - PROTECTIVE $9.37 To Order
View All

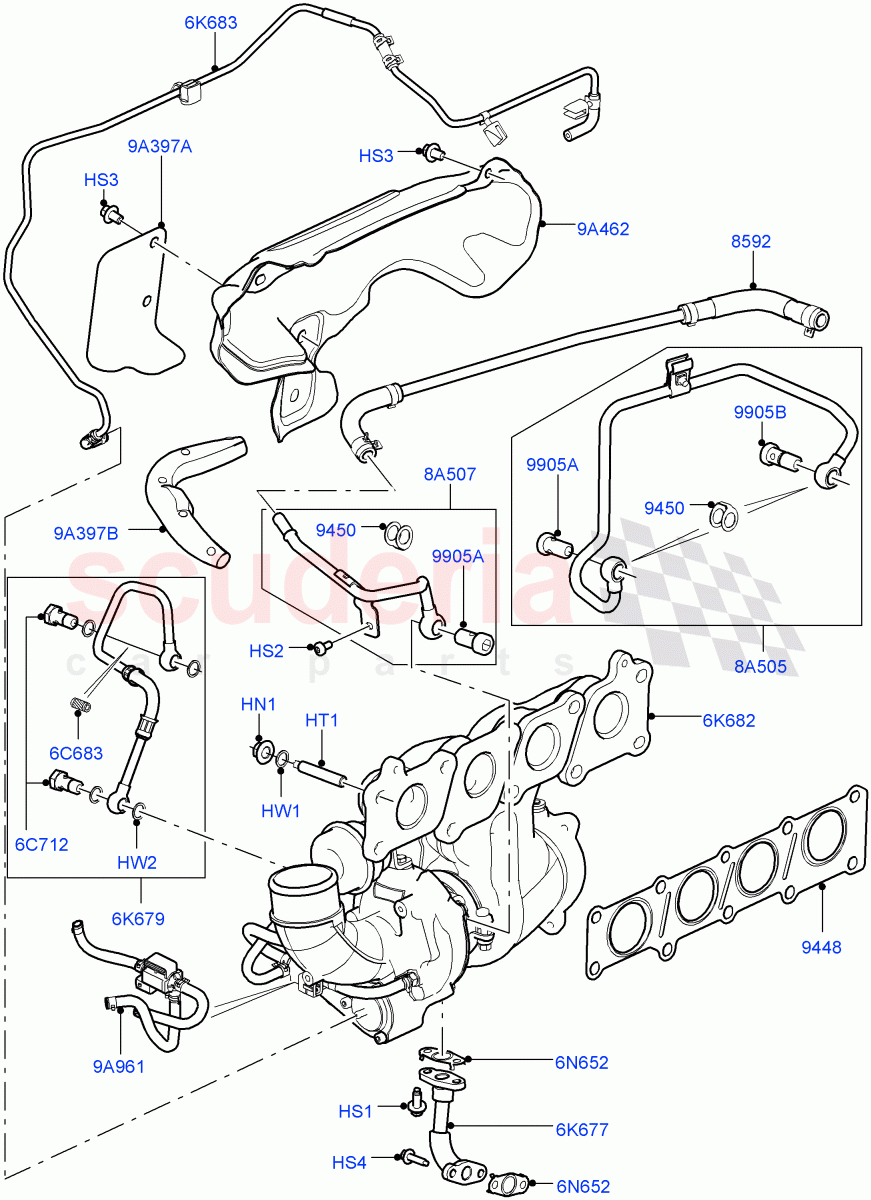

Turbocharger (2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR025680
M10 FLANGED HEX NUT
M10
IN STOCK 		$7.66 10
HS1 LR031895
BOLT
M6 X 14MM, Tube - Oil Return 		$1.49 2
HS2 RYP500900
SCREW
M6 x 12MM, Torx 		$0.63 1
HS3 FS108126
SCREW
M8 x 12MM
IN STOCK 		$1.38 4
HS4 4558527
SCREW
M6 X 20MM 		$0.77 2
HT1 LR025392
STUD
M10 x 22MM/M10 x 32MM 		$5.51 10
HW1 LR028235
WASHER
10.3 X 20.8 X 4 		$3.78 10
HW2 LR046643
WASHER - COPPER
M12 		$8.19 1
6C683 LR025523
FILTER - TURBOCHARGER OIL FEED
Filter - Turbocharger Oil Feed Hose
IN STOCK 		$13.02 1
6C712 LR025517
BOLT
Filter - Turbocharger Oil Feed Hose / To: FA999999 		$14.94 1
6C712 LR105291
BOLT
Filter - Turbocharger Oil Feed Hose / From: GA000001 		$22.84 1
6K677 LR025518
HOSE - TURBOCHARGER OIL RETURN
To: EA196785 		$100.54 1
6K677 LR075622
HOSE - TURBOCHARGER OIL RETURN
From: EA196786 		$63.91 1
6K679 LR028821
PIPE - OIL FEED
To: EA196785 		$319.99 1
6K679 LR072563
PIPE - OIL FEED
From: EA196786 / To: FA999999 		$74.30 1
6K679 LR081088
PIPE - OIL FEED
From: GA000001 		$156.75 1
6K682 LR066505
TURBOCHARGER
New Part-Please Check For Reman Version 		$2,569.32 1
6K682 LR107484
TURBOCHARGER
Remanufactured Part 		$1,637.04 1
6K683 LR057495
Hose
Hose Air From Turbocharger To Inlet Manifold 		$130.53 1
6N652 LR032083
GASKET - TURBOCHARGER
Gasket - Turbocharger Oil Return Hose 		$5.15 2
8A505 LR024986
HOSE - TURBOCHAGER COOLING INLET
Hose Water Inlet To Turbocharger / To: EA196785 		$60.65 1
8A505 LR087725
HOSE - TURBOCHAGER COOLING INLET
Hose Water Inlet To Turbocharger / From: EA196786 		$57.51 1
8A507 LR041198
CONNECTION - WATER OUTLET
Hose Water Outlet From Turbocharger / To: EA196785 		$33.56 1
8A507 LR086649
CONNECTION - WATER OUTLET
Hose Water Outlet From Turbocharger / From: EA196786 		$33.31 1
9A397A LR061214
HEAT SHIELD - TURBOCHARGER
Turbocharger 		$34.20 1
9A397B LR032630
SLEEVE - PROTECTIVE
Turbo Coolant Pipe 		$9.37 1
9A462 LR025679
SHIELD - EXHAUST MANIFOLD HEAT
Exhaust Manifold 		$48.53 1
9A961 LR048511
VALVE - WASTEGATE - TURBOCHARGER
To: EA191224 		$343.07 1
9A961 LR074184
VALVE - WASTEGATE - TURBOCHARGER
From: EA191225 		$184.15 1
8592 LR045337
TUBE - WATER OUTLET
Tube Water Outlet To Cylinder Block 		$38.40 1
9448 LR025852
GASKET - EXHAUST MANIFOLD
Manifold To Cylinder Head 		$31.20 1
9450 LR025565
GASKET - TURBOCHARGER
Gasket - Banjo Bolt Water Inlet To Turbocharger 		$6.79 3
9905A LR041432
BOLT - BANJO
M14 		$5.31 2
9905B LR045933
BOLT - BANJO
M14 		$56.63 1
