Name: Fuel Injection Pump-Engine Mounted (2.0L 16V TIVCT T/C 240PS Petrol)
Rating: 4.5 (1 reviews)

View All

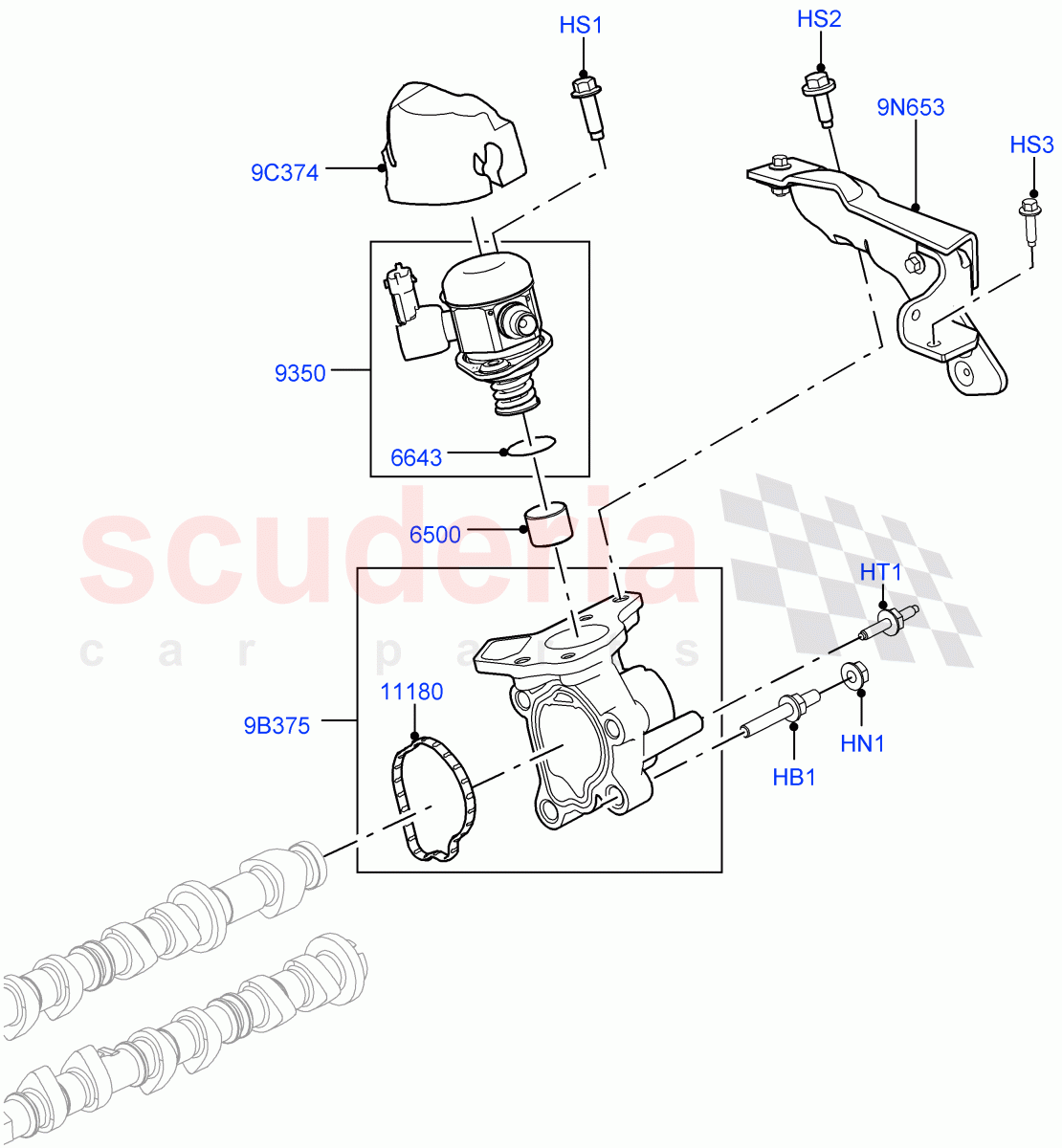

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR057591	BOLT	$4.97	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067230	BOLT	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500980	SCREW AND WASHER	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	4467593	BOLT - HEX.HEAD	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068877	STUD	$4.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038311	TAPPET	$64.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107899	SEAL - FUEL INJECTION PUMP	$6.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057504	Pump - Fuel	$483.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034323	SEAL - FUEL PUMP SUPPORT HOUSING	$30.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035936	COVER - FUEL PUMP	$277.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057503	Acoustic Cover - Fuel Pump	$60.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057558	Bracket - Fuel Tube Support	$33.47	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR057591	BOLT	LR057591 BOLT M8 x 40 + M8 x 16	$4.97	4
HN1	FN108046	NUT - HEX.	FN108046 NUT - HEX. Hexagonal Head, M8	$2.00	2
HS1	LR067230	BOLT	LR067230 BOLT M6 x 22MM	$3.53	2
HS2	RYG500980	SCREW AND WASHER	RYG500980 SCREW AND WASHER M8 x 24MM	$1.32	1
HS3	4467593	BOLT - HEX.HEAD	4467593 BOLT - HEX.HEAD Hexagonal Head, M6 X 20MM	$0.68	1
HT1	LR068877	STUD	LR068877 STUD Stud M6x15 + M6x22	$4.69	1
9B375	LR035936	COVER - FUEL PUMP	LR035936 COVER - FUEL PUMP	$277.16	1
9C374	LR057503	Acoustic Cover - Fuel Pump	LR057503 Acoustic Cover - Fuel Pump	$60.13	1
9N653	LR057558	Bracket - Fuel Tube Support	LR057558 Bracket - Fuel Tube Support Shield	$33.47	1
6500	LR038311	TAPPET	LR038311 TAPPET For Fuel Pump	$64.39	1
6643	LR107899	SEAL - FUEL INJECTION PUMP	LR107899 SEAL - FUEL INJECTION PUMP For Fuel Pump	$6.79	1
9350	LR057504	Pump - Fuel	LR057504 Pump - Fuel	$483.42	1
11180	LR034323	SEAL - FUEL PUMP SUPPORT HOUSING	LR034323 SEAL - FUEL PUMP SUPPORT HOUSING Fuel Pump Support Housing To Cylinder Head	$30.40	1

Fuel Injection Pump-Engine Mounted (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]
