Intercooler/Air Ducts And Hoses (Main Unit) (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Intercooler/Air Ducts And Hoses (Main Unit) (2.0L 16V TIVCT T/C 240PS Petrol)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB106086 BOLT $2.59 To Order
Photo Part No Description Price (each) Stock
FB106116 BOLT - HEX.HEAD $1.00 IN STOCK
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.61 IN STOCK
Photo Part No Description Price (each) Stock
LR076935 NUT $7.42 To Order
LR072644 NUT $3.39 To Order
Photo Part No Description Price (each) Stock
LR067015 CLIP - SPECIAL $2.50 To Order
LR077388 CLIP - SPECIAL $2.11 IN STOCK
Photo Part No Description Price (each) Stock
LR007399 INSULATOR - RUBBER $1.59 IN STOCK
Photo Part No Description Price (each) Stock
LR034552 INSULATOR - INTERCOOLER $9.66 To Order
Photo Part No Description Price (each) Stock
LR038854 BUSH - INSULATING $2.98 To Order
Photo Part No Description Price (each) Stock
LR036432 INTERCOOLER $309.09 To Order
View All

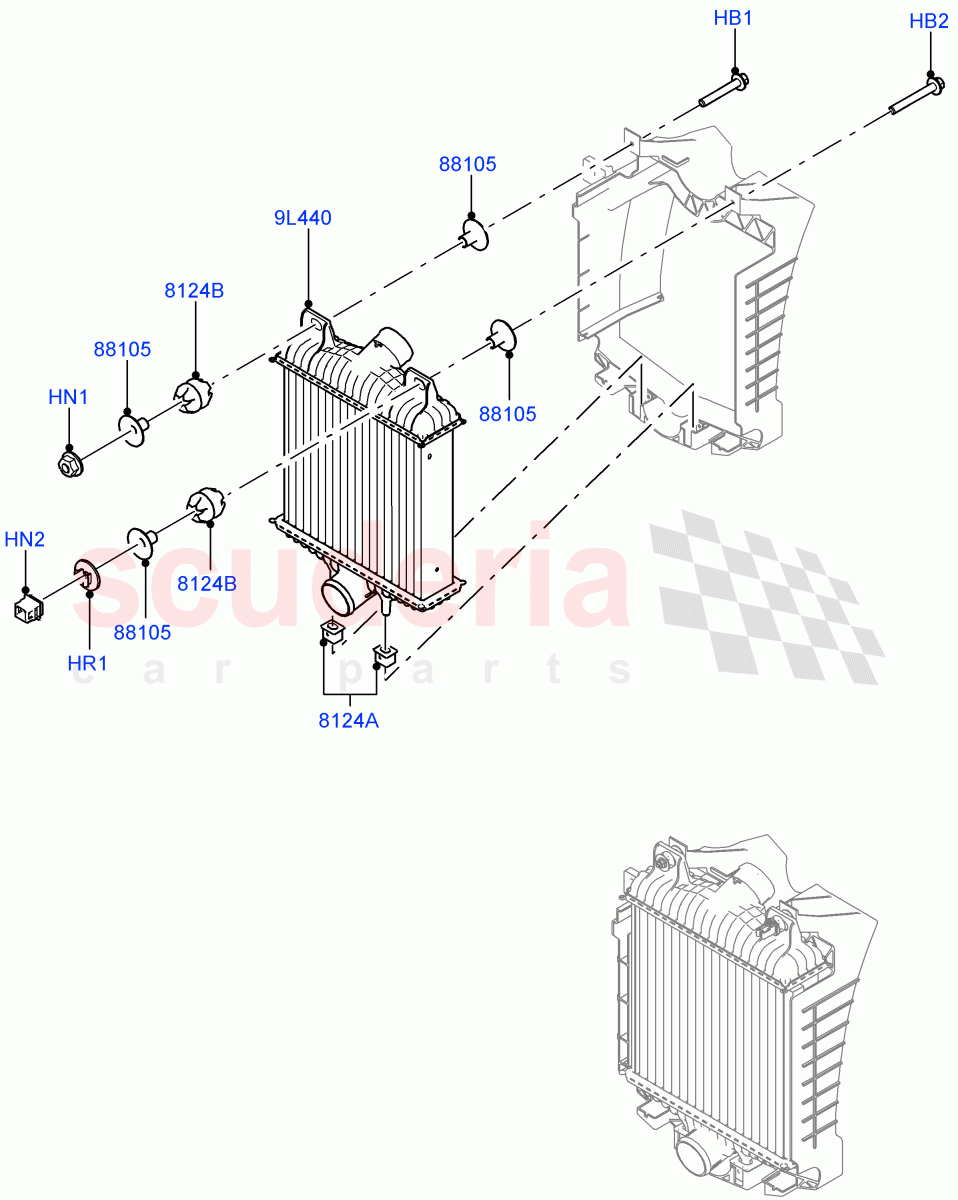

Intercooler/Air Ducts And Hoses (Main Unit) (2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB106086
BOLT
M6 X 40MM 		$2.59 1
HB2 FB106116
BOLT - HEX.HEAD
M6 x 55MM
IN STOCK 		$1.00 1
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6
IN STOCK 		$0.61 1
HN2 LR076935
NUT
Plastic / From: FA218336 / To: FA999999 		$7.42 1
HN2 LR072644
NUT
Plastic / To: FA218335 		$3.39 1
HR1 LR067015
CLIP - SPECIAL
To: FA227940 		$2.50 1
HR1 LR077388
CLIP - SPECIAL
M6 / From: FA227941
IN STOCK 		$2.11 1
9L440 LR036432
INTERCOOLER 		$309.09 1
8124A LR007399
INSULATOR - RUBBER
Bottom, Intercooler
IN STOCK 		$1.59 2
8124B LR034552
INSULATOR - INTERCOOLER
Intercooler, Top 		$9.66 2
88105 LR038854
BUSH - INSULATING
Intercooler, Top 		$2.98 4
