Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] - Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (2.0L 16V TIVCT T/C 240PS Petrol)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106106 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
RYP500810 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR057628 Connector - Hose Enquire To Order
Photo Part No Description Price (each) Stock
LR057589 Tube Enquire To Order
Photo Part No Description Price (each) Stock
LR057588 Bracket - Support Enquire To Order
LR085500 BRACKET - AIR DUCT SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR021587 SENSOR - AIR TEMPERATURE & PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR057205 HOSE - COMPRESSED AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR057590 Hose - Compressed Air Enquire To Order
Photo Part No Description Price (each) Stock
LR057592 Hose - Compressed Air Enquire To Order
View All

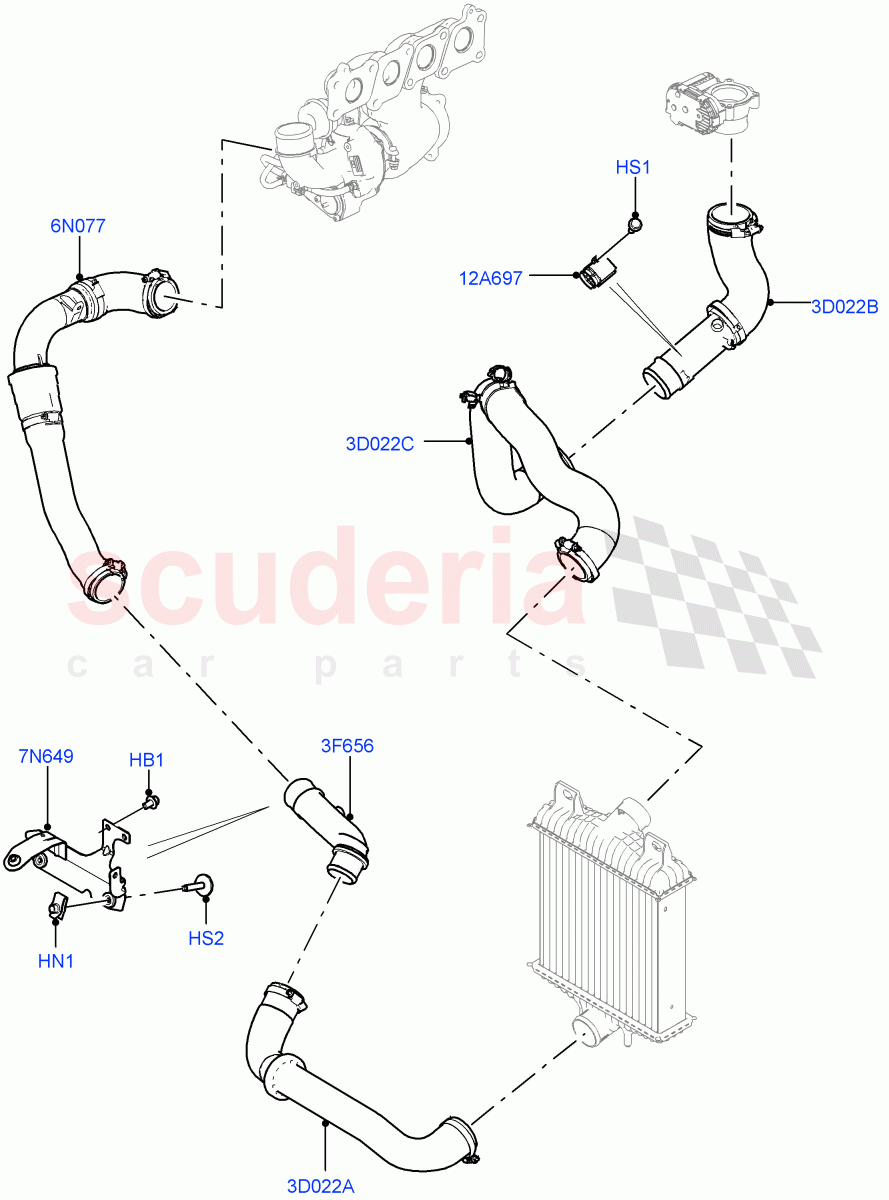

Intercooler/Air Ducts And Hoses (Air Ducts And Hoses) (2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106106
BOLT
Hexagonal Head, M6 X 10MM 		- 2 Enquire
HN1 LR000053
NUT - FLANGED
M6 		- 2 Enquire
HS1 RYP500810
SCREW
Hexagonal Head, M5 x 20MM 		- 1 Enquire
HS2 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 		- 2 Enquire
3D022A LR057205
HOSE - COMPRESSED AIR 		- 1 Enquire
3D022B LR057590
Hose - Compressed Air 		- 1 Enquire
3D022C LR057592
Hose - Compressed Air 		- 1 Enquire
3F656 LR057628
Connector - Hose 		- 1 Enquire
6N077 LR057589
Tube
Inlet 		- 1 Enquire
7N649 LR057588
Bracket - Support
To: FA999999 		- 1 Enquire
7N649 LR085500
BRACKET - AIR DUCT SUPPORT
From: GA000001 		- 1 Enquire
12A697 LR021587
SENSOR - AIR TEMPERATURE & PRESSURE
Sensor - Air Temperature And Pressure 		- 1 Enquire
