Name: Inlet Manifold (2.0L 16V TIVCT T/C 240PS Petrol)
Rating: 5.0 (1 reviews)

View All

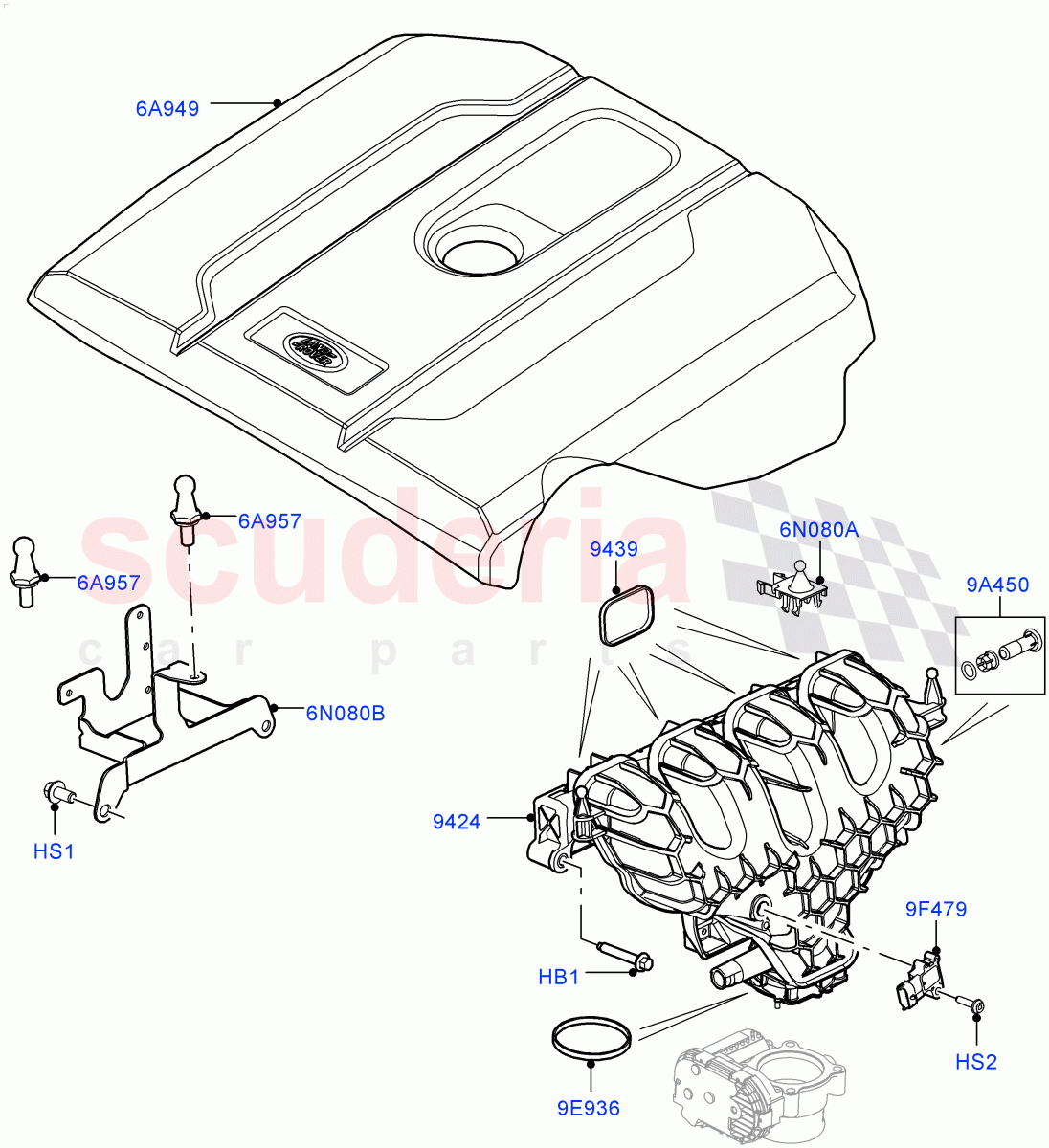

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR048504	BOLT	$3.59	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110206	BOLT - HEX.HEAD	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022159	SCREW	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055363	MANIFOLD - INLET	$776.19	To Order
	LR088577	INLET MANIFOLD WITH INTERCOOLER	$797.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057234	GASKET - INTAKE MANIFOLD	$10.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR057449	Cover	$309.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038978	STUD - BALL	$3.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052965	KIT - INTAKE PLUG	$9.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024989	GASKET - THROTTLE	$16.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038762	SENSOR - MANIFOLD ABSOLUTE PRESSURE	$63.48	To Order
	LR075167	SENSOR - MANIFOLD ABSOLUTE PRESSURE	$133.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057610	Bracket - Support	$15.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057447	Bracket - Support	$13.70	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR048504	BOLT	LR048504 BOLT M8 x 55MM, Manifold To Cylinder Head	$3.59	5
HS1	FS110206	BOLT - HEX.HEAD	FS110206 BOLT - HEX.HEAD Hexagonal Head, M10 X 20MM	$0.76	2
HS2	LR022159	SCREW	LR022159 SCREW M6 x 25MM, MAP Sensor	$3.03	1
6A949	LR057449	Cover	LR057449 Cover Engine, Top	$309.91	1
6A957	LR038978	STUD - BALL	LR038978 STUD - BALL Upper Engine Cover Support	$3.65	2
6N080A	LR057610	Bracket - Support	LR057610 Bracket - Support LH, Engine Cover	$15.38	1
6N080B	LR057447	Bracket - Support	LR057447 Bracket - Support RH, Engine Cover	$13.70	1
9A450	LR052965	KIT - INTAKE PLUG	LR052965 KIT - INTAKE PLUG	$9.02	1
9E936	LR024989	GASKET - THROTTLE	LR024989 GASKET - THROTTLE Throttle Body To Intake	$16.46	1
9F479	LR038762	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR038762 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / To: EA196785	$63.48	1
9F479	LR075167	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR075167 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: EA196786	$133.93	1
9424	LR055363	MANIFOLD - INLET	LR055363 MANIFOLD - INLET To: EA196785	$776.19	1
9424	LR088577	INLET MANIFOLD WITH INTERCOOLER	LR088577 INLET MANIFOLD WITH INTERCOOLER From: EA196786	$797.07	1
9439	LR057234	GASKET - INTAKE MANIFOLD IN STOCK	LR057234 GASKET - INTAKE MANIFOLD Manifold To Cylinder Head IN STOCK	$10.55	4

Inlet Manifold (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]
