View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000302	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025378	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000376	PLUG - THREADED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004820	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025380	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045335	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022159	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048491	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025523	FILTER - TURBOCHARGER OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025670	RETAINER AND SEAL - CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045099	NOZZLE - PISTON COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025005	SENSOR - ENGINE KNOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038756	SENSOR - CRANKSHAFT POSITION - CPS	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR000302	BOLT - HEX.HEAD	LR000302 BOLT - HEX.HEAD M8 X 35MM	-	2	Enquire
HM1	LR025378	DOWEL	LR025378 DOWEL Pin - Dowell	-	2	Enquire
HP1	LR000376	PLUG - THREADED	LR000376 PLUG - THREADED M10 X 11.5, Threaded Timing Plug	-	1	Enquire
HP2	LR004820	PLUG - BLANKING	LR004820 PLUG - BLANKING 16MM, Blanking	-	2	Enquire
HP3	LR025380	PLUG - ENGINE	LR025380 PLUG - ENGINE 25MM	-	1	Enquire
HS1	LR045335	SCREW	LR045335 SCREW M6 X 14MM	-	6	Enquire
HS2	LR000622	SCREW	LR000622 SCREW M6 x 12MM, Oil Lubrication Jet	-	4	Enquire
HS3	LR022159	SCREW	LR022159 SCREW M6 x 25MM, Sensor - Crankshaft Position - CPS	-	2	Enquire
6C683	LR025523	FILTER - TURBOCHARGER OIL FEED	LR025523 FILTER - TURBOCHARGER OIL FEED Filter - Turbocharger Oil Feed Hose	-	1	Enquire
6K301	LR025670	RETAINER AND SEAL - CRANKSHAFT	LR025670 RETAINER AND SEAL - CRANKSHAFT	-	1	Enquire
6K868	LR045099	NOZZLE - PISTON COOLING	LR045099 NOZZLE - PISTON COOLING	-	4	Enquire
12A699	LR025005	SENSOR - ENGINE KNOCK	LR025005 SENSOR - ENGINE KNOCK	-	2	Enquire
12K073	LR038756	SENSOR - CRANKSHAFT POSITION - CPS	LR038756 SENSOR - CRANKSHAFT POSITION - CPS Sensor - Crankshaft Position - CPS	-	1	Enquire
6397	LR048491	DOWEL - PIN	LR048491 DOWEL - PIN 12.7 X 14.5MM, Clutch Housing To Transmission	-	2	Enquire

Haven't found what you're looking for?

View Cart / Checkout

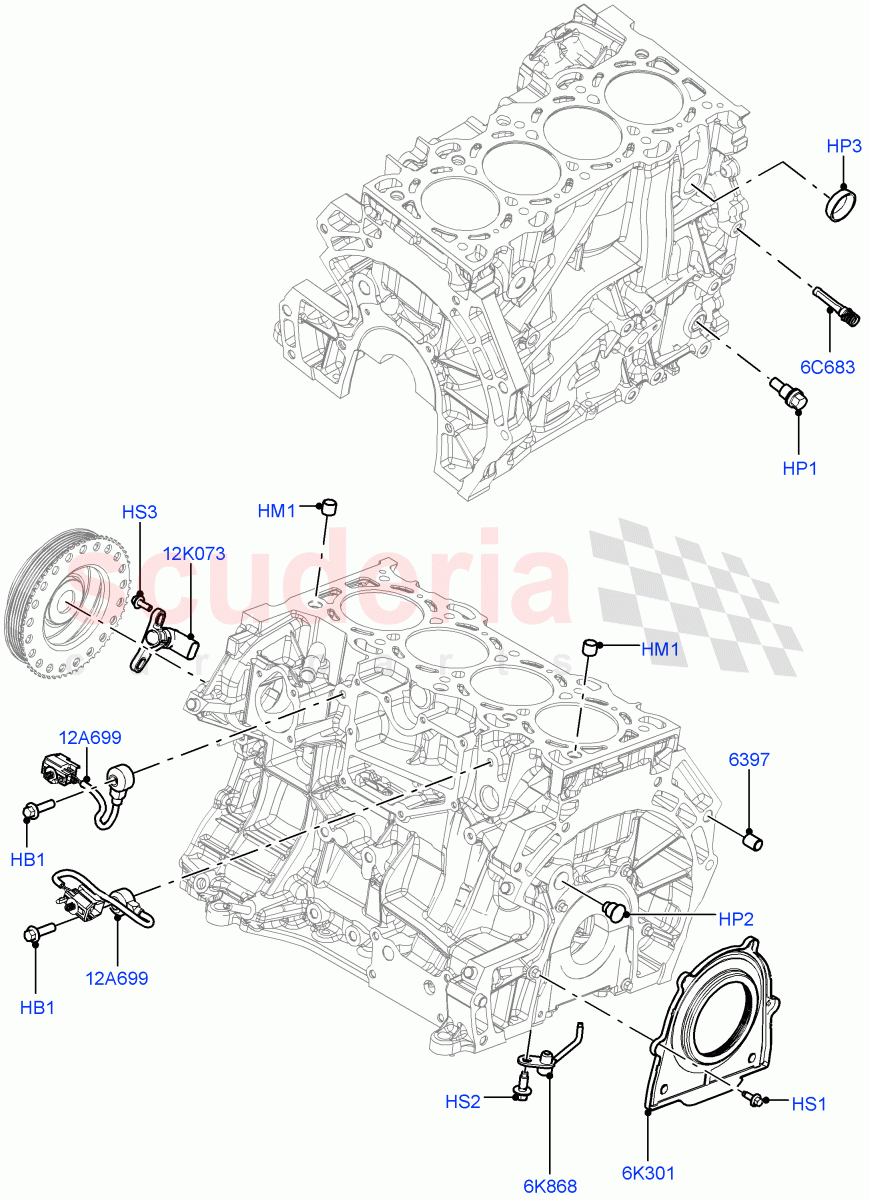

Cylinder Block And Plugs (2.0L 16V Tivct T/C 240Ps Petrol)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol GTDI]
