Name: Master Cylinder - Brake System
Rating: 5.0 (1 reviews)

Master Cylinder - Brake System of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

View All

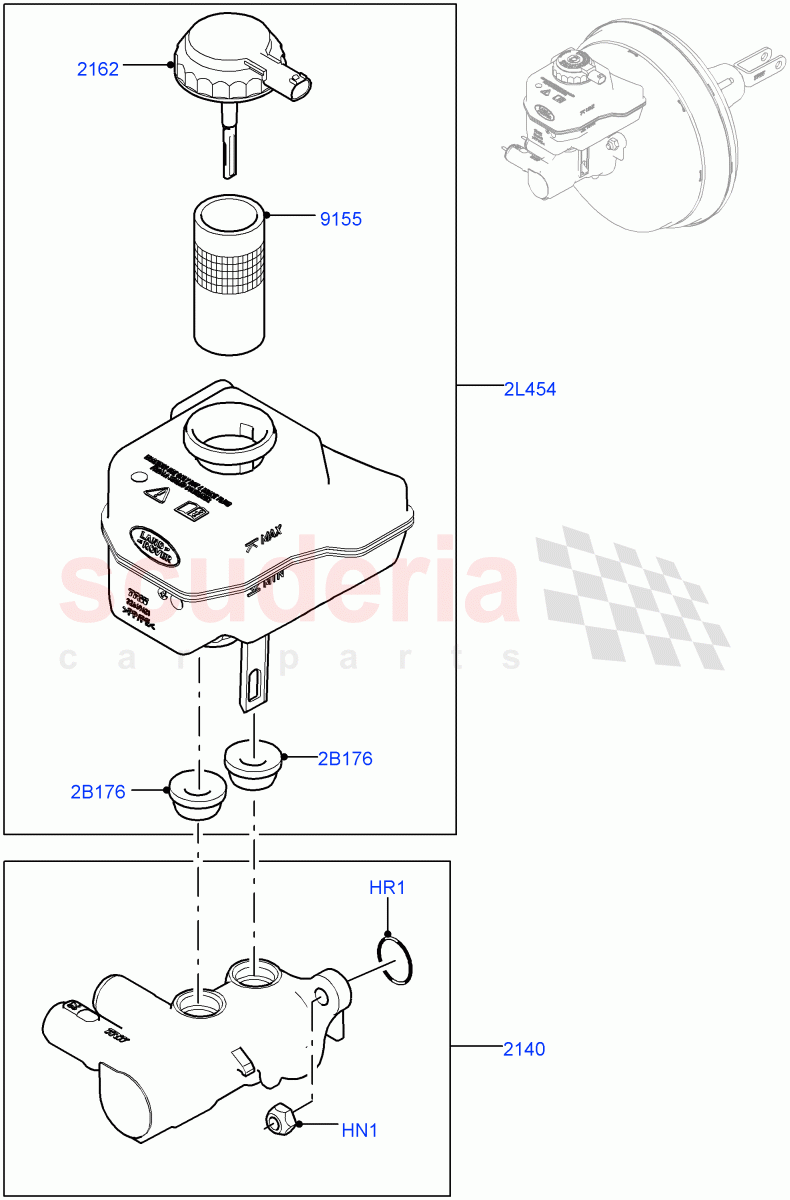

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Master Cylinder - Brake System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR012898	NUT - FLANGED	$1.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081598	O-RING	$3.09	To Order
	LR012972	O-RING	$4.03	To Order
	LR012972	O-RING	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033338	MASTER CYLINDER - BRAKE	$320.26	To Order
	LR048138	MASTER CYLINDER - BRAKE	$320.26	To Order
	LR048836	MASTER CYLINDER - BRAKE	$352.89	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR033340	CAP - FILLER	$52.05	To Order
	LR048838	Cap - Filler	Enquire	To Order
	LR091038	CAP - FILLER	$45.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038635	FILTER - BRAKE RESERVOIR	$10.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146955	SEAL	$5.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033628	RESERVOIR - BRAKE FLUID	$147.91	To Order
	LR048837	RESERVOIR - BRAKE FLUID	$93.72	To Order
	LR124816	RESERVOIR - BRAKE FLUID	$169.68	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	LR012898	NUT - FLANGED	LR012898 NUT - FLANGED M8	$1.90	2
HR1	LR081598	O-RING	LR081598 O-RING 8 Speed Auto Trans ZF 8HP45 / Brake Master Cylinder / From: HA000001	$3.09	1
HR1	LR012972	O-RING	LR012972 O-RING Brake Master Cylinder / To: GA999999	$4.03	1
HR1	LR012972	O-RING	LR012972 O-RING 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Brake Master Cylinder / From: HA000001	$4.03	1
2B176	LR146955	SEAL	LR146955 SEAL 8 Speed Auto Trans ZF 8HP76	$5.44	2
2L454	LR033628	RESERVOIR - BRAKE FLUID	LR033628 RESERVOIR - BRAKE FLUID 8 Speed Auto Trans ZF 8HP45 / To: KA536805	$147.91	1
2L454	LR048837	RESERVOIR - BRAKE FLUID	LR048837 RESERVOIR - BRAKE FLUID 8 Speed Auto Trans ZF 8HP70 HEV 4WD / From: FA000001	$93.72	1
2L454	LR124816	RESERVOIR - BRAKE FLUID	LR124816 RESERVOIR - BRAKE FLUID 8 Speed Auto Trans ZF 8HP45 / From: KA536806	$169.68	1
2140	LR033338	MASTER CYLINDER - BRAKE	LR033338 MASTER CYLINDER - BRAKE 8 Speed Auto Trans ZF 8HP45 / Brake / To: DA999999	$320.26	1
2140	LR048138	MASTER CYLINDER - BRAKE	LR048138 MASTER CYLINDER - BRAKE 8 Speed Auto Trans ZF 8HP45 / Brake / From: EA000001 / To: GA999999	$320.26	1
2140	LR048836	MASTER CYLINDER - BRAKE	LR048836 MASTER CYLINDER - BRAKE 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Brake / From: FA000001	$352.89	1
2140	LR081597	MASTER CYLINDER - BRAKE	LR081597 MASTER CYLINDER - BRAKE 8 Speed Auto Trans ZF 8HP70 4WD / Brake / From: HA000001 / To: HA999999	$300.09	1
2140	LR099178	MASTER CYLINDER - BRAKE	LR099178 MASTER CYLINDER - BRAKE 8 Speed Auto Trans ZF 8HP45 / Brake / From: JA000001	$241.15	1
2162	LR033340	CAP - FILLER	LR033340 CAP - FILLER 8 Speed Auto Trans ZF 8HP45 / Reservoir / To: GA999999	$52.05	1
2162	LR048838	Cap - Filler	LR048838 Cap - Filler 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Reservoir / From: FA000001	-	1	Enquire
2162	LR091038	CAP - FILLER	LR091038 CAP - FILLER 8 Speed Auto Trans ZF 8HP45 / Reservoir / From: HA000001	$45.77	1
9155	LR038635	FILTER - BRAKE RESERVOIR	LR038635 FILTER - BRAKE RESERVOIR Brake Fluid	$10.74	1
