Front Brake Pipes (2.0L AJ200P Hi PHEV, LHD) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Front Brake Pipes (2.0L AJ200P Hi PHEV, LHD) ((V) FROMJA000001)

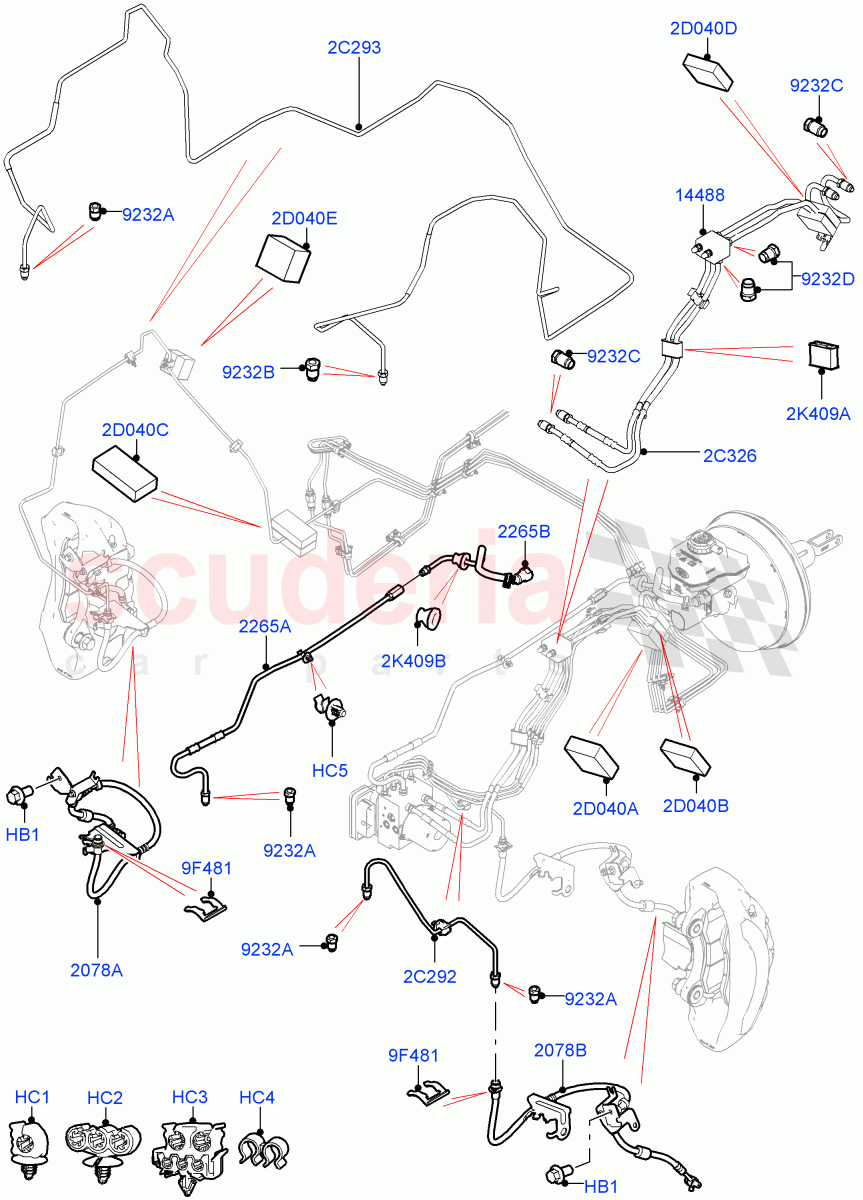

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033441	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033442	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033443	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033450	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137522	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047052	CONNECTOR - PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113969	HOSE - BRAKE	Enquire	To Order
	LR113969	HOSE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081602	HOSE - BRAKE	Enquire	To Order
	LR113970	HOSE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100710	PIPE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100728	PIPE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033371	TUBE - BRAKE	Enquire	To Order
	LR155147	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033386	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100769	TUBE - BRAKE	Enquire	To Order
	LR117562	TUBE - BRAKE	Enquire	To Order
	LR154813	TUBE - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033452	NUT - CONNECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033453	NUT - CONNECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033454	NUT - CONNECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033455	NUTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EJP7813	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033408	SEAL - BRAKE TUBE FOAM TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033411	SEAL - BRAKE TUBE FOAM TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033413	SEAL - BRAKE TUBE FOAM TYPE	Enquire	To Order
	LR154807	SEAL - BRAKE TUBE FOAM TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033416	SEAL - BRAKE TUBE FOAM TYPE	Enquire	To Order
	LR154808	SEAL - BRAKE TUBE FOAM TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033417	SEAL - BRAKE TUBE FOAM TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033427	GROMMET - BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052793	GROMMET - BRAKE PIPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108166	BOLT	FS108166 BOLT Hexagonal Head, M8 X 16MM / From: JA000001	-	4	Enquire
HC1	LR033441	CLIP - SPECIAL	LR033441 CLIP - SPECIAL 5MM, Single / From: JA000001	-	7	Enquire
HC2	LR033442	CLIP - SPECIAL	LR033442 CLIP - SPECIAL 5MM, Triple / From: JA000001	-	7	Enquire
HC3	LR033443	CLIP - SPECIAL	LR033443 CLIP - SPECIAL 5 Way, 5MM, 8MM / From: JA000001	-	1	Enquire
HC4	LR033450	CLIP - SPECIAL	LR033450 CLIP - SPECIAL 8MM, Double / From: JA000001	-	2	Enquire
HC5	LR137522	CLIP	LR137522 CLIP LH, Single / From: JA000001	-	1	Enquire
2C292	LR033371	TUBE - BRAKE	LR033371 TUBE - BRAKE Modulator To LH Front / From: JA000001 / To: MA449725	-	1	Enquire
2C292	LR155147	TUBE - BRAKE	LR155147 TUBE - BRAKE Modulator To LH Front / From: MA449726	-	1	Enquire
2C293	LR033386	TUBE - BRAKE	LR033386 TUBE - BRAKE Modulator To RH Front / From: JA000001	-	1	Enquire
2C326	LR100769	TUBE - BRAKE	LR100769 TUBE - BRAKE Modulator To Brake Master Cylinder / From: JA000001 / To: JA508665	-	1	Enquire
2C326	LR117562	TUBE - BRAKE	LR117562 TUBE - BRAKE Modulator To Brake Master Cylinder / From: JA508666 / To: MA449725	-	1	Enquire
2C326	LR154813	TUBE - BRAKE	LR154813 TUBE - BRAKE Modulator To Brake Master Cylinder / From: MA449726	-	1	Enquire
2D040A	LR033408	SEAL - BRAKE TUBE FOAM TYPE	LR033408 SEAL - BRAKE TUBE FOAM TYPE 5MM / From: JA000001	-	1	Enquire
2D040B	LR033411	SEAL - BRAKE TUBE FOAM TYPE	LR033411 SEAL - BRAKE TUBE FOAM TYPE 5MM / From: JA000001	-	1	Enquire
2D040C	LR033413	SEAL - BRAKE TUBE FOAM TYPE	LR033413 SEAL - BRAKE TUBE FOAM TYPE 5MM / From: JA000001 / To: MA449725	-	2	Enquire
2D040C	LR154807	SEAL - BRAKE TUBE FOAM TYPE	LR154807 SEAL - BRAKE TUBE FOAM TYPE 5MM / From: MA449726	-	2	Enquire
2D040D	LR033416	SEAL - BRAKE TUBE FOAM TYPE	LR033416 SEAL - BRAKE TUBE FOAM TYPE 8MM / From: JA000001 / To: MA449725	-	2	Enquire
2D040D	LR154808	SEAL - BRAKE TUBE FOAM TYPE	LR154808 SEAL - BRAKE TUBE FOAM TYPE 8MM / From: MA449726	-	2	Enquire
2D040E	LR033417	SEAL - BRAKE TUBE FOAM TYPE	LR033417 SEAL - BRAKE TUBE FOAM TYPE Blank / From: JA000001	-	2	Enquire
2K409A	LR033427	GROMMET - BRAKE PIPE	LR033427 GROMMET - BRAKE PIPE 8MM, Double / From: JA000001	-	1	Enquire
2K409B	LR052793	GROMMET - BRAKE PIPE	LR052793 GROMMET - BRAKE PIPE Single / From: JA000001	-	1	Enquire
9F481	EJP7813	CLIP - HOSE	EJP7813 CLIP - HOSE Brake Hose / From: JA000001	-	2	Enquire
2078A	LR113969	HOSE - BRAKE	LR113969 HOSE - BRAKE RH, Includes Bracket, To Caliper / From: JA000001 / To: KA517591	-	1	Enquire
2078A	LR113969	HOSE - BRAKE	LR113969 HOSE - BRAKE RH, Includes Bracket, To Caliper / From: KA517592	-	1	Enquire
2078B	LR081602	HOSE - BRAKE	LR081602 HOSE - BRAKE LH, Includes Bracket, To Caliper / From: JA000001 / To: KA517591	-	1	Enquire
2078B	LR113970	HOSE - BRAKE	LR113970 HOSE - BRAKE LH, Includes Bracket, To Caliper / From: KA517592	-	1	Enquire
2265A	LR100710	PIPE - BRAKE	LR100710 PIPE - BRAKE Lower, Reservoir To Modulator / From: JA000001	-	1	Enquire
2265B	LR100728	PIPE - BRAKE	LR100728 PIPE - BRAKE Reservoir To Modulator, Upper / From: JA000001	-	1	Enquire
9232A	LR033452	NUT - CONNECTING	LR033452 NUT - CONNECTING M10 / From: JA000001	-	4	Enquire
9232B	LR033453	NUT - CONNECTING	LR033453 NUT - CONNECTING M12 / From: JA000001	-	1	Enquire
9232C	LR033454	NUT - CONNECTING	LR033454 NUT - CONNECTING M14 / From: JA000001	-	4	Enquire
9232D	LR033455	NUTS	LR033455 NUTS M12 / From: JA000001	-	4	Enquire
14488	LR047052	CONNECTOR - PIPE	LR047052 CONNECTOR - PIPE 6 Way, Bleed Block / From: JA000001	-	1	Enquire
