Fuel Tank & Related Parts (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR093364 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
FN106042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR106356 TANK - FUEL Enquire To Order
LR117105 TANK - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
202123475 CAP - FUEL TANK FILLER Enquire To Order
LR138720 CAP - FUEL TANK FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR101055 PIPE - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR106358 SPACER - STRIKER Enquire To Order
Photo Part No Description Price (each) Stock
LR106359 SPACER - STRIKER Enquire To Order
Photo Part No Description Price (each) Stock
LR106357 TUBE - FUEL Enquire To Order
LR117106 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR102211 TUBE - VENTILATION Enquire To Order
Photo Part No Description Price (each) Stock
LR101026 TUBE - VENTILATION Enquire To Order
View All

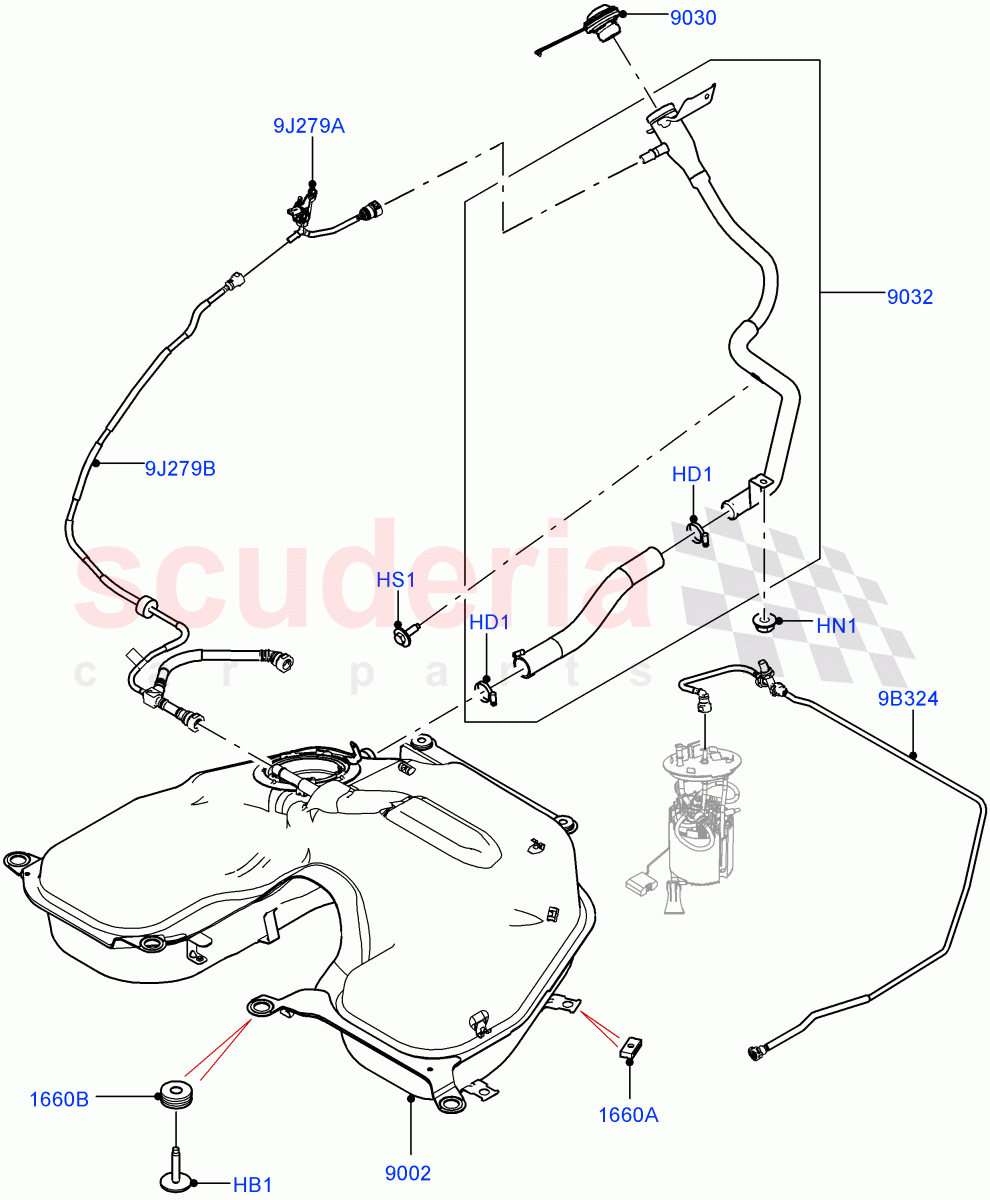

Fuel Tank & Related Parts (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR093364
BOLT
Hexagonal Head, M10 X 50MM / From: JA000001 		- 4 Enquire
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: JA000001 		- 2 Enquire
HN1 FN106042
NUT
Filler Neck, Hexagonal Head, M6 / From: JA000001 		- 2 Enquire
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: JA000001 		- 1 Enquire
9B324 LR106357
TUBE - FUEL
Includes Fuel Pressure Sensor / From: JA000001 / To: JA398276 		- 1 Enquire
9B324 LR117106
TUBE - FUEL
Includes Fuel Pressure Sensor / From: JA398277 		- 1 Enquire
9J279A LR102211
TUBE - VENTILATION
Includes Fuel Pressure Sensor, Upper / From: JA000001 		- 1 Enquire
9J279B LR101026
TUBE - VENTILATION
Fuel Tank Ventilation Pipe, Lower / From: JA000001 		- 1 Enquire
1660A LR106358
SPACER - STRIKER
Aero Shield Isolator / From: JA000001 		- 4 Enquire
1660B LR106359
SPACER - STRIKER
From: JA000001 		- 6 Enquire
9002 LR106356
TANK - FUEL
From: JA000001 / To: JA398276 		- 1 Enquire
9002 LR117105
TANK - FUEL
From: JA398277 		- 1 Enquire
9030 202123475
CAP - FUEL TANK FILLER
From: JA000001 / To: MA419659 		- 1 Enquire
9030 LR138720
CAP - FUEL TANK FILLER
From: MA419660 		- 1 Enquire
9032 LR101055
PIPE - FUEL FILLER
From: JA000001 		- 1 Enquire
