Carbon Canister (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Carbon Canister (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 Enquire To Order
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR004596 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYP501050 SCREW - PAN - TORX Enquire To Order
Photo Part No Description Price (each) Stock
LR117394 VALVE - FUEL VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR174757 VALVE - CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR068424 RESERVOIR - FUEL VAPOUR SYSTEM Enquire To Order
LR155135 RESERVOIR - FUEL VAPOUR SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR155089 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR113590 TUBE - VENTILATION Enquire To Order
Photo Part No Description Price (each) Stock
LR101028 TUBE - FUEL VAPOUR Enquire To Order
LR173148 Tube - Fuel Vapour Enquire To Order
Photo Part No Description Price (each) Stock
LR102055 MOUNTING - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR060302 HOSE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR037482 HOSE - FUEL VAPOUR Enquire To Order
View All

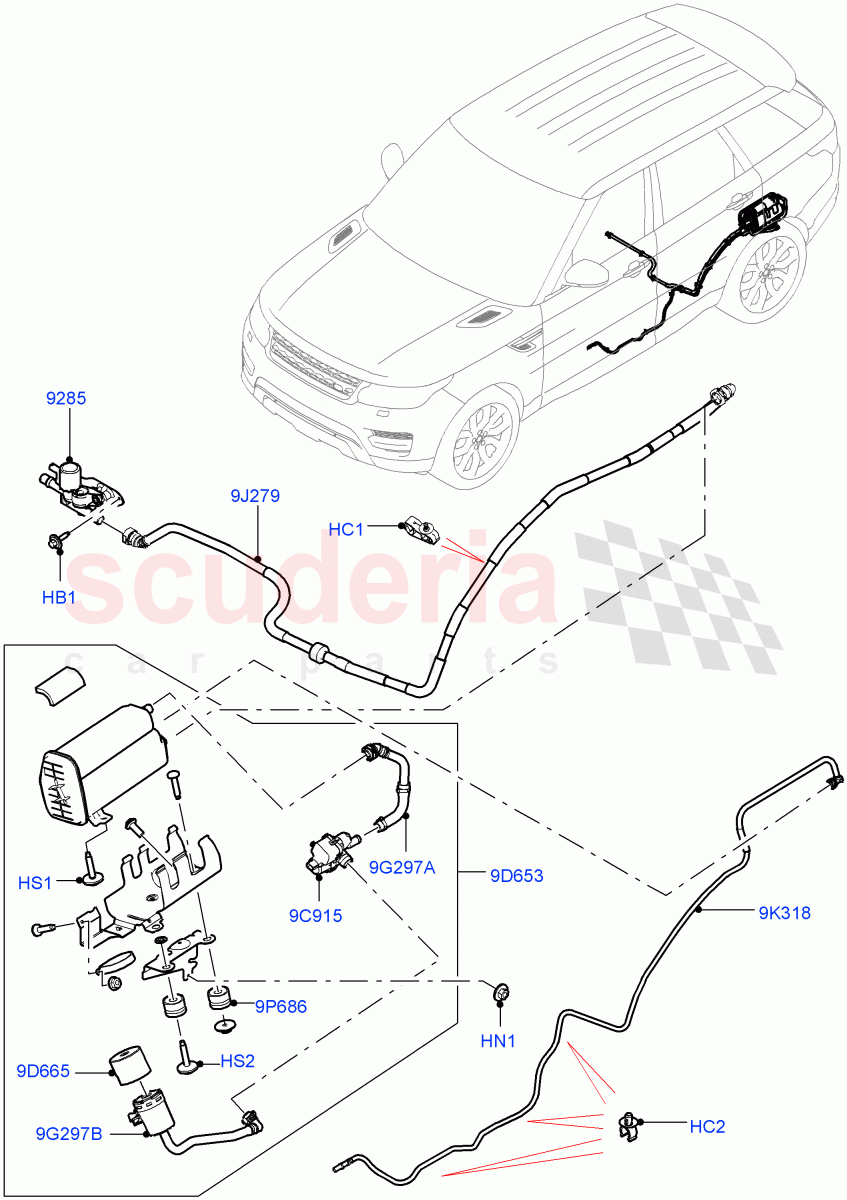

Carbon Canister (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Hexagonal Head, M6 X 24MM / From: JA000001 		- 2 Enquire
HC1 LR094032
CLIP - HOSE
Plastic / From: JA000001 		- 4 Enquire
HC2 LR004596
CLIP
12 x 7.8X.8/4, Plastic / From: JA000001 		- 3 Enquire
HN1 RYH500310
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer / From: JA000001 		- 2 Enquire
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30, Screw And Washer / From: JA000001 		- 1 Enquire
HS2 RYP501050
SCREW - PAN - TORX
M6 X 25MM, Torx / From: JA000001 		- 4 Enquire
9C915 LR174757
VALVE - CONTROL
Pump - Diagnostic Monitoring Tank Leakage / From: JA000001 		- 1 Enquire
9D653 LR068424
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: JA000001 / To: MA444815 		- 1 Enquire
9D653 LR155135
RESERVOIR - FUEL VAPOUR SYSTEM
Charcoal Cannister, With Bracket / From: MA444816 		- 1 Enquire
9D665 LR155089
BRACKET
From: MA444816 		- 1 Enquire
9G297A LR060302
HOSE - FUEL
Canister vent / From: JA000001 		- 1 Enquire
9G297B LR037482
HOSE - FUEL VAPOUR
Canister vent / From: JA000001 		- 1 Enquire
9J279 LR113590
TUBE - VENTILATION
From: JA000001 		- 1 Enquire
9K318 LR101028
TUBE - FUEL VAPOUR
Fuel Vapor Cannister Purge - Outlet / From: JA000001 / To: NA472637 		- 1 Enquire
9K318 LR173148
Tube - Fuel Vapour
Fuel Vapor Cannister Purge - Outlet / From: NA472638 		- 1 Enquire
9P686 LR102055
MOUNTING - RUBBER
From: JA000001 		- 2 Enquire
9285 LR117394
VALVE - FUEL VAPOUR
Assembly, Fuel Tank Isolation Valve / From: JA000001 		- 1 Enquire
