Find Your Part

Radiator/Coolant Overflow Container (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Radiator/Coolant Overflow Container (Solihull Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC...

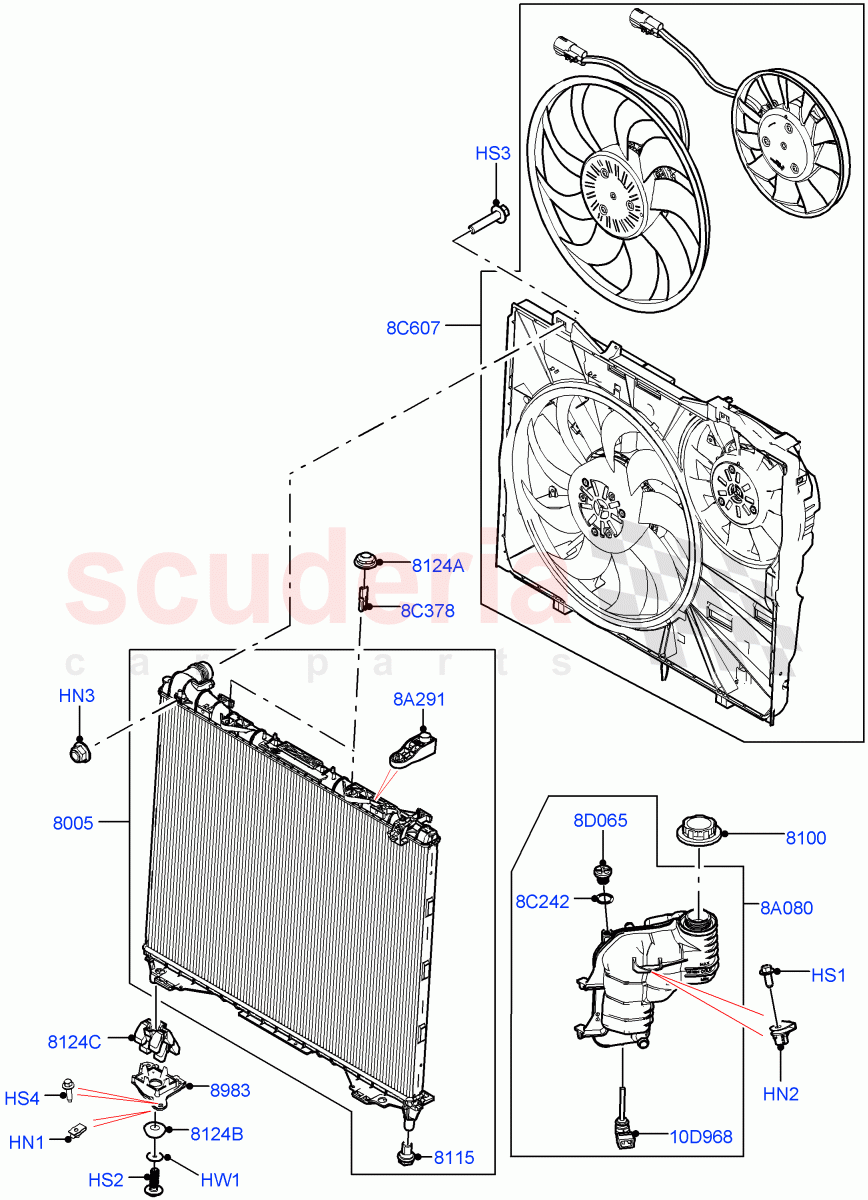

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038068	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040736	NUT - SQUARE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500170	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038052	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033039	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYF500090	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090625	RADIATOR	Enquire	To Order
	LR162120	RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR176860	CAP - OVERFLOW CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063055	PLUG - RADIATOR DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082543	BRACKET - SUPPORT	Enquire	To Order
	LR082542	BRACKET - SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PDI500012	INSULATOR - RADIATOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034569	INSULATOR - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034565	INSULATOR - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088547	TANK - RADIATOR OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142234	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007315	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034571	PIN - RADIATOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082549	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order
	LR125198	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order
	LR146154	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055301	VALVE - BLEEDER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	LR000053	NUT - FLANGED	LR000053 NUT - FLANGED M6 / From: JA000001	-	2	Enquire
HN2	LR038068	NUT - SPECIAL	LR038068 NUT - SPECIAL Expansion Tank, Nut U Spring M6 Push On / From: JA000001	-	1	Enquire
HN3	LR040736	NUT - SQUARE	LR040736 NUT - SQUARE M6, Square / From: JA000001	-	2	Enquire
HS1	BYP500170	SCREW	BYP500170 SCREW Hexagonal Head, M6 x 14MM / From: JA000001	-	1	Enquire
HS2	LR038052	SCREW	LR038052 SCREW 8 x 24MM, Torx / From: JA000001	-	2	Enquire
HS3	LR033039	SCREW AND WASHER - HEX HEAD	LR033039 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 x 19MM / From: JA000001	-	2	Enquire
HS4	RYG500220	SCREW	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: JA000001	-	6	Enquire
HW1	VYF500090	WASHER	VYF500090 WASHER 8.4 X 31 X 1.6 / From: JA000001	-	2	Enquire
8A080	LR088547	TANK - RADIATOR OVERFLOW	LR088547 TANK - RADIATOR OVERFLOW From: JA000001	-	1	Enquire
8A291	LR142234	BRACKET - RADIATOR	LR142234 BRACKET - RADIATOR Upper / From: JA000001	-	1	Enquire
8C242	LR007315	SEAL	LR007315 SEAL Bleeder Screw / From: JA000001	-	1	Enquire
8C378	LR034571	PIN - RADIATOR MOUNTING	LR034571 PIN - RADIATOR MOUNTING Radiator Mounting, Upper / From: JA000001	-	2	Enquire
8C607	LR082549	MOTOR AND FAN - ENGINE COOLING	LR082549 MOTOR AND FAN - ENGINE COOLING From: JA000001 / To: KA550772	-	1	Enquire
8C607	LR125198	MOTOR AND FAN - ENGINE COOLING	LR125198 MOTOR AND FAN - ENGINE COOLING From: KA550773 / To: MA423715	-	1	Enquire
8C607	LR146154	MOTOR AND FAN - ENGINE COOLING	LR146154 MOTOR AND FAN - ENGINE COOLING From: MA423716	-	1	Enquire
8D065	LR055301	VALVE - BLEEDER SCREW	LR055301 VALVE - BLEEDER SCREW Bleeder Screw / From: JA000001	-	1	Enquire
10D968	PCJ500030	SENSOR - COOLANT LEVEL	PCJ500030 SENSOR - COOLANT LEVEL From: JA000001	-	1	Enquire
8005	LR090625	RADIATOR	LR090625 RADIATOR From: JA000001 / To: MA453162	-	1	Enquire
8005	LR162120	RADIATOR	LR162120 RADIATOR From: MA453163	-	1	Enquire
8100	LR176860	CAP - OVERFLOW CONTAINER	LR176860 CAP - OVERFLOW CONTAINER From: JA000001	-	1	Enquire
8115	LR063055	PLUG - RADIATOR DRAIN	LR063055 PLUG - RADIATOR DRAIN From: JA000001	-	1	Enquire
8124A	PDI500012	INSULATOR - RADIATOR MOUNTING	PDI500012 INSULATOR - RADIATOR MOUNTING Radiator Mounting, Top / From: JA000001	-	2	Enquire
8124B	LR034569	INSULATOR - RADIATOR SUPPORT	LR034569 INSULATOR - RADIATOR SUPPORT Lower / From: JA000001	-	2	Enquire
8124C	LR034565	INSULATOR - RADIATOR SUPPORT	LR034565 INSULATOR - RADIATOR SUPPORT Radiator Support / From: JA000001	-	2	Enquire
8983	LR082543	BRACKET - SUPPORT	LR082543 BRACKET - SUPPORT RH / From: JA000001	-	1	Enquire
8983	LR082542	BRACKET - SUPPORT	LR082542 BRACKET - SUPPORT LH / From: JA000001	-	1	Enquire
